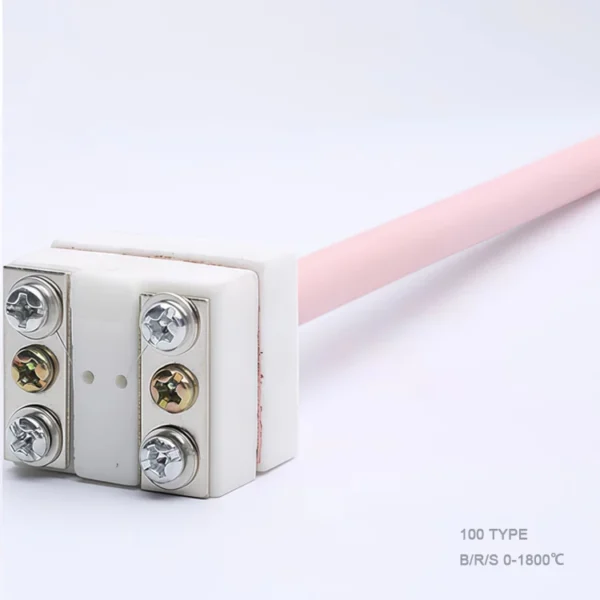

0-1800 Degree Platinum Rhodium Thermocouple Type S/R/B Ceramic Kiln Thermocouples With Ceramic Tube for Furnace
0-1800 Degree Platinum Rhodium Thermocouple Type S/R/B Ceramic Kiln Thermocouples With Ceramic Tube for Furnace
Descrição
0-1800 Degree Platinum Rhodium Thermocouple Type S/R/B Ceramic Kiln Thermocouples With Ceramic Tube for Furnace
Descrição do produto
Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,forno a vácuo, matallurgy furnace and calcination of fire-proof materials, cerâmica. It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc..
Especificação
Nome do Produto | Termopar de platina e ródio |
Tipo | S/R/B |
Material | 99% tubo de corindo de alta temperatura, Ou tubo de liga de alta temperatura GH3039 ou tubo de proteção SIC |
Tubo de aço inoxidável | DE φ22mm |
Tubo cerâmico | DE φ16mm |
ConductorMaterial | Tipo | Graduação | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WR | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J. | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Embalagem & Entrega
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
