230v Immersion washing machine heating element for washing machine
Description

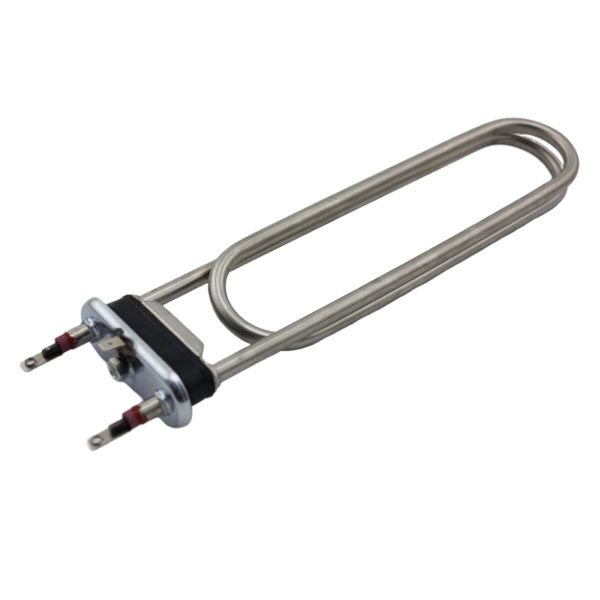

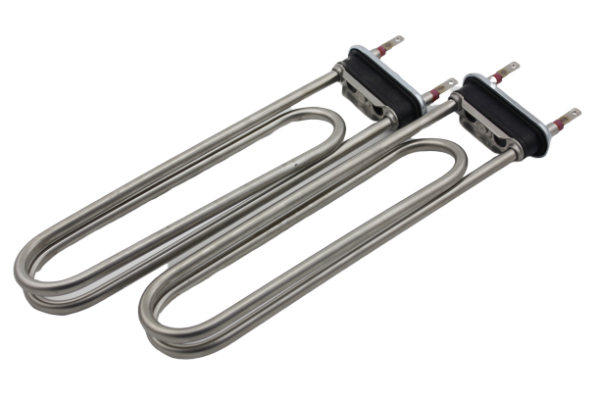

230v Immersion washing machine heating element for washing machine
| Specification parameter | Detail | Remark |
| TubeMaterials | SS316 | Materials can be changed to be ss321,ss304,incoloy804,incoloy800 as requested |
| Voltage/Wattage | 230V/3600W | Voltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10%. We also can produce 230V/1500W, 230V/1700W, 230V/1900W,230V/2000W… |
| Tube Diameter | 8.5mm | |
| MgO | A Grade | We can use other powder if requested |
| Resistance Wire | OCr25Al5 | or Ni80Cr20 |
| Terminal | SUS304 | Materials of terminal housing could be stainless iron,stainless steel if required |
| Leads | SUS304 | Materials of terminal piece could be stainless iron,stainless steel if required |
| Weight | 0.4kg | |
| Power Source | AC | |
| Shape | Double U | or as requested |
| Warranty | 2-5years | As requested |
| Usage | Washing machine |
Where are washing machine heating element use for?
How To Install washing machine heating element to heating water?
The frist, please cut off the power supply!!
Then open the shell and take a photo, record the wiring position.
↓
Replace the washing machine heating element.
FAQS.
1, Customer: You are factory or Trading company?
Yuling: We are factory! Here is our factory address: Qintong Industrial Area, Jiangyan District, Taizhou City, Jiangsu Province.
2, Customer: How do you inspect the elements before package?
Yuling: We always 100% QC before package.
3, Customer: Which items you are inspection?
Yuling: 1, External dimension. 2, Insulation Puncture Test (2000V 1amp). 3, Insulation resistance test (1000V).
4, Customer: Your elements sold to which countries?
Yuling: Our products active in the market of Germany, Australia, Switzerland, England, Cyprus, Canada, Brazil, Singapore, Korea, Russia, France, Nigeria, Janpan… Our products always got the praise from customers, whether price or quality.
5, Customer: If we find the elements has quality problems, I mean If, how will you do?
Yuling: The frist, our factory has ISO9001:2008 quality control certificate and we has been implemented. So, if you find any elements has quality problems please tell me, then we will 100% compensation with next order!
Packaging
The Shippment Of Green coated washing machine heating element to heating element:
If you need custom-made any heating element, please kindly specify:
We custom design various heating elements as your demands. Please kindly advise your specifications or drawings within following information:
1, Tube (Materials, diameter, length)
2, Wattage and voltage
3, Working environment and temperature
4, Type of terminal
5, Drawing of special type configuration
6, Special testing requirements before shipment
7, We like to get any feedback of finned heating elements from your side. We will try our best to do for you.
Additional information
| Brand | Yuling |
|---|---|
| Voltage/wattage | 230V/3600W |
| Diameter | 8.5mm |
| Magnesium oxide | A Grade waterproof |
| Warranty | 2-5years |
| MOQ | 500 |
| Faston terminal | Stainless steel 304 |
| Certification | CQC, CE, RoHS, ISO9001 |
| Leakage current | ≤0.5mA |
| Intension | 2000V/s |
