Tungsten-rhenium Thermocouple, Type C, Type D, WRe5/26, Molybdenum Tube, Tungsten Tube, Temperature Sensor, Vacuum Furnace 2300℃
Tungsten-rhenium Thermocouple, Type C, Type D, WRe5/26, Molybdenum Tube, Tungsten Tube, Temperature Sensor, Vacuum Furnace 2300℃
Description
Tungsten-rhenium Thermocouple, Type C, Type D, WRe5/26, Molybdenum Tube, Tungsten Tube, Temperature Sensor, Vacuum Furnace 2300℃
Product Description
Tungsten rhenium thermocouples have the characteristics of high sensitivity, high accuracy, and good stability, and can replace imported thermocouples from abroad. Solved the pain points of long delivery time and inconvenient after-sales maintenance for imported thermocouples. Currently, this series of products has been widely used in imported sintering furnaces such as Shimadzu furnaces and PVA furnaces, and has received unanimous praise from customers. The temperature measurement range of tungsten rhenium thermocouple is 0-2300 ℃, with three division marks: WR5/26, WR3/25, and WR5/26. The high-pressure resistant tungsten rhenium thermocouple is based on the high-temperature tungsten rhenium thermocouple, and an internal high-pressure impact resistant device is added, which can withstand a maximum pressure of 20Mpa. As a secondary protection device, it can effectively prevent furnace pressure leakage (high-temperature and high-pressure gas inside the furnace, high-temperature and high-speed substances inside the furnace, etc. rushing out of the furnace) in case of accidental damage to the thermocouple sleeve, avoiding equipment damage, product scrapping, personnel injury and other situations.
Specification
High temperature thermocouple | High temperature and high pressure thermocouple | |
Type | WR5/26 Commonly used | WR5/26 Commonly used |
WR3/25,WR5/20 custom | WR3/25,WR5/20 custom | |
Accuracy | ±1.0%|T| | ±1.0%|T| |
custom ±0.5%|T| | custom ±0.5%|T| | |
Temperature measurement range (℃) | 0-2200℃ | 0-2200℃ |
Pressure range (MPa) | / | 0-20MPa (at room temperature for pressure resistant devices) |
Material of protective tube | High temperature alloys, corundum, tungsten, molybdenum, tantalum, sapphire | Tungsten, molybdenum,tantalum, sapphire |

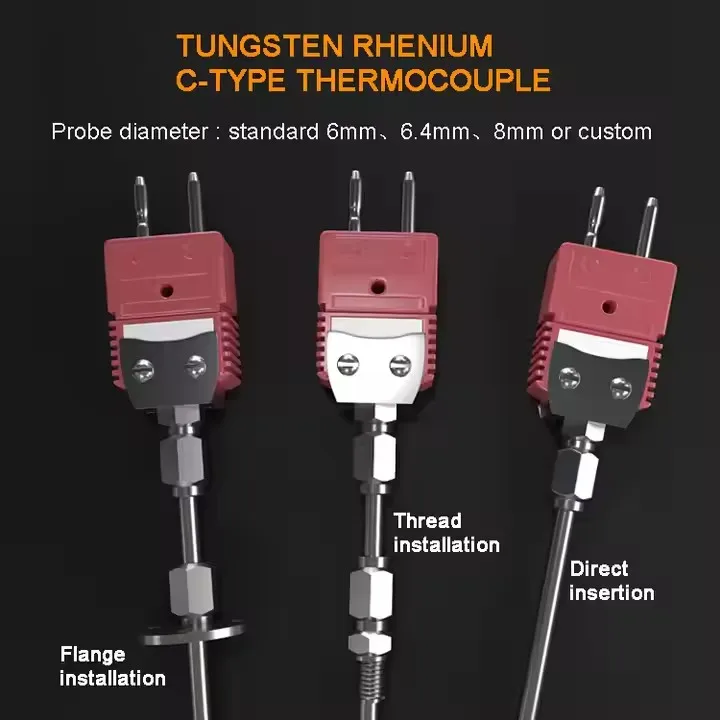

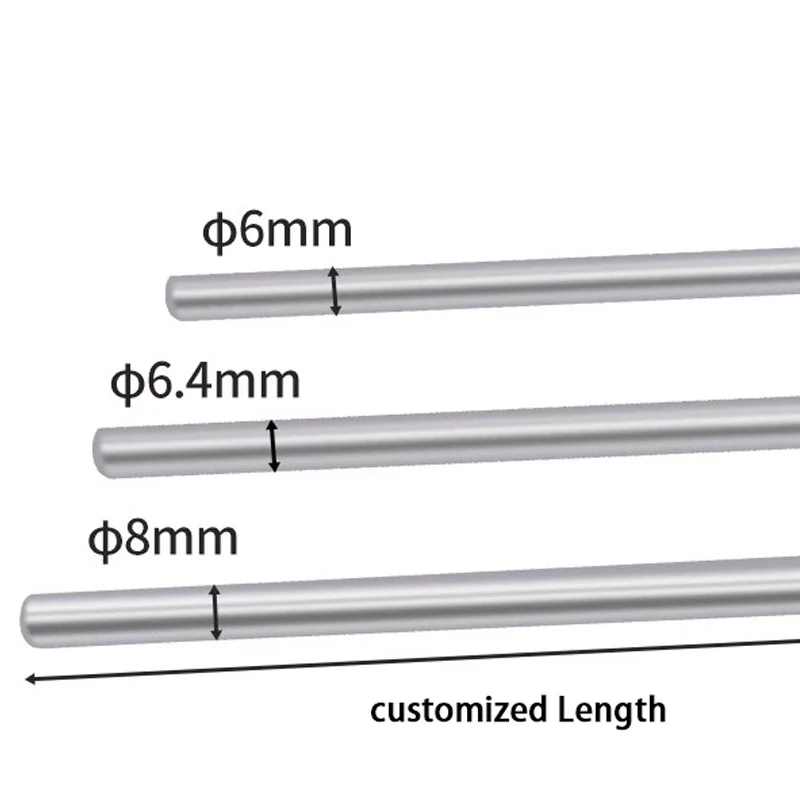

Protection tube diameter | φ3.2,φ4,φ6,φ6.35,φ8,φ9,φ10,φ12,φ16 | φ3.2,φ4,φ6,φ6.35,φ8,φ9 |
Usage environment | Inert atmosphere, vacuum, reducing atmosphere, etc | Inert atmosphere, vacuum, reducing atmosphere, etc |
Application industry | Powder metallurgy industry, hard alloy industry, new ceramic industries such as silicon carbide, silicon nitride, aluminumnitride, photovoltaic new energy, carbon based composite materials, semiconductor electronics industry, etc | Powder metallurgy industry, hard alloy industry, new ceramic industries such as silicon carbide, silicon nitride, aluminumnitride, photovoltaic new energy, carbon based composite materials, semiconductor electronics industry, etc |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Taizhou Yuling Electrical Appliance Co., Ltd. is a professional manufacturer engaged in tubular electric heating elements. Yuling has focused on this industry 42 years.
Since our establishment in 1996, we have been located in the renowned Qingtong Industrial Park, Jiangyan District, Taizhou City, Jiangsu Province. As a well-known supplier to leading brands such as Haier, Acuma, Sampux, Liren, and others, our products are of the highest quality and sold mainly in the European market.At Yuling, we take pride in our commitment to quality and safety, evidenced by our certifications such as the ISO9001:2008 international quality system, CQC product safety, CE, RoHS, and UL testing. We strive to maintain the highest standards in our products and services and continuously improve our production processes.
We look forward to the opportunity to work with you and provide you with the exceptional products and services that we are known for.
Since our establishment in 1996, we have been located in the renowned Qingtong Industrial Park, Jiangyan District, Taizhou City, Jiangsu Province. As a well-known supplier to leading brands such as Haier, Acuma, Sampux, Liren, and others, our products are of the highest quality and sold mainly in the European market.At Yuling, we take pride in our commitment to quality and safety, evidenced by our certifications such as the ISO9001:2008 international quality system, CQC product safety, CE, RoHS, and UL testing. We strive to maintain the highest standards in our products and services and continuously improve our production processes.
We look forward to the opportunity to work with you and provide you with the exceptional products and services that we are known for.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Oceania(50.00%),North America(30.00%),South America(10.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
Cartridge Heater, Open Coil Heater, Finned Heater, Strip Heater, Heating Element
4. why should you buy from us not from other suppliers?
1.More than 40 years experence
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,French
