240v triple clip 3KW/5.5KW/6KW beer brewing water heating element

240v triple clip 3KW/5.5KW/6KW beer brewing water heating element

Category:

Description

240v triple clip 3KW/5.5KW/6KW beer brewing water heating element
Product Description
beer brewing
beer brewing
Submerged corrugated folded brewing pipe heater elements are widely used in various heating equipment. As a standardized product, especially suitable for the heating needs of liquid media such as water, the element is folded to minimize length and maximize the heating surface. Uniform heat distribution, long service life, suitable for a variety of heaters.
Specification parameter
Detail
Remark
Sheath Material
SUS304
Materialscan be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested
Voltage/wattage
240v/4500w
Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10%
Tube Diameter
8.5mm/0.33″
Tube diameter can be customized as required
Weight
310g
Screw thread
1″
Other thread can be made if required
MgO
A
We can use other powder if requested
Resistance wire
Ni80Cr20
Or OCr25Al5
Plastic shell
Nylon
Temperature resistance 160℃
Leads
Stainless steel
Materials of terminal piece could be stainless iron,stainless steel if required
Faston Terminal
Nickel plated iron
Material of terminal housing could be stainless iron,stainless steel if required
≥1000MΩ(cold condition)
Leak current
≤0.5mA
Density
6.6W/CM2
Usage
electric water heater, brewery
Warranty
3-5 years
Products Application
beer brewing

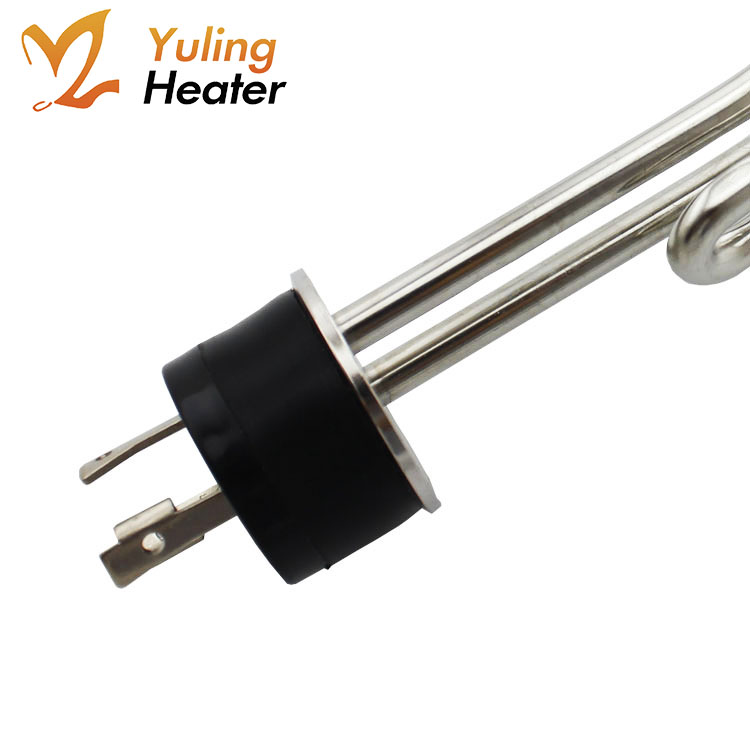

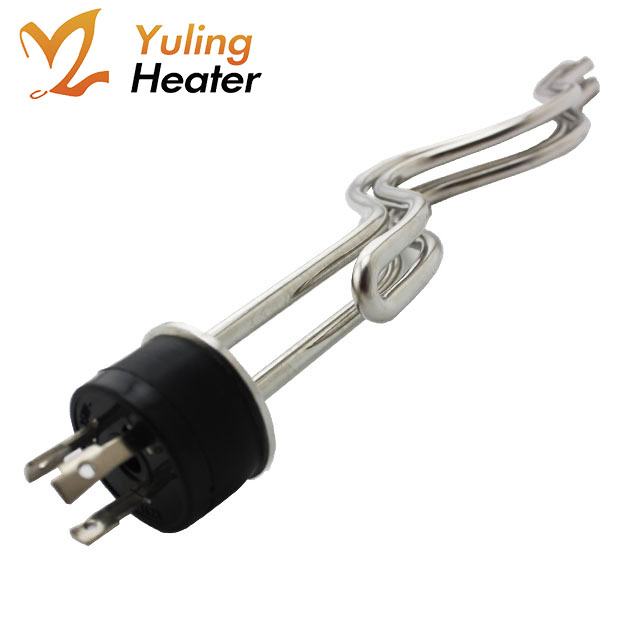

Tri-clamp Foldback Heating Element

With 3-wire electric lock plug, ground to ensure safety.
beer brewing

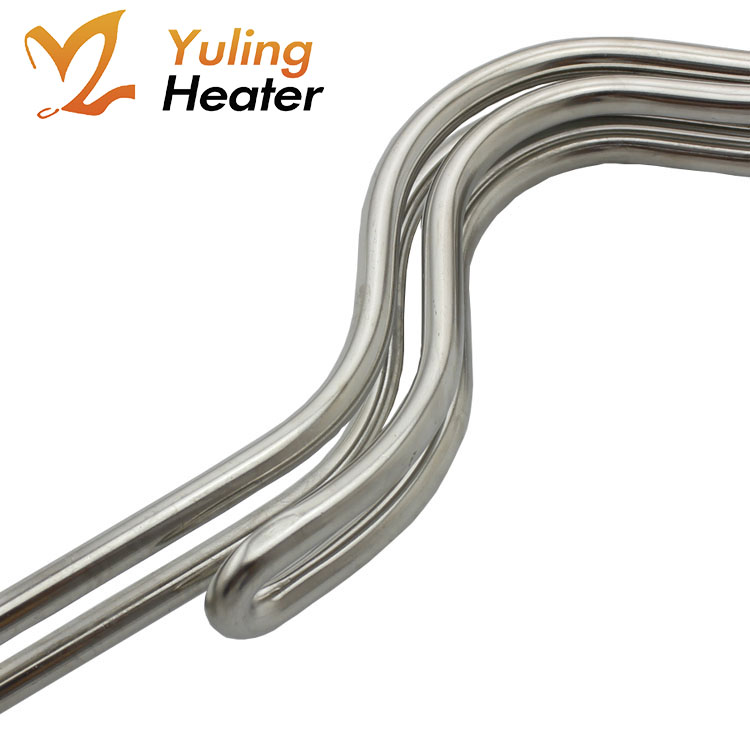

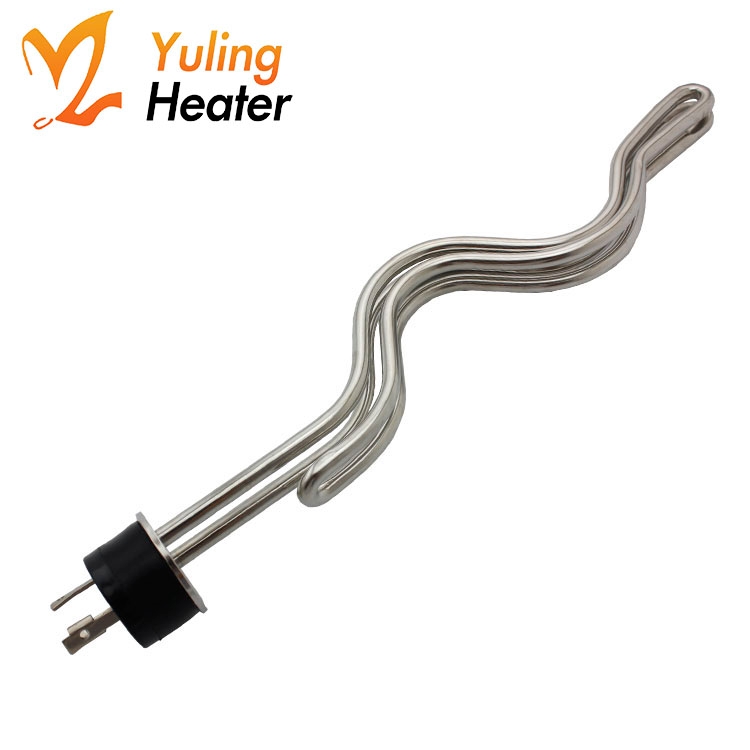

Wave heating elemenet

The element is folded to minimize length and maximize heating surface. Uniform heat distribution, long service life, suitable for a variety of heaters.
beer brewingExcellent manufacturing process
This water heater element is manufactured using advanced manufacturing processes. After bending the pipe, it is die-cast to make its surface neat and beautiful, no burrs and longer life.
Application
beer brewing
Customer Evaluation
beer brewing
Packing & Delivery
beer brewing
beer brewing
Plastic bag & Carton box
FAQ
1.Q: Can we use our own forwarder?
A: Of course. We can ship it to them.



2. Q: What are the terms of payment?
A: Telegraphic transfer, 30% deposit before production and the balance before delivery. We can also accept Alibaba Trade guarantee Form.

3. Q: How do I place an order?
A: Please send your order to us by email and we will confirm with you. Before quotation, we would like to confirm the product information with you, such as voltage, wattage, size and quantity. If you have detailed drawings, don’t forget to send them to us. In any case, please contact us directly via email or online message.

4. Q: How do we guarantee quality?
A: We strictly follow the quality management standards of production; Check the workshop every 2 hours; And has its own research and development team and laboratory.

5. Q: What can you buy from us?
A: Electrical appliances (i.e. hot heaters, fin heaters, oven heating elements, circulating heaters) and related products;
If there are other needs, we can also help customers purchase.
