High-temperature Stainless Steel Double Float Ball Liquid Level Switch Water Level Controller Adjustable Water Level

High-temperature Stainless Steel Double Float Ball Liquid Level Switch Water Level Controller Adjustable Water Level


Category:

Description

High-temperature Stainless Steel Double Float Ball Liquid Level Switch Water Level Controller Adjustable Water Level
Product Description
The stainless steel float switch is a liquid level control component designed based on the principle of buoyancy. Its main body is meticulously crafted from high-quality 304/316L stainless steel. The sturdy and durable stainless steel casing not only endows the product with excellent anti-corrosion and anti-rust performance, but also enables it to withstand harsh working environments, maintaining stable operation under complex working conditions such as high temperatures, high pressures, and strong acids and alkalis. The product is equipped with highly sensitive microswitches and high-quality magnetic ring components inside. The displacement of the float ball as the liquid level changes triggers the switch action, achieving precise monitoring and automatic control of the liquid level.

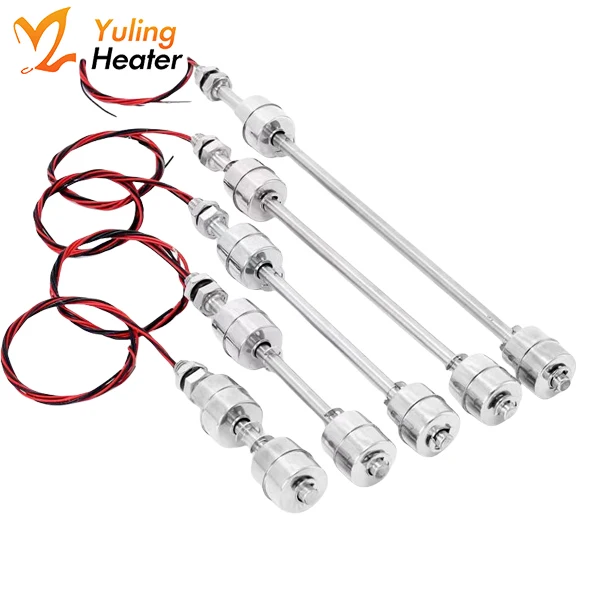

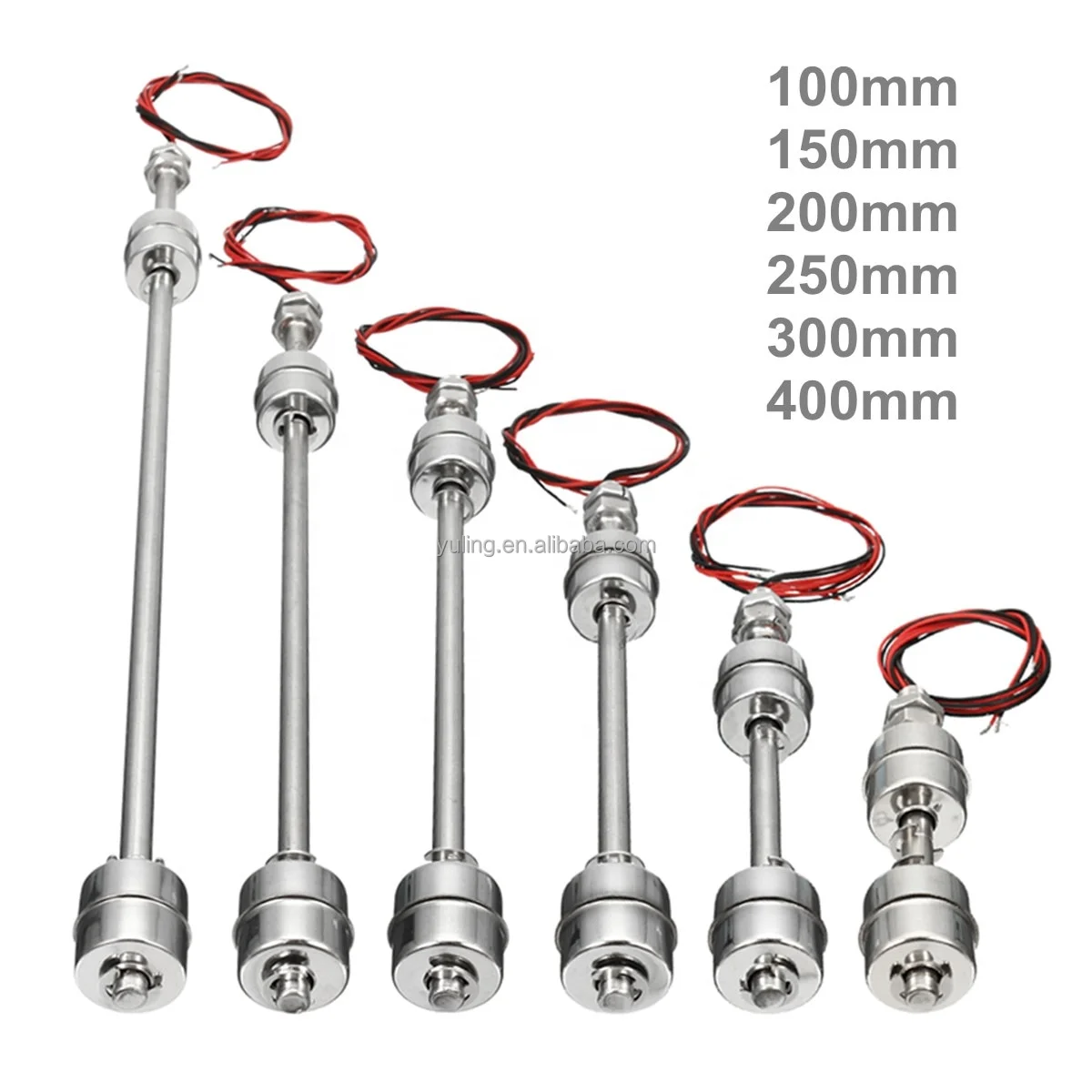

Stainless Steel Double Float Ball Liquid Level Switch
Stainless Steel Double Float Ball Liquid Level Switch
Stainless Steel Double Float Ball Liquid Level Switch

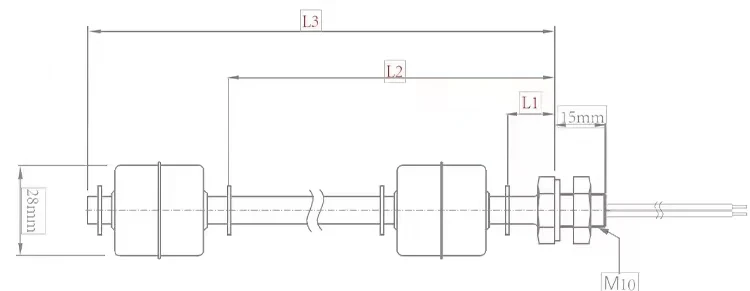

Specification
Stainless Steel Double Float Ball Liquid Level Switch
Rod length
L1
L2
L3
Control range
100mm
10mm
55mm
100mm
55mm
150mm
20mm
103mm
150mm
90mm
200mm
20mm
155mm
200mm
145mm
225mm
83mm
178mm
225mm
105mm
250mm
20mm
200mm
250mm
187mm
300mm
30mm
250mm
300mm
220mm
400mm
50mm
357mm
400mm
315mm
500mm
50mm
450mm
500mm
405mm
600mm
50mm
550mm
600mm
510mm
700mm
100mm
650mm
700mm
560mm
800mm
100mm
750mm
800mm
660mm
900mm
100mm
850mm
900mm
760mm
1m
100mm
950mm
1000mm
860mm
1.2m
200mm
1150mm
1200mm
960mm
Stainless Steel Double Float Ball Liquid Level Switch
Instrument Wiring
Stainless Steel Double Float Ball Liquid Level Switch
Packing & Delivery
Stainless Steel Double Float Ball Liquid Level Switch
