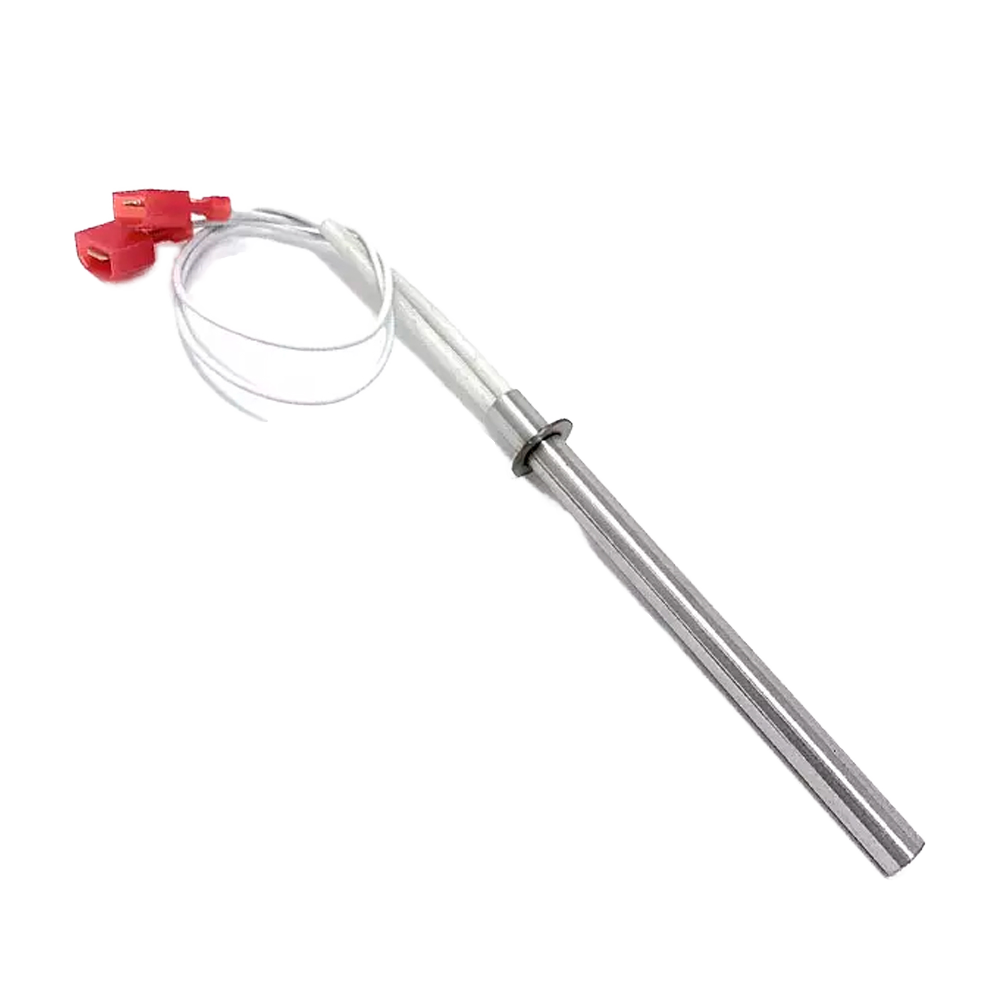

Heatilator SRV7000 462 Pellet Stove Igniter High Density Heater Igniter for a Pellet Stove Applicable for Home Use and Hotels

SRV7000 462


Category:

Description

Heatilator srv7000 462 Pellet Stove Igniter High Density Heater Igniter for a Pellet Stove Applicable for Home Use and Hotels
Product Description
Electric heater cartridge is made of MgO powder and MgO tube, ceramic cap, resistance wire(NiCr2080), High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
SRV7000 462

Advantages and Datas

internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.external wiring: high temperature resistance, uniform heating and high thermal conductivity.
Resistance heating wire
NiCr 80/20 wire
Sheath
stainless steel 304,321,316, Incoloy 800, Incoloy 840
Tube diameter
3mm-30mm
Tube length
min is 15mm max is 3meter.
Wattage Tolerance
+5%, -10%
Resistance tolerance
+10%, -5%
Length tolerance
±1 mm
Diameter tolerance
± 0.02mm
Standard Cold Zone
5-10mm
Thermocouple Location
type J / k
Insulation resistance (cold)
≥ 500 MΩ
Maximum leakage current (cold)
≤ 0.5 mA
SRV7000 462
SRV7000 462
SRV7000 462
SRV7000 462
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
SRV7000 462
Customer Evaluation
SRV7000 462
Packing & Delivery
SRV7000 462
Plastic bag & Carton box
Company Profile

Taizhou Yuling Electrical Appliance Co., Ltd. is a professional manufacturer engaged in tubular electric heating elements.

Yuling has focused on this industry 43 years.

Since our establishment in 1996, we have been located in the renowned Qingtong Industrial Park, Jiangyan District, Taizhou City, Jiangsu Province.
At Yuling, we take pride in our commitment to quality and safety, evidenced by our certifications such as the ISO9001:2008 international quality system, CQC product safety, CE, RoHS, and UL testing. We strive to maintain the highest standards in our products and services and continuously improve our production processes.
We look forward to the opportunity to work with you and provide you with the exceptional products and services that we are known for.
FAQ
1. who are we?We are based in Jiangsu, China, start from 2010,sell to Oceania(50.00%),North America(30.00%),South America(10.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Enginee Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. why should you buy from us not from other suppliers?1.More than 40 years experence
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,French SRV7000 462 SRV7000 462 SRV7000 462
