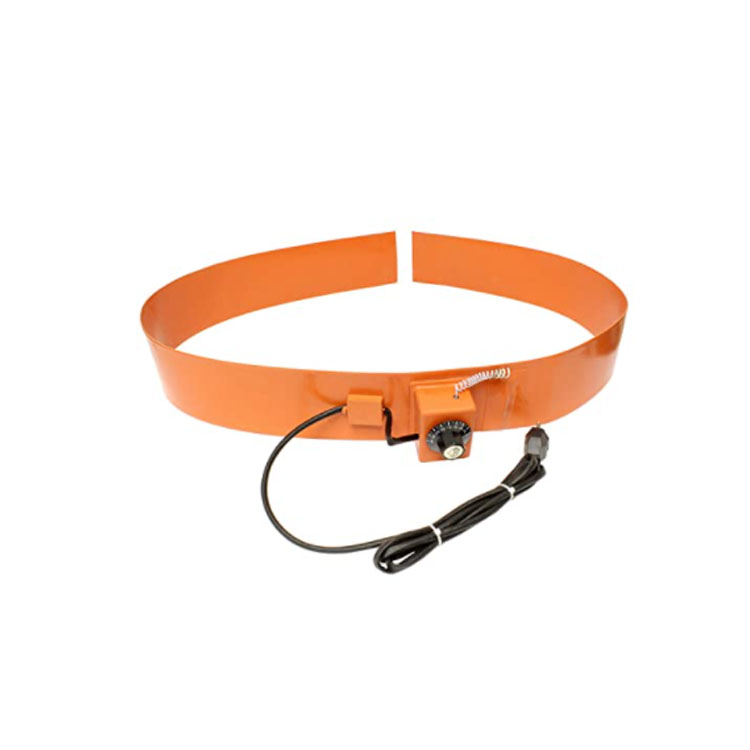

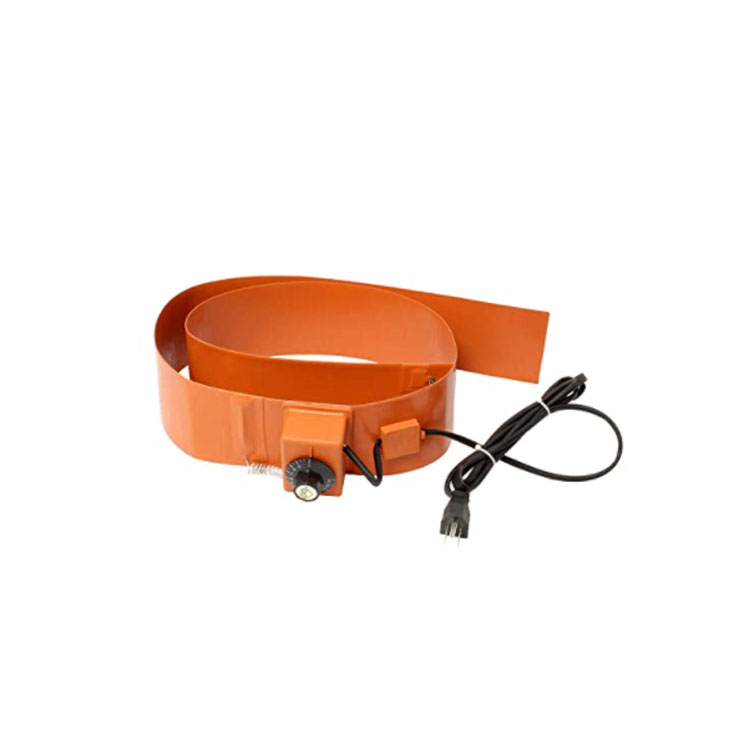

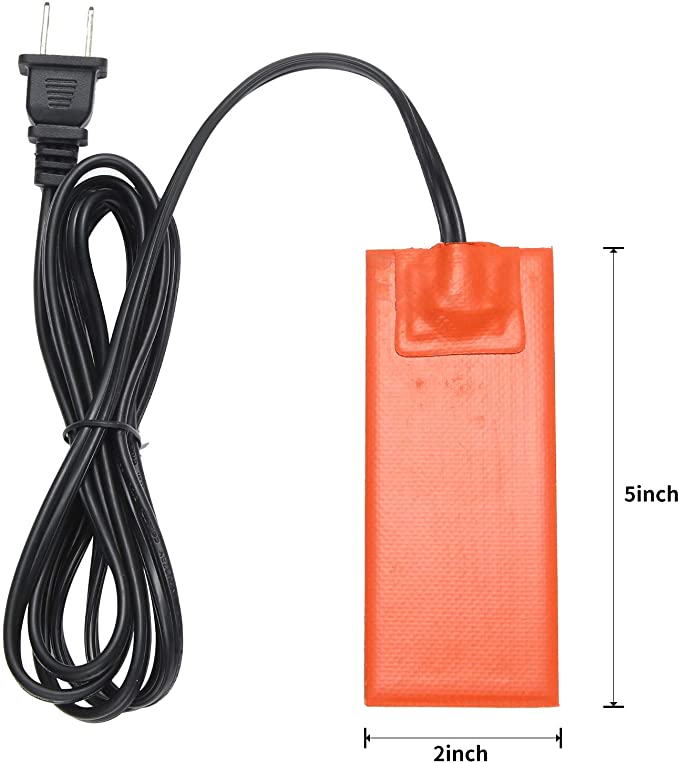

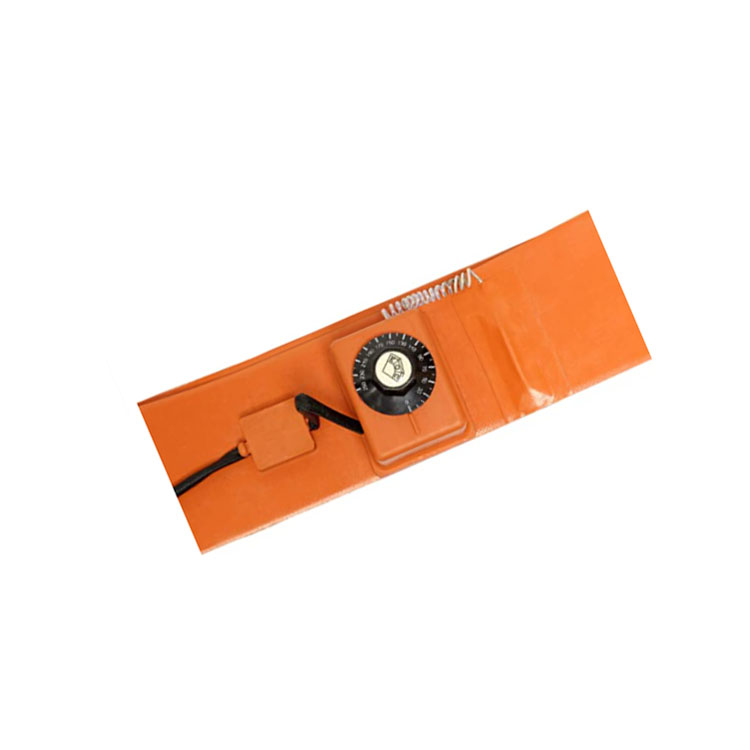

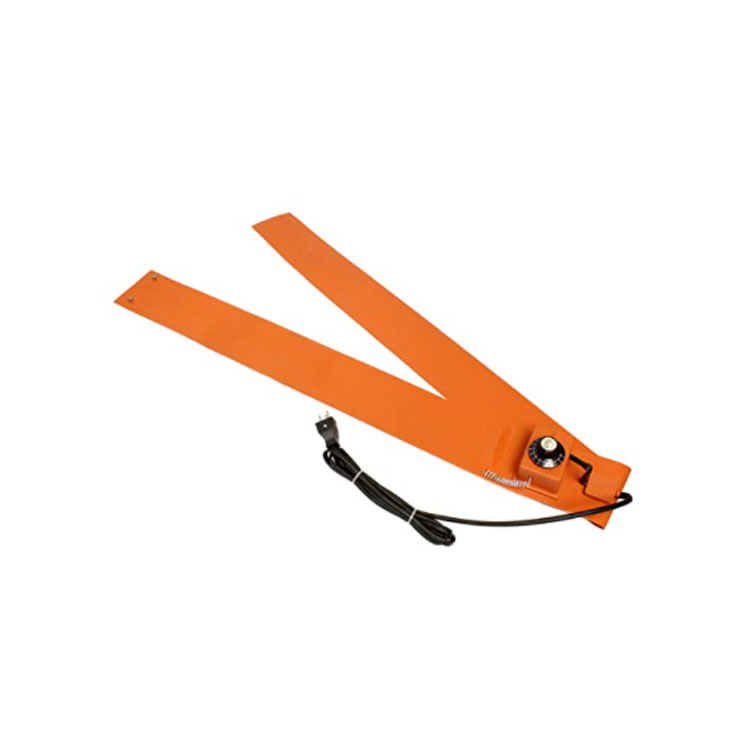

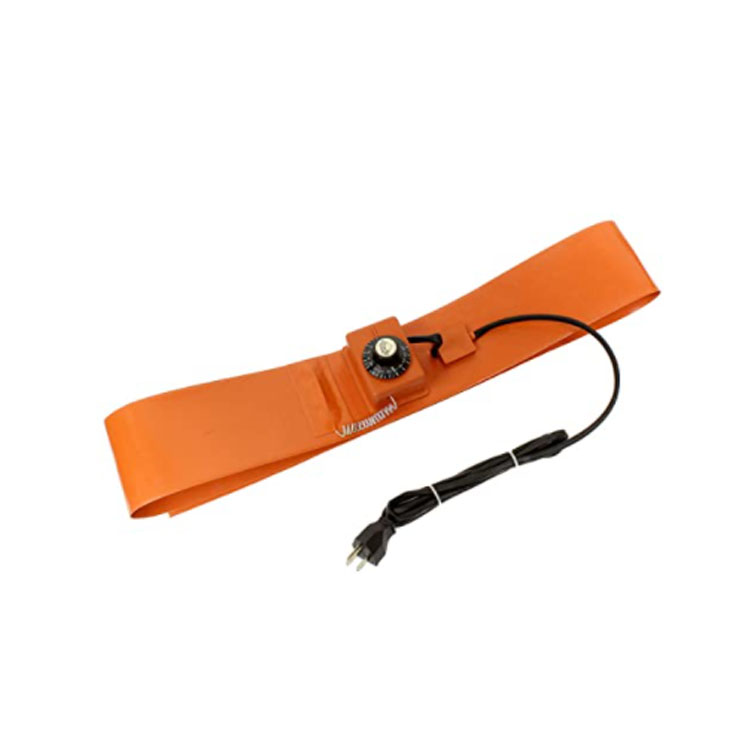

220volt Industrial electric flexible heating element silicone rubber oil drum heater heating blanket
Silicone Rubber Oil Drum Heater is a heating device to maintain consistent temperatures in oil drums, ideal for various industrial applications, available next month.
Description
220volt Industrial electric flexible heating element silicone rubber oil drum heater heating blanket
Product Description
Silicone rubber oil drum heater provide practical, efficient means of freeze protection, viscosity control and maintenance of materials at elevated temperatures. A variety of standard sizes are combined with availability of configure-to-order designs to meet a variety of applications.
Feature
1.Silicone rubber electric heating;
2. Electric heating plate;
3. Electric heating ring;
4. Good waterproof performance;
5. It can be directly wound when used on the surface of the heated part.
Structural performance: This product is mainly composed of nickel-chromium alloy electric heating wire and silicone rubber temperature-resistant insulating cloth. It has fast heating, uniform temperature, high thermal efficiency, high strength, convenient use and long service life.
Specification
Technical Parameters:1. Insulation material temperature: 200 ° C2. Use temperature: can not exceed 200 ° C3. Insulation resistance: greater than 50MΩ4. Compressive strength: 1500v/5s5. Power deviation: plus or minus 8% rated use voltage: plus or minus 5%6. The shop can do length: 3000mm, thickness: 1.5-1.8mm
Size | 200*860 | 125*1740 | 250*1740 | 100*970 | 120*970 | 100*1250 | 120*1250 | 200*1250 |
Voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
Wattage | 800w | 1000w | 2000w | 250w | 300w | 300w | 350w | 500w |
Position | 20L barrel | 200L barrel | 200L barrel | 15KG Gas tank | 15KG Gas tank | 50KG Gas tank | 50KG Gas tank | 50KG Gas tank |
Note: It can be customized according to the voltage, power, size and shape required by the user.
When you order, please inform the width*length,voltage and wattage.
Notes: Length refers to the circumference of the barrel.
Application
Applications:
Wet and non-explosive gas occasionsIndustrial equipment pipelinesAuxiliary heating of air conditioner compressors
Tanks, Towers, Motors, Ubmersible pumps
Product details
Certifications
Packing Method: Carton packing or plywood case packing
