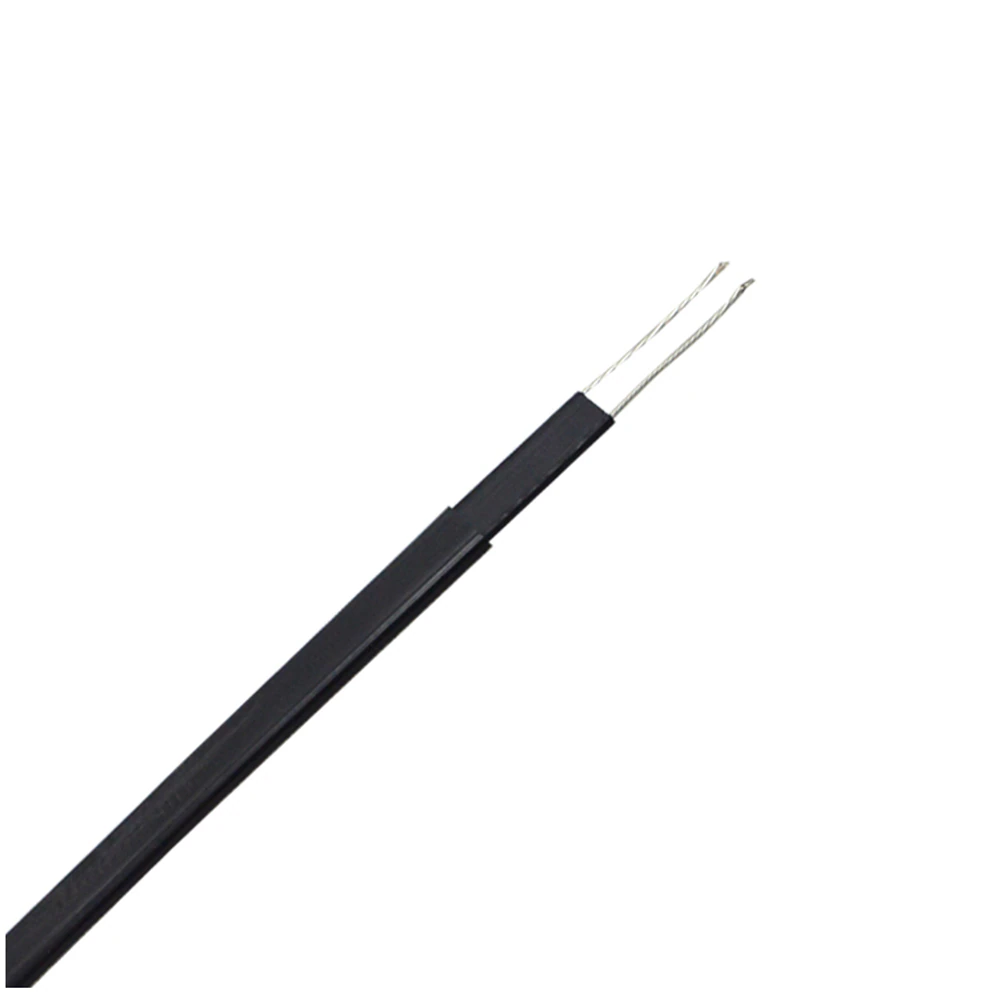

25W/M 220V Snow Ice melting Electric Self Regulating Heating Trace Cable

Product Description

Self-regulating heating cable is an efficient, safe and reliable heating equipment, which is mainly used in various industrial production and special occasions to heat and maintain the temperature of electronic equipment, pipelines, storage tanks, containers, etc. The product is made of advanced materials, with automatic temperature control, self-regulating temperature, waterproof and explosion-proof characteristics, which can ensure the safety, reliability and stability in the heating process. In addition, the self-regulating heating cable is also easy to install and adjust the temperature, can effectively reduce heating costs, improve heating efficiency, is an economic and practical heating equipment. Self-regulating heating cable is widely used in chemical, electric power, petroleum, pharmaceutical and other industries, and is an important product in today’s market.

Feature●Energy efficient, self-regulating cable uses less energy when less heat is required.●Easy to install, can be cut to any length (up to max circuit length) in the field.●lower installed cost than steam tracing, less maintenance expense and less down time.●Can be single overlapped without burn- out, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps.●Because of self-regulating, overtem- perature conditions are minimized.●Connection Kits reduce installation time.

Specification

Specification
Service voltage	12V/24V/36V/110V/220V/380V
Max. maintain temperature	+65°C(149°F) (Low temperature series)
Max. withstand temperature	+105°C(221°F) (Low temperature series)
Min. installation temperature	-40°C(-40°F)
Max. W/m T=10°C	10W~40W (Low temperature series)
Copper conductor	19/0.30 (Low temperature series)
Minimum bend radius	35mm(-30℃),25.4mm(20℃)
Protective braid resistance	less than18.2Ω/km
Jacket material	Flame Retardant Polyolefin / Modified Polyolefin
Thermal stability	After cycling 300 cycles from 10°C to 149°C, the heating value of the tropical heat is maintained above 90%.

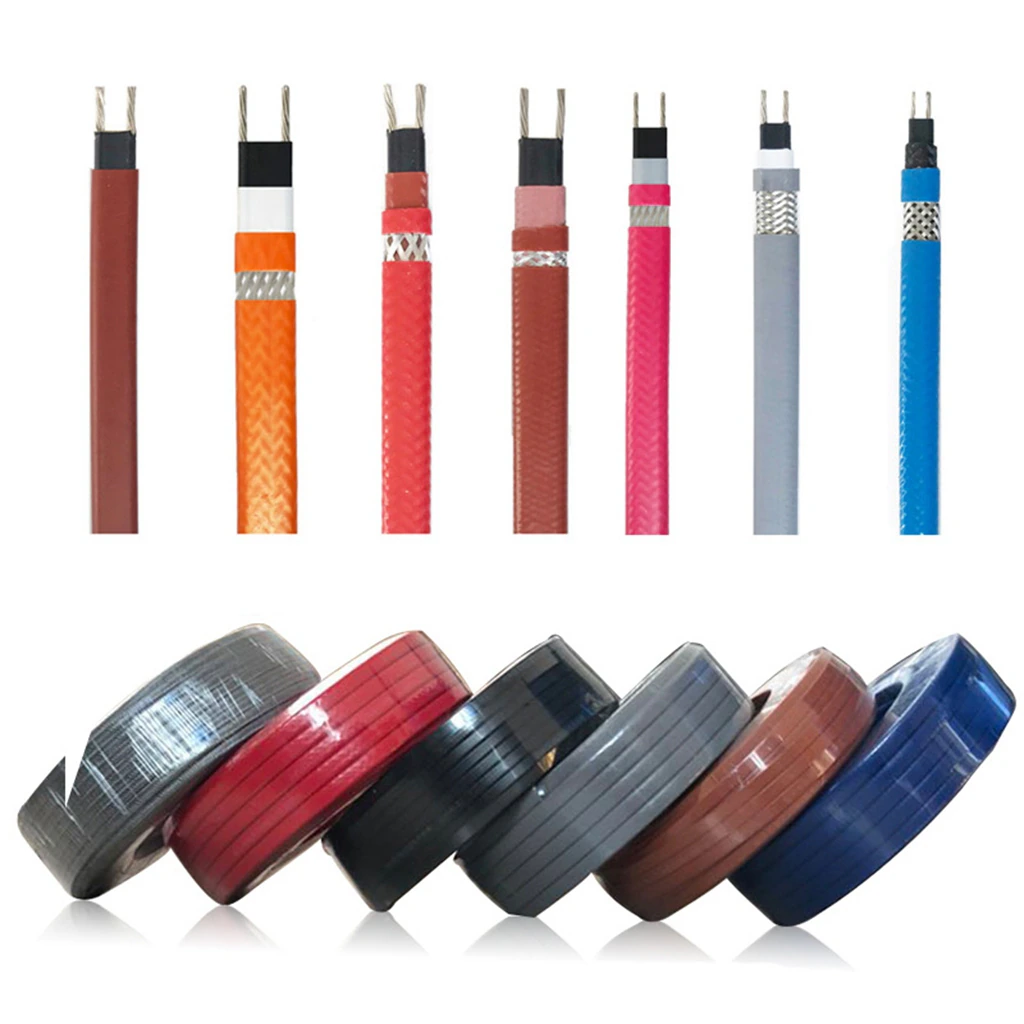

Type	Power (W/M, at 10℃)	Maximum Tolerance Temperature	Maximum Maintain Temperature	Minimum Installation Temperature	Maximum Usage Length (based on 220V)
Low Temperature	10W/M 15W/M 25W/M 35W/M	105℃	65℃±5℃	-40℃	100m
Medium Temperature	35W/M 45W/M 50W/M 60W/M	135℃	105℃±5℃	-40℃	100m
High Temperature	35W/M 50W/M 60W/M	155℃	135℃±5℃	-30℃	100m

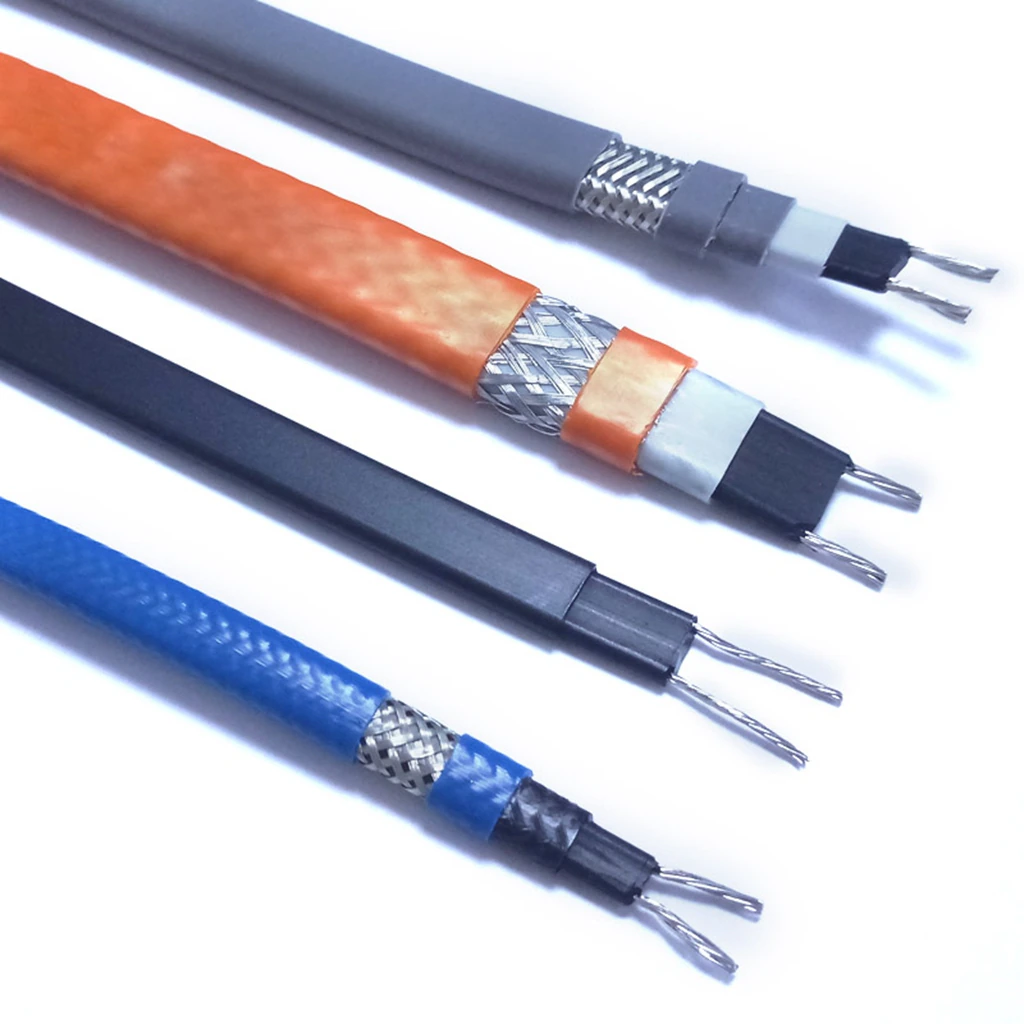

Structure

●Bus Wires: Pro- vide reliable electric current capability. 7*0.32mm, 7*0.42mm, 7*0.5mm, 19*0.32mm, 19*0.41mm and etc.

●Conductive Core: “Self-Regulating” component of the cable its electrical resistance varies with temperature. As process temperature drops,the core’s heat output increases; as process temperature rises, the heat output decreases.

●Inner Jacket: Flame retardant, electrically insulates the matrix and buss wires and provides corrosion resistance.

●Metallic Overshield: Provides additional mechanical protection in any environ- ment and a positive ground path.

●Outer Jacket: Corrosion resistant, flame retardant overjacket is highly effective in many environments. Protects against exposure to organic or corrosive solutions. The overjacket also protects against abrasion and impact damage.
