S-type Platinum-rhodium Thermocouple WRP-130/0 – 1600-degree High-temperature Corundum Tube Thermocouple Temperature Sensor
Description
Product Description
S-type Platinum-rhodium Thermocouple WRP-130/0 – 1600-degree High-temperature Corundum Tube Thermocouple Temperature Sensor
A precision temperature detection component specially designed for high-temperature industrial scenarios. It features a S-shaped precious metal thermocouple core and a high-temperature corundum protective tube, suitable for an ultra-wide temperature measurement range of 0-1600℃. It possesses excellent high-temperature stability and measurement accuracy, and is the core sensor for “precise temperature control in high-temperature environments” in fields such as metallurgy, ceramics, glass, and high-temperature laboratories.
Specification

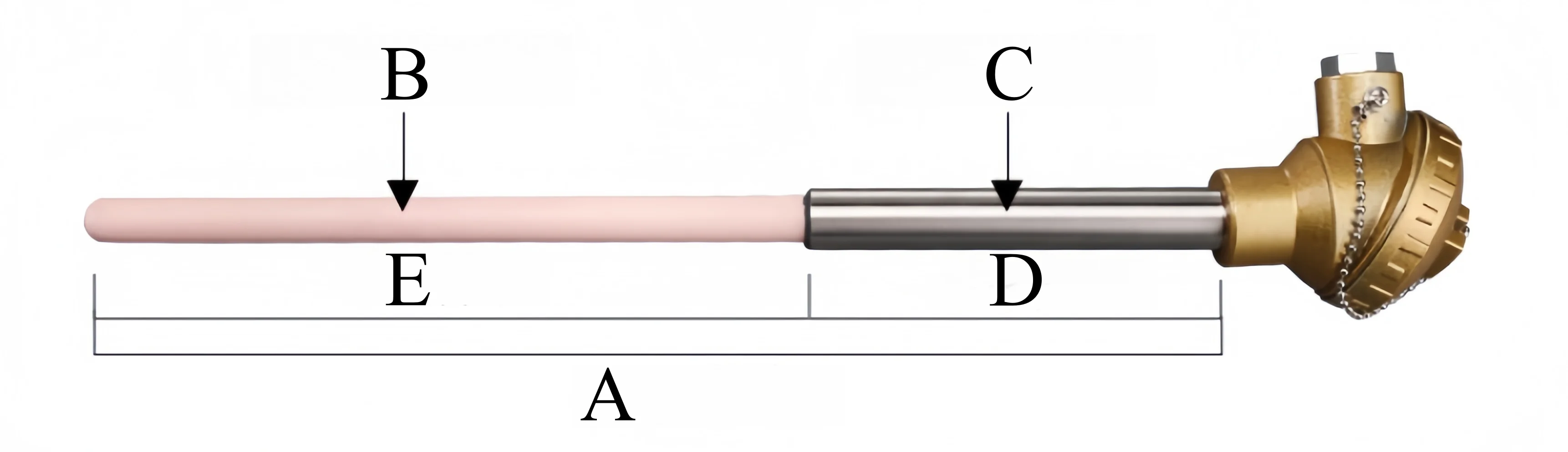

A | B | C | D | E |
300mm | 16mm | 22mm | 150mm | 150mm |
350mm | 16mm | 22mm | 150mm | 200mm |
400mm | 16mm | 22mm | 150mm | 250mm |
450mm | 16mm | 22mm | 150mm | 300mm |
500mm | 16mm | 22mm | 150mm | 350mm |
550mm | 16mm | 22mm | 150mm | 400mm |
600mm | 16mm | 22mm | 150mm | 450mm |
650mm | 16mm | 22mm | 150mm | 500mm |
700mm | 16mm | 22mm | 150mm | 550mm |
750mm | 16mm | 22mm | 150mm | 600mm |
800mm | 16mm | 22mm | 150mm | 650mm |
850mm | 16mm | 22mm | 150mm | 700mm |
900mm | 16mm | 22mm | 150mm | 750mm |
950mm | 16mm | 22mm | 150mm | 800mm |
1000mm | 16mm | 22mm | 150mm | 850mm |
It is necessary to understand before placing an order:
1. Pipe connection length;
2. Immersion length;
3. Total Length;
4. Pipe diameter;
5. Diameter of corundum tube.
1. Pipe connection length;
2. Immersion length;
3. Total Length;
4. Pipe diameter;
5. Diameter of corundum tube.
Installation Instructions
Precautions
1.Choose a place that is easy to operate and maintain for installation
2. It should be installed as far away as possible from vibration sources 3.It should be installed as far away as possible from heat sources 4. It can be directly installed on pipelines or equipment. During installation, it should be clamped tightly at the hexagonal position of the transmitter by hand, such as a wrench. 5. When handling and installing the transmitter, care should be taken to avoid collisions that may affect the performance of the circuit.6. There is an isolation diaphragm inside the pressure inlet of the transmitter. Do not touch it with foreign objects by humans.
