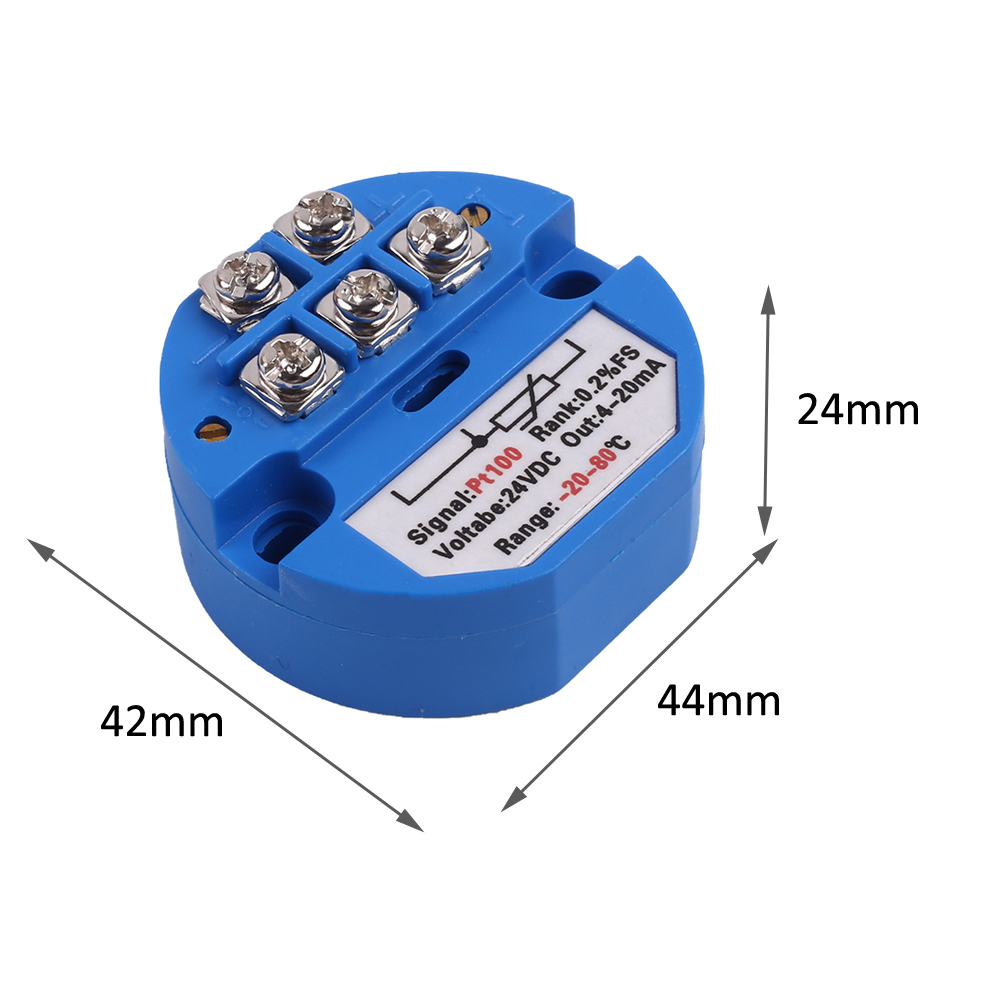

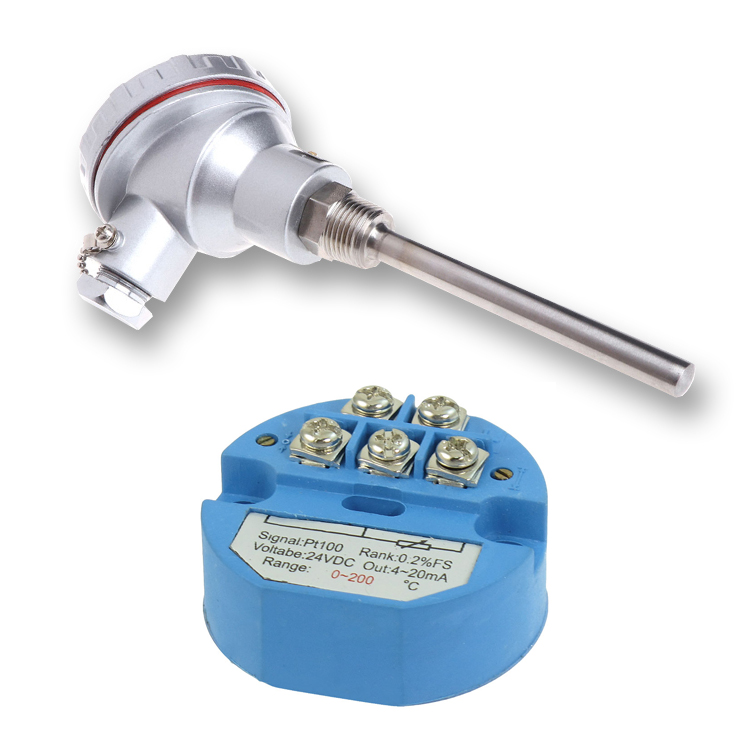

PT100 Temperature Transmitter Sensor Probe With 24V DC 4-20mA Transmitter 0 to 50 100 150 (0-100Celsius)

PT100 Temperature Transmitter Sensor Probe is a highly sensitive device that measures temperature and transmits data to control systems in industrial applications.


Category: Tag:

Description

Product Description
PT100 Temperature Transmitter Sensor Probe With 24V DC 4-20mA Transmitter 0 to 50 100 150 (0-100Celsius)

An RTD Temperature Transmitter (Resistance Temperature Detector or Resistance Temperature Device) is one of the most prevalent temperature sensors used in industry today. Also commonly referred to as PT100/PT1000, its resulting popularity is due to its accuracy and repsonse, at temperatures between -300 to + 600 ° C.

Industrial thermal resistance is used as a temperature measuring sensor. It is usually used with instruments, recorders, and electronic regulators. It can directly measure or control liquid, vapor and gaseous media and solids, in various production processes from -200 °C to 600 °C. The temperature of the surface.According to the national regulations, our company’s fabricated thermocouples, meet the IEC international standard graduation number Pt100 platinum thermal resistance, and the professional standard graduation number Cu50 copper thermal resistance, two types of assembly, unified design type thermal resistance.

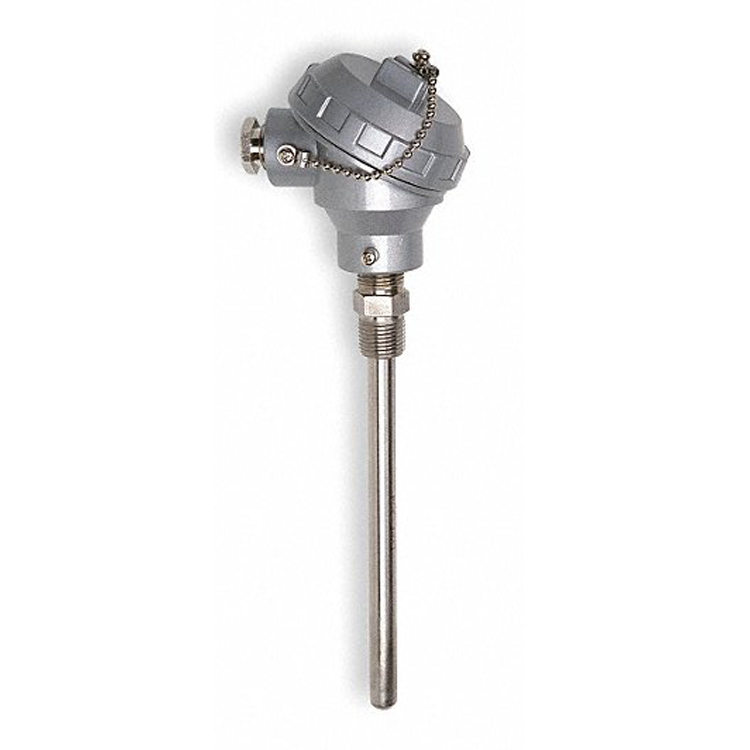

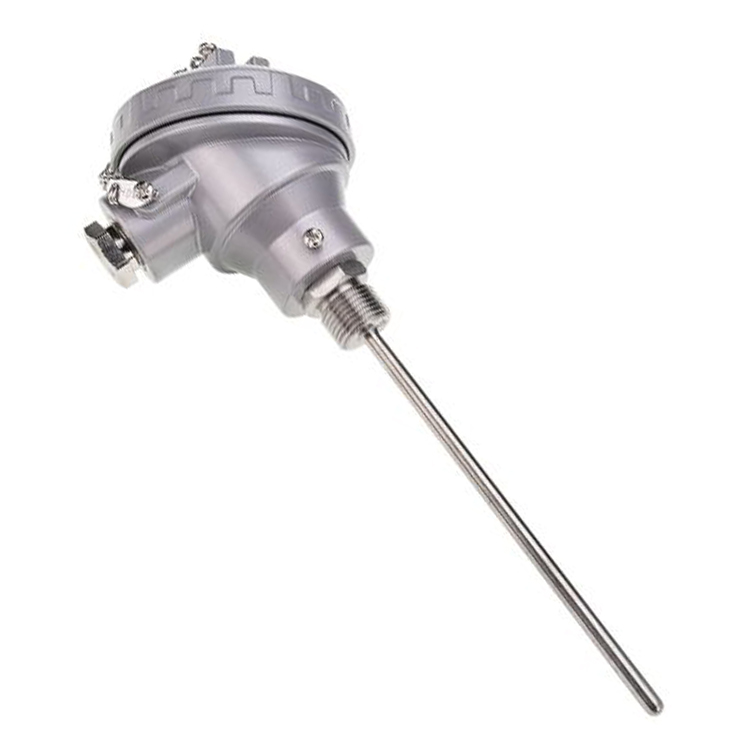

PT100 Temperature Transmitter Sensor Probe

Features:

* Imported original platinum resistance (Pt100/Pt1000), good consistency; * High temperature measurement accuracy and reliable performance; * Two-layer package, good anti-vibration performance; * High mechanical strength and good pressure resistance. * Standard pipe thread installation

Application: Usually used in conjunction with display instruments, recording instruments, electronic computers, etc. Direct measurement of liquid, steam and gaseous media and solid surface measurement in the range of -200~500 °C in various production processes.
Specification
Measurement range
-200~600°C
Index
Pt100
Accuracy level
Class A (±0.15°C+0.005|t|), Class B (±(0.30°C+0.005|t|)
Protection tube diameter
Φ12 (special outer diameter please specify)
Protection tube material
stainless steel 304,321,316
Thermal resistance wiring
two-wire wiring, three-wire wiring, four-wire wiring.
Thermal response time
T0.5 ≤ 45S (when the temperature changes stepwise, the output of the thermal resistance changes to 50% of the change, and thetime required is called thermal response time, expressed by T0.5).
Thermal resistance Nominal pressure
generally refers to the static external pressure, that can be withstood by the protective tube at room temperature withoutbreaking.
The minimum insertion depth of the thermal resistance
it should be no less than 8-10 times of the outer diameter of theprotection tube (except for special products).
Thermal resistance self-heating effect
When measuring the current 5mA through the thermal resistance, the measured resistance increment is converted into a temperature value of not more than 0.30 °C.
Thermal resistance insulation resistance
The test voltage of the normal temperature insulation resistance can be any valueof DC 10~100V, the ambient temperature is in the range of 15~35°C, and the relative humidity should be no more than 80%.The insulation resistance value at room temperature should be not less than 100MΩ.
Executive standards
JB/T8622-1997 and JB/T8623-1997 standards
PT100 Temperature Transmitter Sensor Probe
PT100 Temperature Transmitter Sensor Probe
PT100 Temperature Transmitter Sensor Probe
Waterproof design
Precision welding of thread and protective tube ensures sealing and waterproof, Stable performance, durable, long service life
PT100 Temperature Transmitter Sensor Probe
Delicate nut
Meticulous work
Anti-corrosive
Rusting resistance
PT100 Temperature Transmitter Sensor Probe
Three wires
Three wire system
Stainless steel probe
More precise
Product show
PT100 Temperature Transmitter Sensor Probe
PT100 Temperature Transmitter Sensor Probe
PT100 Temperature Transmitter Sensor Probe
PT100 Temperature Transmitter Sensor Probe
