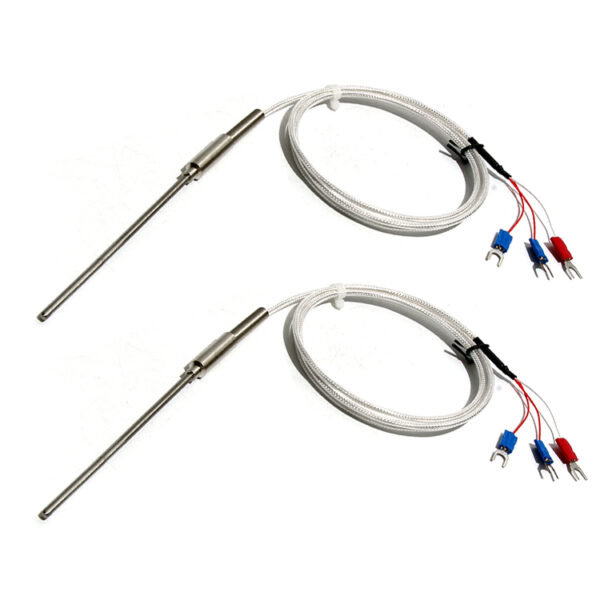

High Performance 6mm Dia PT100 Probe Thermocouple 3 Wire RTD Temperature Sensor 191 Model for Accurate Temperature Measurement
PT100 probe thermocouple is a high-precision temperature sensor used in various industries for accurate temperature measurement.
Description
High Performance 6mm Dia PT100 Probe Thermocouple 3 Wire RTD Temperature Sensor 191 Model for Accurate Temperature Measurement
Product Description
Thermal resistance, high sensitivity, strong stability, interchangeability and accuracy are relatively good, but need power excitation, can not measure the temperature change instantaneously. Industrial thermal resistance is generally Pt100, Pt10, Cu50, Cu100, platinum thermal resistance temperature measurement range is generally -200 ~ 800℃, often used in power, chemical industry, injection molding, packaging, food, incubator, oven temperature measurement.
PT100 Probe Thermocoupleadvantage:
①Less thermal response time, reduce the dynamic error;
②Small diameter, length is not restricted;
③High measuring accuracy;
④Imported film resistance element;
⑤Performance stable and reliable.
Specification
Product name | PT100 Probe Thermocouple |
Type | PT100-type |
Product mode | WZPK-191 |
Probe diameter | 3/4/5mm |
Probe length | Customized according to customer requirements |
Lead length | 1m/2m/3m/4m/5m(there is tolerance, if care, please do not make order.) |
Wire material | Polytafluoro-silver-plated leads |
Temperature measurement range | -200-450C |
Custom | Yes, can custom probe diameter. length, cable length. |
Package contents | 1 × sensor |
Reminder: The larger the probe diameter, the better the temperature resistance effect.
Buyers are requested to provide the actual measurement range as much as possible so that we can adapt to the appropriate diameter and material.
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
Stainless steel probe
Choose national standard 304 stainless steel raw material.
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
Type | Graduation | Temperature Range(°C） | Short-term Temperature Measurement(°C） |
WRNK-191 | K | 0-900°C | 0-1000°C |
WREK-191 | E | 0-600°C | 0-700°C |
WRCK-191 | T | 0-200°C | 0-400°C |
WRFK-191 | J | 0-450°C | 0-600°C |
WRMK-191 | N | 0-1100°C | 0-1200°C |
WRPK-191 | S | 0-1250°C | 0-1400°C |
WZPK-191 | PT100 | -20-420°C | 0-600°C |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Diameter(mm) | Thermocouple | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
