Name: 035 High Accuracy 3 Wire 6 Wire PT100 Platinum RTD Temperature Sensor Probe PT1000 Waterproof Stainless Steel Thermistor - A Pioneering Force In Electrical Heating Industry
Price: 4.95 USD
Availability: InStock

Description

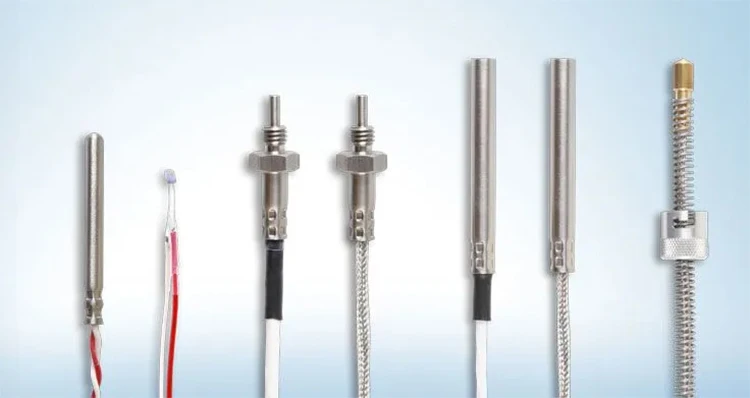

035 High Accuracy 3 Wire 6 Wire PT100 Platinum RTD Temperature Sensor Probe PT1000 Waterproof Stainless Steel Thermistor

Product Description

What is A PT100 Sensor？PT 100 temperature sensors are the most common type of platinum resistance thermometer. Often resistance thermometers are generally called Pt100 sensors, even though in reality they may not be the RTD Pt100 type. Pt refers to that the sensor is made from Platinum (Pt). 100 refers to that at 0°C the sensor has a resistance of 100 ohms (Ω). A resistance thermometer is a type of temperature sensor. It consists of an element that uses resistance to measure temperature. Common names for Resistance Thermometers include RTDs (short for resistance temperature detector), RT, Pt100 RTD, or Pt1000. Pt100 probes can be protected in several ways and the temperature sensors are designed to get the best measurement of your process.

Specification

Product Name	Stainless steel PT100 RTD Temperature Sensor
Model	PT100 (K/E/J/T/CU50 optional）

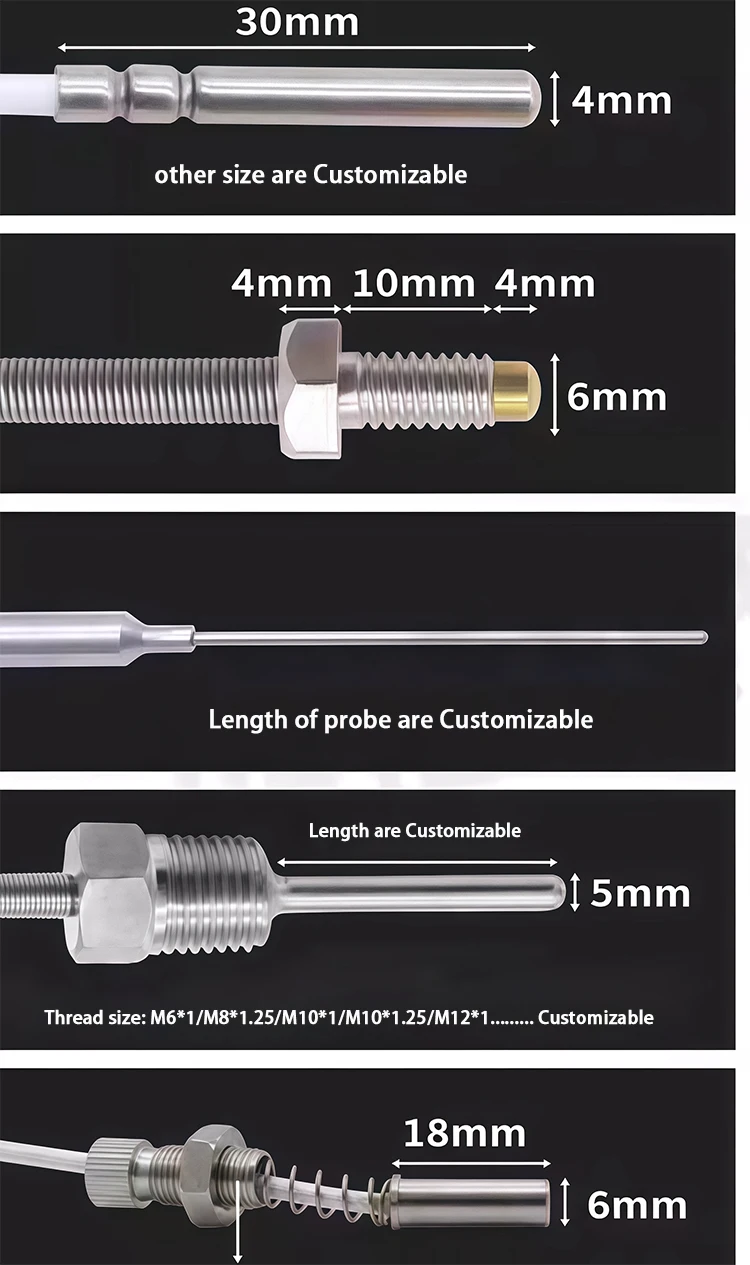

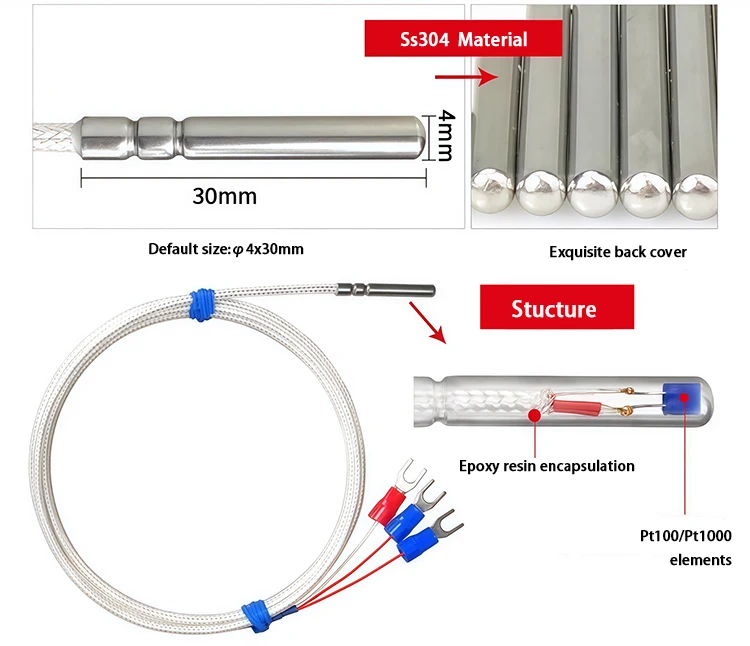

Defalut Size	Ø4 x 30mm
Probe Material	304 stainless steel（316 optional）
Accuracy	Class B / Class A/ Class 2B, PT1000 Class 1/3 B
Probe Diameter	Ø2-Ø7mm
Probe Length	50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm optional
Wire Material	3 Wire Teflon shield silver plated copper wire （Waterproof Silicone rubber/glass fiber optional）
Wire Length	0.5M/1M/2M/3M optional
Temp range	PT100 -50℃-200℃CU50 -50℃-150℃K 0℃—600℃E 0℃—400℃

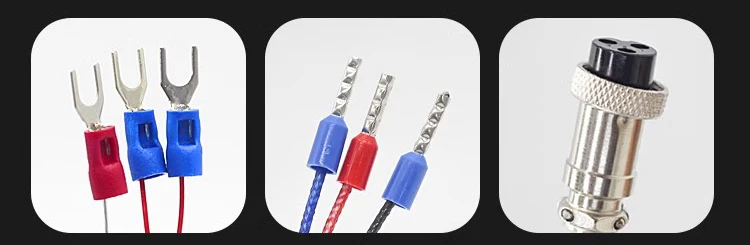

Terminals	U type Terminals , mini connectors

Product Advantage:1)High Precision Temperature control probe2)Accurate measurement accuracy, high sensitivity, wide measurement range 0-500℃3)Accurate measurement (imported chip)4)fast response,anti-interference5)Good temperature resistance

Different end user are avaliable
