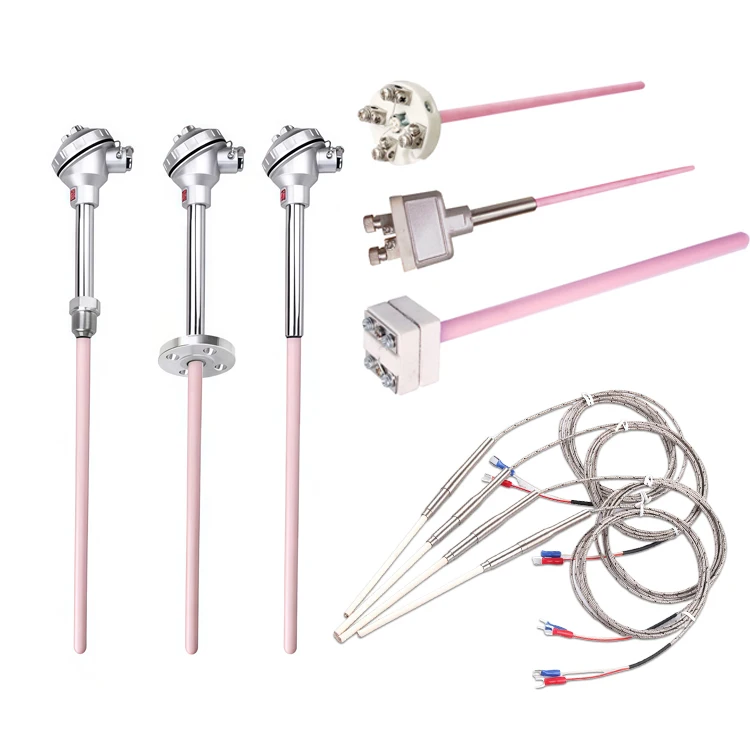

0-1800 High Temperature Platinum Thermocouple Temperature Sensor B/S/R/K for Furnace Heating
0-1800 High Temperature Platinum Thermocouple Temperature Sensor B/S/R/K for Furnace Heating
Description
0-1800 High Temperature Platinum Thermocouple Temperature Sensor B/S/R/K for Furnace Heating
Product Description
Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, ceramics. It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
Specification
Product name | Platinum rhodium thermocouple |
Type | S/R/B |
Material | 99% high temperature corundum tube, Or GH3039 high temperature alloy tube or SIC protection tube |
Ceramic tube | OD φ8mm |
Features1. Easy assembly and convenient for replacement2. Spring thermal element with good shock-proof performance3. Wide measuring range4. High mechanical strength, good pressure-resistant performance
ConductorMaterial | Type | Graduation | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
