S/B/R type small platinum rhodium thermocouple WRP-100 WRR temperature sensor
Platinum Rhodium Thermocouple is a high-precision temperature measuring device that consists of two wires – platinum and rhodium.
Description
S/B/R type small platinum rhodium thermocouple WRP-100 WRR temperature sensor
Small platinum rhodium thermocouples Industrial fabricated thermocouples are used as sensors to measure temperature, and are usually used in conjunction with display instruments, recording instruments or computers. It can directly measure the temperature of gas, liquid, solution and solid surface in various production processes.

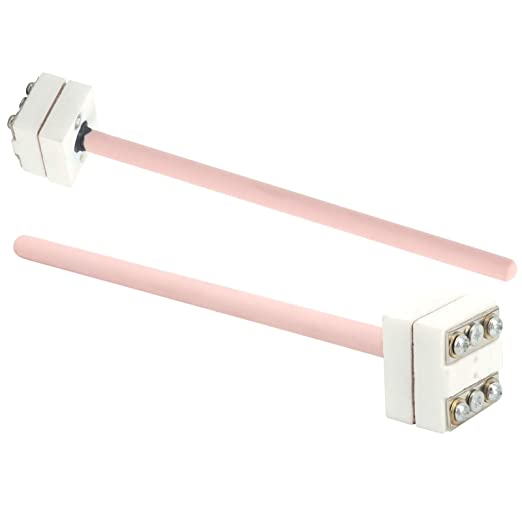

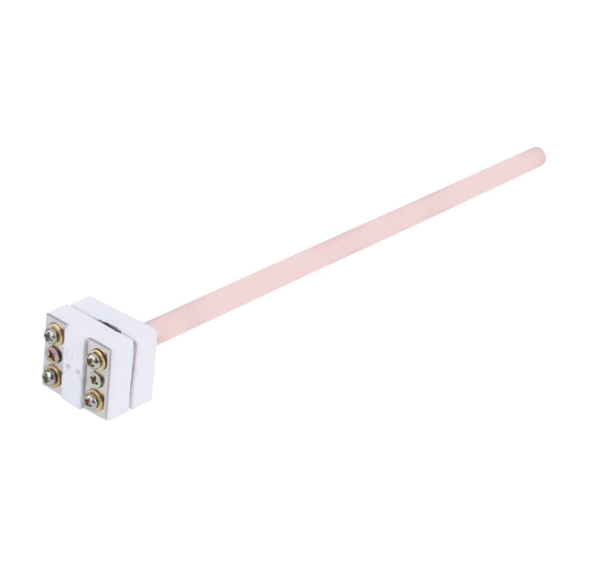

Small platinum rhodium thermocouple, WRP-100 small platinum-rhodium thermocouple uses precious metal high-purity platinum as the negative electrode and platinum-rhodium alloy as the positive electrode. It is used in powder metallurgy, sintering bright furnace, vacuum furnace, smelting furnace and various refractory materials. The tube material is corundum, and the measurement temperature is 0-1300 degrees.
Small platinum rhodium thermocouple, WRP-100 small platinum-rhodium thermocouple uses precious metal high-purity platinum as the negative electrode and platinum-rhodium alloy as the positive electrode. It is used in powder metallurgy, sintering bright furnace, vacuum furnace, smelting furnace and various refractory materials. The tube material is corundum, and the measurement temperature is 0-1300 degrees.
S type thermocouples featuresS type thermocouple has the advantages of the highest accuracy, the best stability, wide temperature measurement area and long service life in thermocouple series. It has good physical and chemical properties, thermoelectric potential stability and oxidation resistance at high temperature, suitable for oxidation and inert atmosphere.
Specification
Product name | Small platinum rhodium thermocouple |
Type | S type, B type, R type |
Product model | WRP-100 |
Protection tube diameter | 8mm by default (customizable) |
Tube length | customized according to customer requirements |
Thread | customized according to customer requirements |
Lead length | arbitrarily customized according to customer requirements |
Material | 99% al2o3 |
Wire dia | 0.3-0.5mm |
Measuring range | 800deg C to 1600deg C |
Model | Graduation | Temperature range | Tube material | Tube diameter | Total length | Immersion length |
WRP-100 | S | 0-1300 | corundum | φ8 | 352 | 225 |
327 | 300 | |||||
202 | 175 |
0.5 WIRE DIAMETER
0.5mm thick wire diameter temperature measurement quasi high temperature measurement long life
CERAMIC CORUNDUM
The protection tube adopts 99 corundum porcelan tube which is durable, temperature resistant and anticorrosion.
INTEGRATED DESIGN
Simple assembly and easy replacement
