Modern Adjustable ABS Spherical Jet Air Outlet for Office for Air Conditioning Supply Registers & Grilles
Description
Product Description

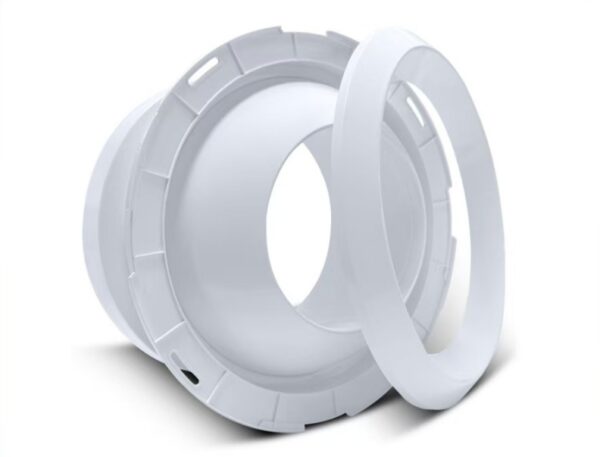

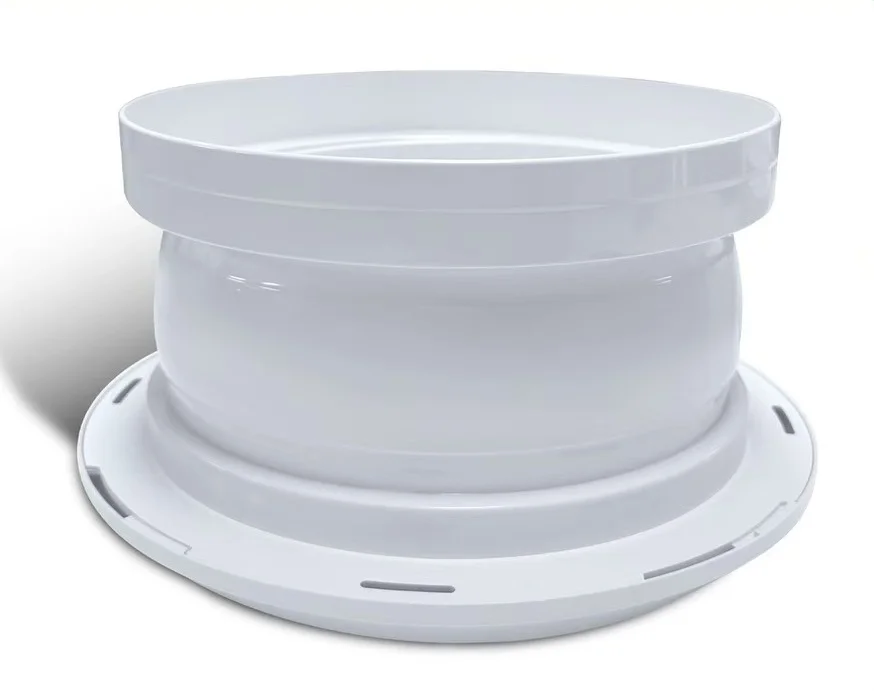

This ventilation opening is made by injection molding with high-quality ABS engineering plastic, featuring resistance to acid and alkali corrosion and anti-aging properties. It is suitable for various air conditioning ventilation systems. The spherical shape can freely rotate 360 degrees, and is combined with 180-degree adjustable guide wind blades to precisely control the air supply direction, meeting the air flow organization requirements of different spaces.



Model number | Facial Size | Interface Size | ReceivingSize | Nozzle | Diameter | With raised valve height |
150Q | 200MM | 148MM | 160MM | 75MM | 148MM | 115MM |
200Q | 265MM | 198MM | 210MM | 105MM | 198MM | 160MM |
250Q | 310MM | 245MM | 260MM | 122MM | 248MM | 197MM |
300Q | 360MM | 295MM | 310MM | 170MM | 296MM | 230MM |
315Q | 360MM | 308MM | 320MM | 170MM | 310MM | 220MM |
350Q | 416MM | 345MM | 360MM | 200MM | 348MM | 250MM |
400Q | 472MM | 395MM | 410MM | 255MM | 398MM | 282MM |
Installation Instructions

Specification

Model | Facial Size | InterfaceSize | ReceivingSize | Balldiameter | Thread hole | Receptiondepth | Height |
75Q | 115MM | 72MM | 80MM | 30MM | 98MM | 42MM | 55MM |
100Q | 138MM | 96MM | 100MM | 45MM | 120MM | 57MM | 72MM |
150Q | 200MM | 148MM | 160MM | 75MM | 175M | 80MM | 100MM |
200Q | 265MM | 198MM | 210MM | 105MM | 240MM | 100MM | 130MM |
250Q | 310MM | 245MM | 260MM | 122MM | 282MM | 132MM | 162MM |
300Q | 360MM | 295MM | 310MM | 170MM | 335MM | 155MM | 185MM |
315Q | 360MM | 308MM | 320MM | 170MM | 335MM | 155MM | 185MM |
350Q | 416MM | 345MM | 360MM | 200MM | 392MM | 170MM | 200MM |
400Q | 472MM | 395MM | 410MM | 255MM | 446MM | 177MM | 207MM |
450Q | 545MM | 445MM | 460MM | 277MM | 515MM | 186MM | 211MM |
500Q | 595MM | 495MM | 510MM | 285MM | 565MM | 186MM | 211MM |
630Q | 725MM | 620MM | 630MM | 338MM | 693MM | 240MM | 270MM |
Certifications

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?We are based in Jiangsu, China, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Heating Element, Ventilation Products, Thermocouple4. why should you buy from us not from other suppliers?we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. what services can we provide?Accepted Delivery Terms: FOB,EXW,DDP;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A;Language Spoken:English,Chinese,French
