KX Thermocouple Wire Type K 2*0.711 mm High Density Glass Insulation Red and Yellow Wire 800° Thermocouple Extension Cable

KX Thermocouple Wire Type K 2*0.711 mm High Density Glass Insulation Red and Yellow Wire 800° Thermocouple Extension Cable

Category:

Description

KX Thermocouple Wire Type K 2*0.711 mm High Density Glass Insulation Red and Yellow Wire 800° Thermocouple Extension Cable
Product Description

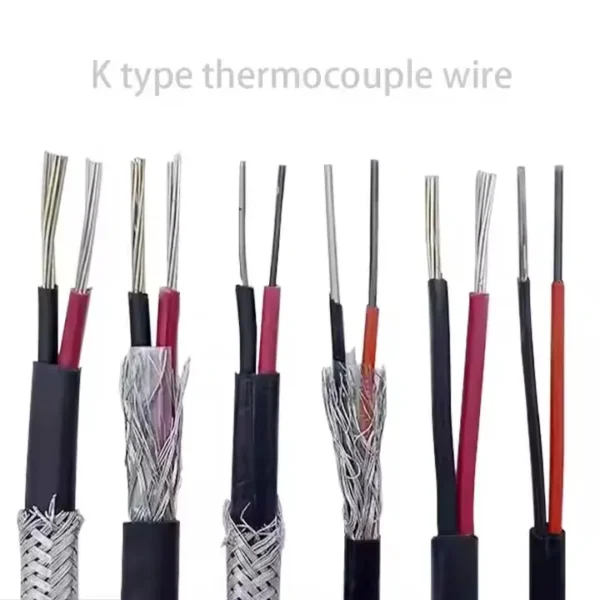

KX Thermocouple Wire
KX Thermocouple Wire

K thermocouple wire, when heated, utilises the Seebeck effect to produce a variable mV difference between the two dissimilar conductors (Nickle/Chrome and Nickle/Aluminium). This mV difference can then be used by temperature control and recording equipment to accurately control and record the temperature of the work piece being heat treated.

To obtain the most accurate temperature reading the thermocouple wire should be directly attached to the workpiece being heat treated using one of thermocouple attachment units
Specification
Single strand wire diameter (each conductor)
0.711 mm
Thermocouple Type
K
Conductor material
Positive conductor – Nickel/Chrome : Negative conductor- Nickel/Aluminium
Insulation
Glass fibre, braided and varnished, red and yellow
Insulation temperature rating
700°C (Note: Dependent upon environmental conditions, the short term temperature rating for the insulation is 750°C where there is no risk of abrasion of the insulation during the heat treatment process.
Construction
Twisted pair

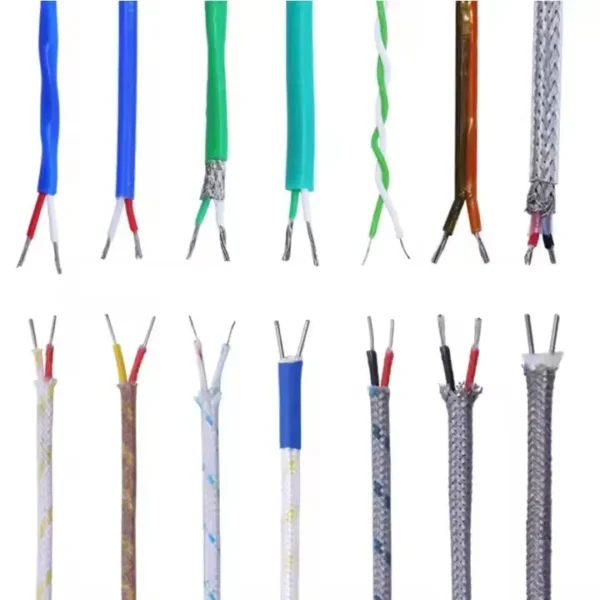

Material
PTFE
PFA
PVC
Fiber-glass
Silicon
Kapton
Quartz fiber
Max temp(°c)
260
260
108
400
200
400
800

Applications* Metallurgy* Chemical industry, petroleum* Power generation* Defense and scientific research* Cables for connection between thermocouples and temperature display instrument.Features1) Continuous use up to 200℃2) Short term use up to 250℃3) Excellent heat, chemical, abrasion and moisture resistance4) Provides accurate temperature measure with high temperature stability5) Calibration test report is available

Safety * No personal protective equipment required when used under normal operating conditions. * Product represents no health risk when used under normal operating conditions * In case of smoke inhalation during combustion remove casualty to fresh air and seek medical attention.
* In case of ingestion seek medical attention * Good industrial hygiene practices should be followed. * If skin irritation occurs area should be flushed with cold water * If glass dust is produced due to rough handling it should be washed off immediately. In case of contact with eyes flush well with plentiful amounts of clean water and seek medical attention
KX Thermocouple Wire
Packing & Delivery
KX Thermocouple Wire
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
