1000C Flexible K-type Thermocouple Surface Mount Temperature Sensor Weld Point Probe T-type Thermocouple Wire and Cable
1000C Flexible K-type Thermocouple Surface Mount Temperature Sensor Weld Point Probe T-type Thermocouple Wire and Cable
Description
1000C Flexible K-type Thermocouple Surface Mount Temperature Sensor Weld Point Probe T-type Thermocouple Wire and Cable
Product Description
A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.
Specification

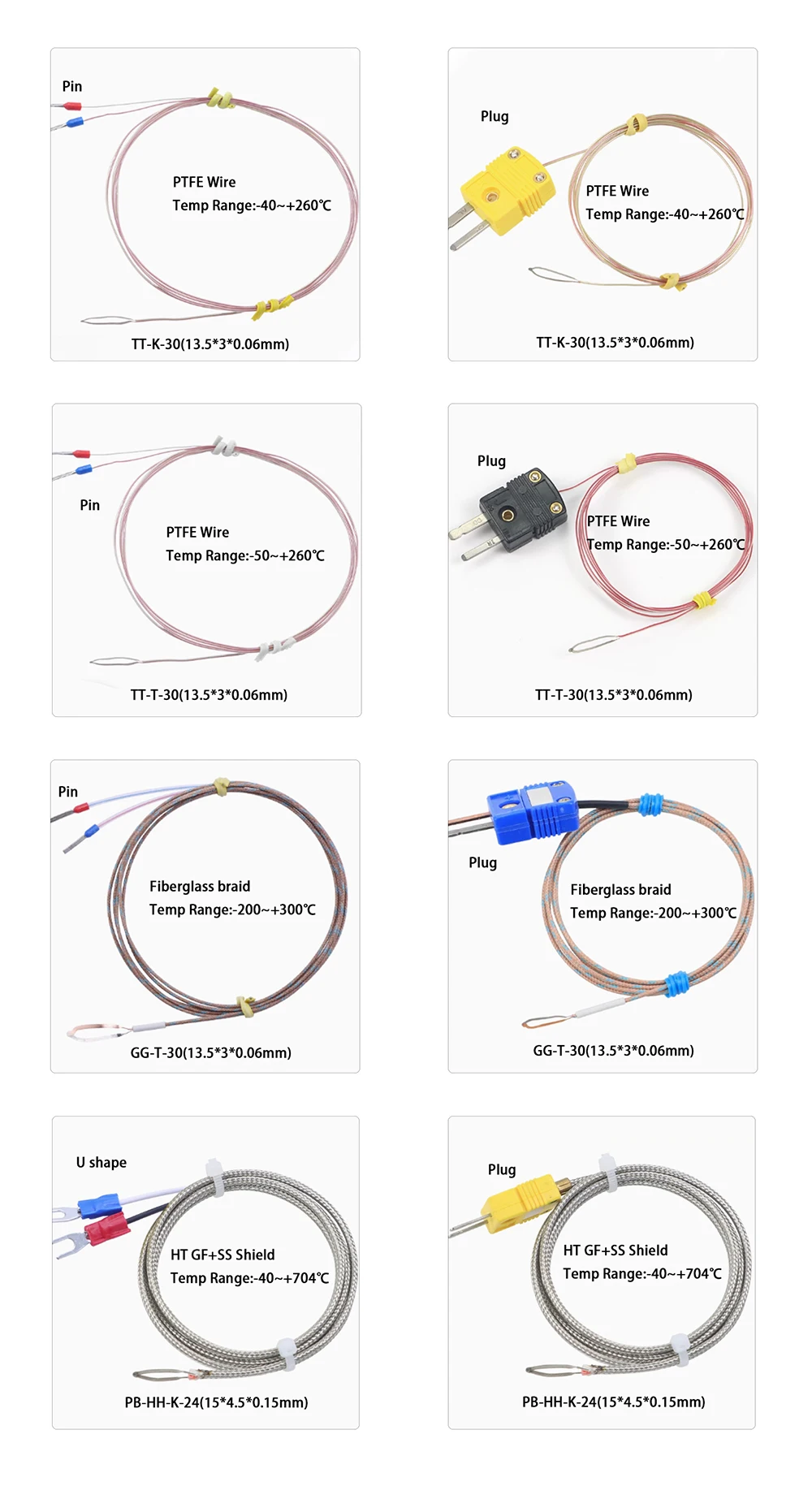

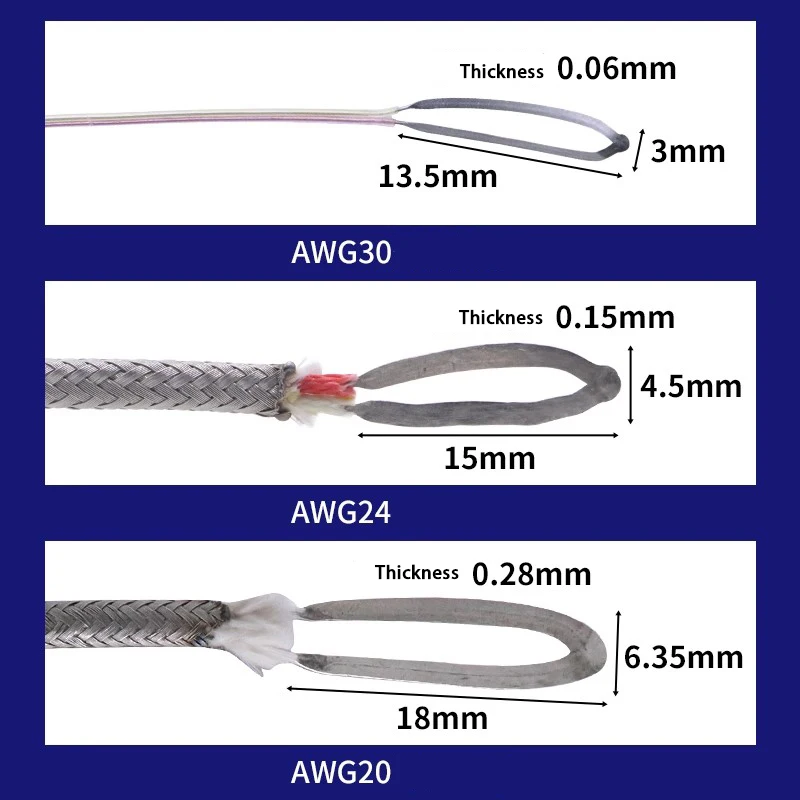

Material | Type | Temp. Range | Material of Thermocouple wire | Sheet size |
PTFE | BP-TT-K-30-SLE | -40℃~+260℃ | NiCr+/NiSi- | 13.5*3*0.06mm |
BP-TT-T-30-SLE | -200℃~+260℃ | Cu+/Constantan- | ||
BP-TT-J-30-SLE | -50℃~+260℃ | Fe+/CuNi- | ||
Fiberglass braid | BP-GG-K-30-SLE | -40℃~+480℃ | NiCr+/NiSi- | 13.5*3*0.06mm |
BP-GG-T-30-SLE | -200℃~+300℃ | Cu+/Constantan- | ||
BP-GG-J-30-SLE | -50℃~+480℃ | Fe+/CuNi- | ||
HT Fiberglass braid | BP-HH-K-24-SLE | -40℃~+704℃ | NiCr+/NiSi- | 15*4.5*0.15mm |
BP-PB-HH-K-24-SLE | ||||

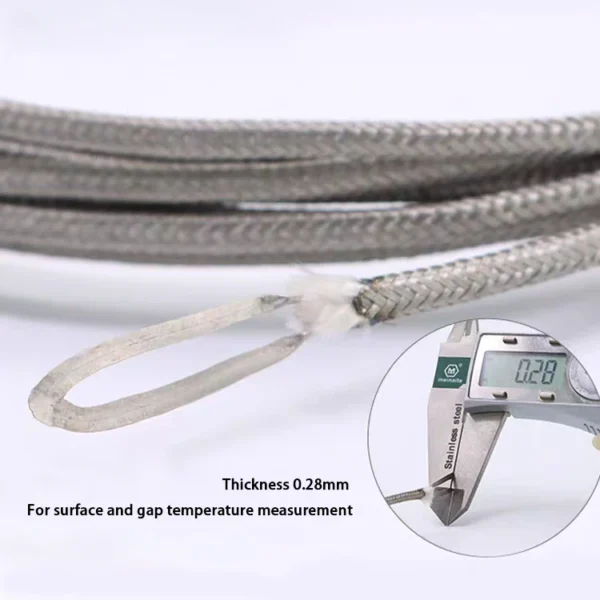

Ceramic Fiber | BP-XS-K-20-SLE | -40℃~+1000℃ | NiCr+/NiSi- | 18*6.35*0.28mm |
BP-PB-XS-K-20-SLE |

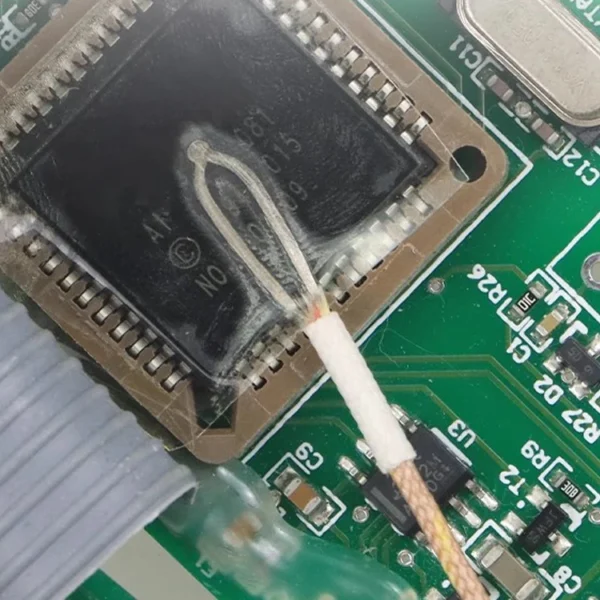

The thin-sheet probe can measure surface temperature and slit temperature. The probe is in full contact with the object being measured, making the temperature measurement more accurate.
