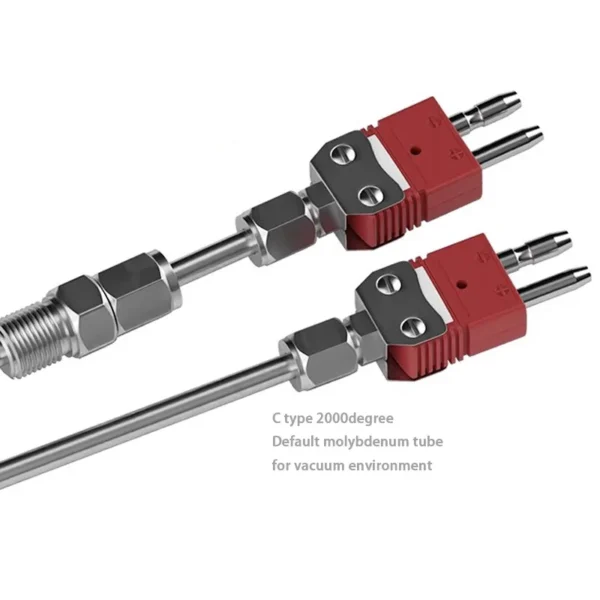

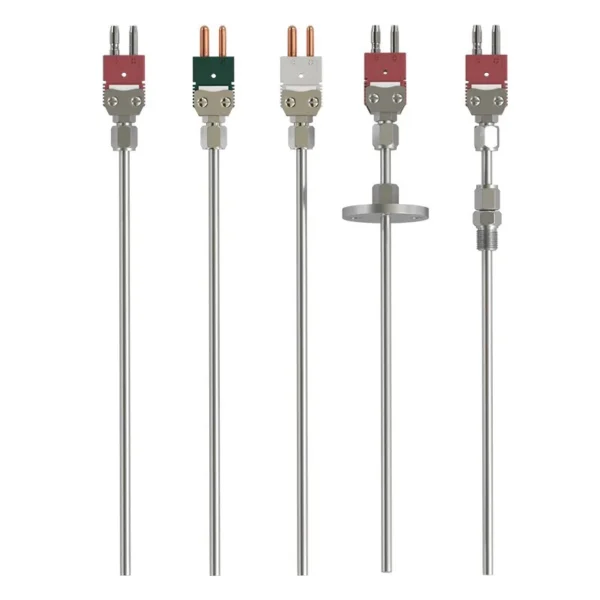

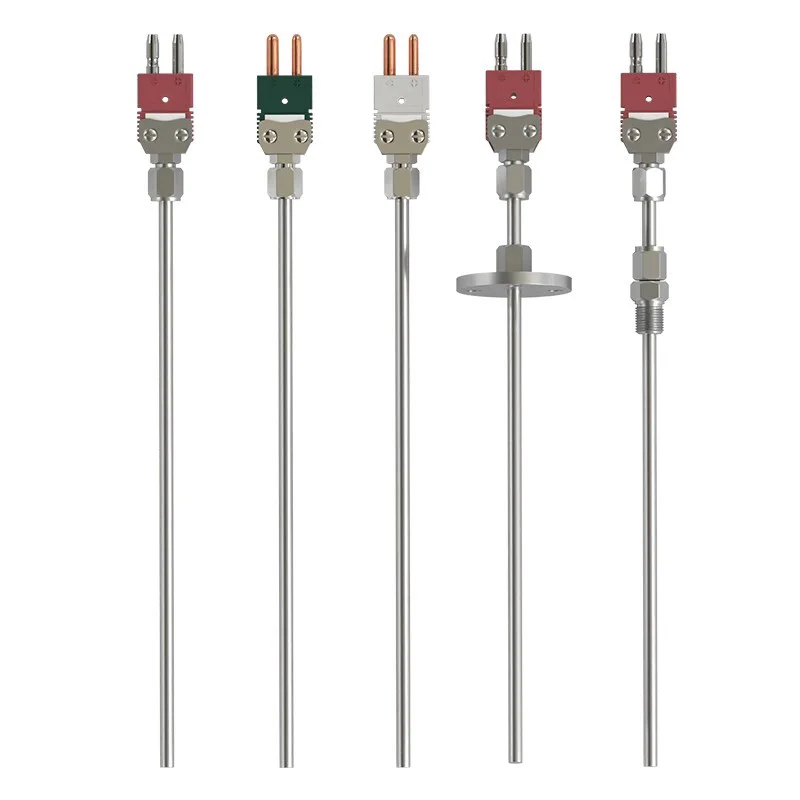

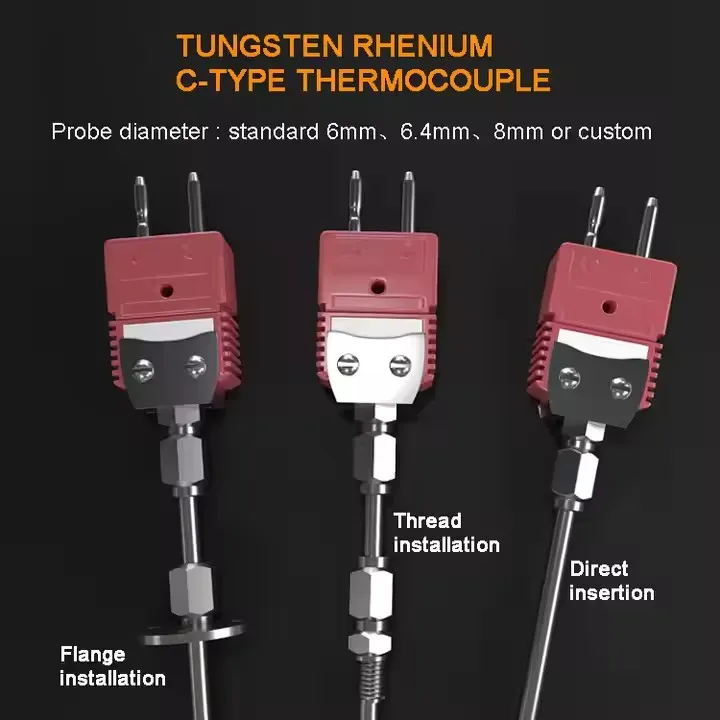

Industrial 2000C High Temperature Sensor WRe5/26 WRe3/25 C Type Tungsten Rhenium Thermocouple for Vacuum Furnace
Industrial 2000C High Temperature Sensor WRe5/26 WRe3/25 C Type Tungsten Rhenium Thermocouple for Vacuum Furnace
Description
Industrial 2000C High Temperature Sensor WRe5/26 WRe3/25 C Type Tungsten Rhenium Thermocouple for Vacuum Furnace
Product Description
Tungsten rhenium thermocouples have the characteristics of high sensitivity, high accuracy, and good stability, and can replace imported thermocouples from abroad. Solved the pain points of long delivery time and inconvenient after-sales maintenance for imported thermocouples. Currently, this series of products has been widely used in imported sintering furnaces such as Shimadzu furnaces and PVA furnaces, and has received unanimous praise from customers.The temperature measurement range of tungsten rhenium thermocouple is 0-2300 ℃, with three division marks: WR5/26, WR3/25, and WR5/26. The high-pressure resistant tungsten rhenium thermocouple is based on the high-temperature tungsten rhenium thermocouple, and an internal high-pressure impact resistant device is added, which can withstand a maximum pressure of 20Mpa. As a secondary protection device, it can effectively prevent furnace pressure leakage (high-temperature and high-pressure gas inside the furnace, high-temperature and high-speed substances inside the furnace, etc. rushing out of the furnace) in case of accidental damage to the thermocouple sleeve, avoiding equipment damage, product scrapping, personnel injury and other situations.
Specification
High temperature thermocouple | High temperature and high pressure thermocouple | |
Type | WR5/26 Commonly used | WR5/26 Commonly used |
WR3/25,WR5/20 custom | WR3/25,WR5/20 custom | |
Accuracy | ±1.0%|T| | ±1.0%|T| |
custom ±0.5%|T| | custom ±0.5%|T| | |
Temperature measurement range (℃) | 0-2200℃ | 0-2200℃ |
Pressure range (MPa) | / | 0-20MPa (at room temperature for pressure resistant devices) |
Material of protective tube | High temperature alloys, corundum, tungsten, molybdenum, tantalum, sapphire | Tungsten, molybdenum,tantalum, sapphire |

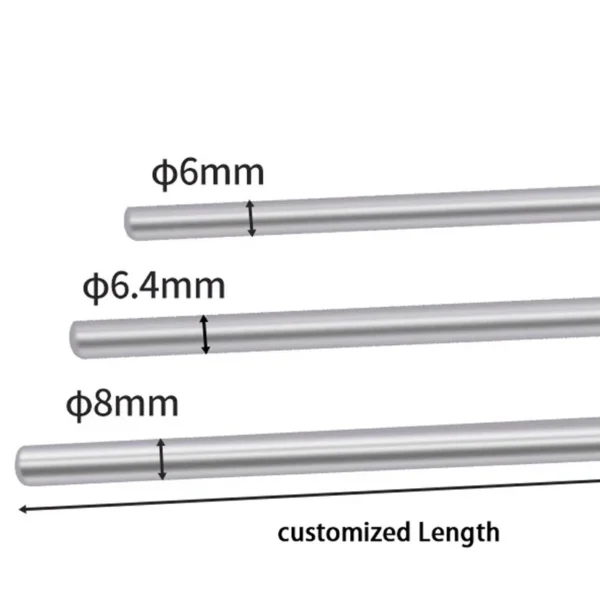

Protection tube diameter | φ3.2,φ4,φ6,φ6.35,φ8,φ9,φ10,φ12,φ16 | φ3.2,φ4,φ6,φ6.35,φ8,φ9 |
Usage environment | Inert atmosphere, vacuum, reducing atmosphere, etc | Inert atmosphere, vacuum, reducing atmosphere, etc |
Application industry | Powder metallurgy industry, hard alloy industry, new ceramic industries such as silicon carbide, silicon nitride, aluminumnitride, photovoltaic new energy, carbon based composite materials, semiconductor electronics industry, etc | Powder metallurgy industry, hard alloy industry, new ceramic industries such as silicon carbide, silicon nitride, aluminumnitride, photovoltaic new energy, carbon based composite materials, semiconductor electronics industry, etc |
Probe

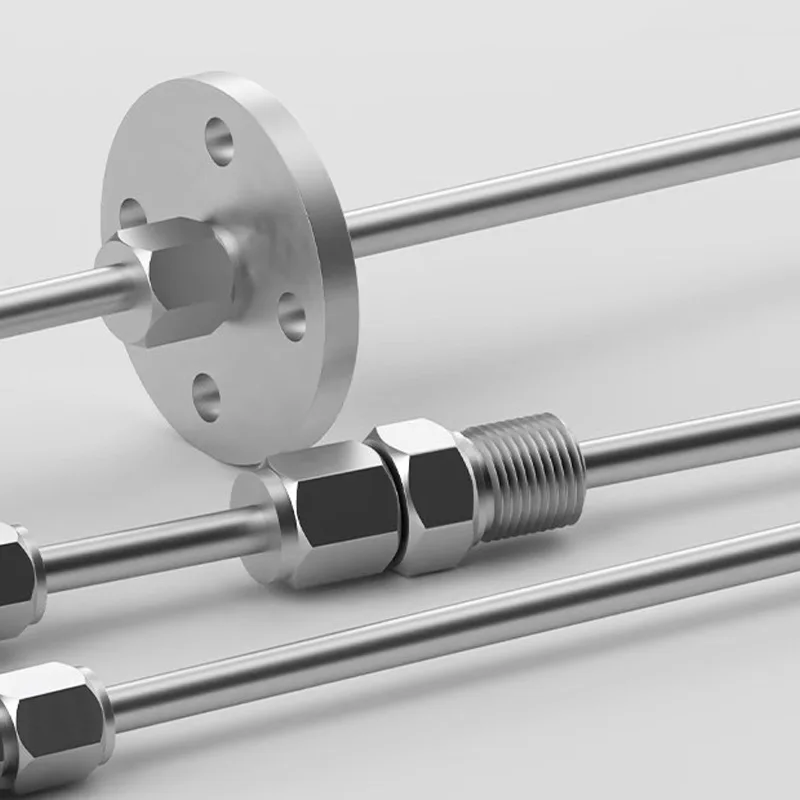

Customizable tungsten tubes and tantalum tubes
Conector
Plug
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
