High Temperature WRP-100 Type 1600c S/R/B Platinum Rhodium Thermocouple S Type Thermocouple for Muffle Furnace Electric Kiln
High Temperature WRP-100 Type 1600c S/R/B Platinum Rhodium Thermocouple S Type Thermocouple for Muffle Furnace Electric Kiln
Description
High Temperature WRP-100 Type 1600c S/R/B Platinum Rhodium Thermocouple S Type Thermocouple for Muffle Furnace Electric Kiln
Product Description

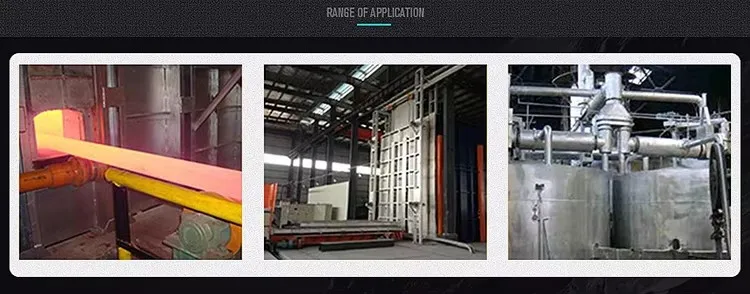

Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, ceramics. It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
Specification
Product name | Platinum rhodium thermocouple |
Type | S |

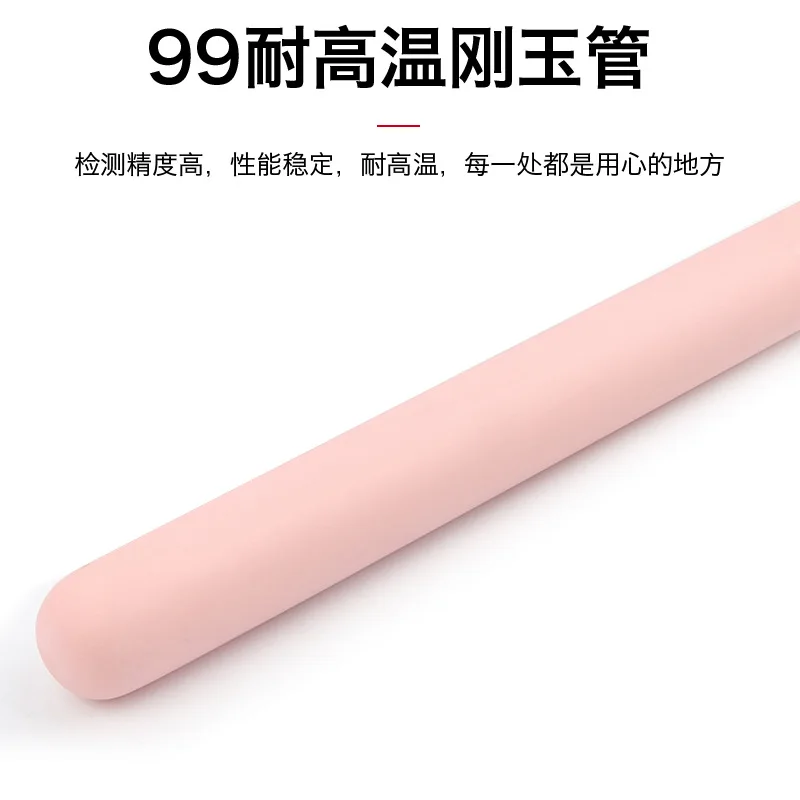

Material | 99% high temperature corundum tube, Or GH3039 high temperature alloy tube or SIC protection tube |

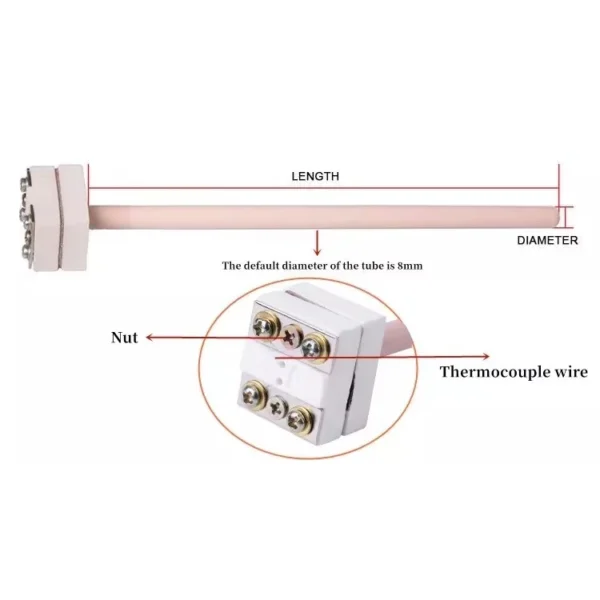

size | 8*150mm |
Temperature range | 0°F-2372°F (0°C-1300°C) (long term)0-1600℃ (short term) |
ConductorMaterial | Type | Graduation | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
