Probe Bending High Temperature Sensor Thermocouple k Type Wrnk191
High Temperature Sensor Thermocouple: Durable temperature sensor with high temperature resistance, ideal for measuring temperature in furnaces, kilns, and other extreme high temperature environments.
Description
Probe Bending High Temperature Sensor Thermocouplek Type Wrnk191
Product Description
Armored thermocouple can bend, high pressure resistance, heat resistance, heat fast response time and strong and durable wait for an advantage, it has to do with prefabricated thermocouple, heat resistance, as measure temperature sensor, and display instrument, instrument and electronic regulator usually used, at the same time also can be used as a prefabricated thermocouple, thermal resistance of thermal components. It can directly measure the temperature of liquid, vapor and gas media and solid surfacein various production processes from 0℃ to 1100℃(thermocouple), -200 ℃ to 500℃(thermal resistance).
Armored Thermocouple Features:①Less thermal response time, reduce the dynamic error; ②Flexible installation and use; ③Large measurement range; ④High mechanical strength, good pressure resistance
Specification
Product name | Armored Thermocouple |
Type | Default K type (can be used as PT100/J/T/E/N, etc.) |
Product model | WRNK-191 |
Temperature range | 0-1100 degrees |
Probe diameter | There are 0.5/1.5/2/2.3/2.5/3/4/5/6/8/10 diameters for selection |
Probe length | Customized according to customer requirements |
Lead length | The default lead length is 1500mm under the price, which can be customized according to customer requirements |
Probe material | SS321, SS316L, SS310S, SS446, incl600, incl800, etc. |
Reminder: The larger the probe diameter, the better the temperature resistance effect.
Buyers are requested to provide the actual measurement range as much as possible so that we can adapt to the appropriate diameter and material.
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
Stainless steel probe
Choose national standard 304 stainless steel raw material.
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
Model | Graduation | Temperature Range°C | Protective Tube Material | Mounting Fixtures |
WRPK-231 | S | 0~1300 | GH3039 | No fixture |
WRMK-231 | N | 0~1100 | GH3039 | |
0~800 | 1Cr18Ni9Ti | |||
WRNK-231 | K | 0~1100 | GH3030 | |
0~800 | 1Cr18Ni9Ti | |||
WREK-231 | E | 0~600 | 1Cr18Ni9Ti | |
WRCK-231 | T | 0~350 | 1Cr18Ni9Ti | |
WRFK-231 | J | 0~500 | 1Cr18Ni9Ti |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Diameter(mm) | Thermocouple | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
Type | Graduation | Tolerance Class | |||
Ⅰ | Ⅱ | ||||
Tolerance Value | Measuring Range°C | Tolerance Value | Measuring Range°C | ||
WRN | K | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004/t/ | 375~1000 | ±0.0075/t/ | 333~1200 | ||
WRM | N | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004/t/ | 375~1000 | ±0.0075/t/ | 333-1200 | ||
WRE | E | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004/t/ | 375~800 | ±0.004/t/ | 333~900 | ||
WRF | J | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004/t/ | 375~750 | ±0.004/t/ | 333~750 | ||
WRC | T | ±1.5°C | -40~+125 | ±1°C | -40~+133 |
±0.004/t/ | 375~350 | ±0.0075/t/ | 133~350 |

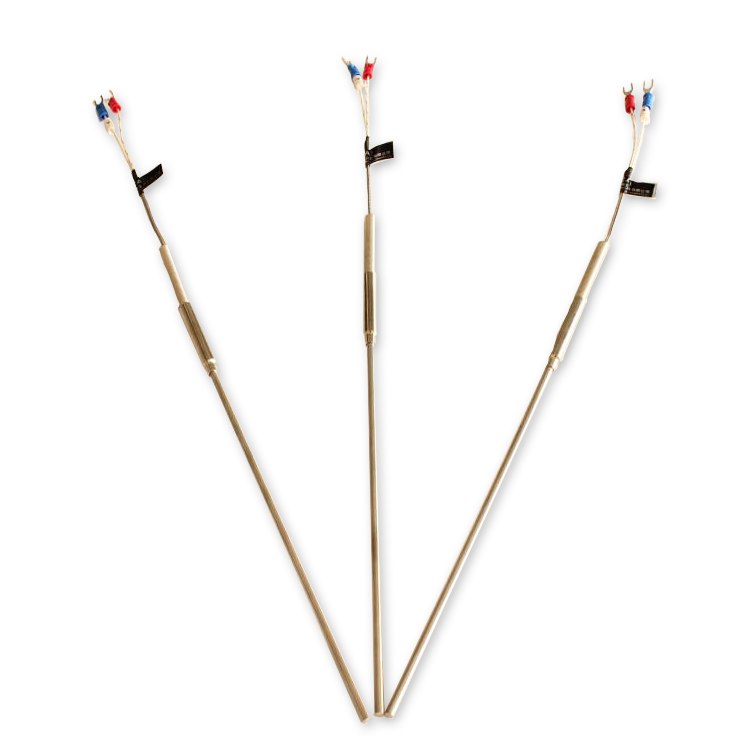

Product show
