High Quality Bottom Type Transformer Bimetal Thermometers Thermometer Series Industrial Stainless Steel Bimetallic Thermometer
Description
Product Description

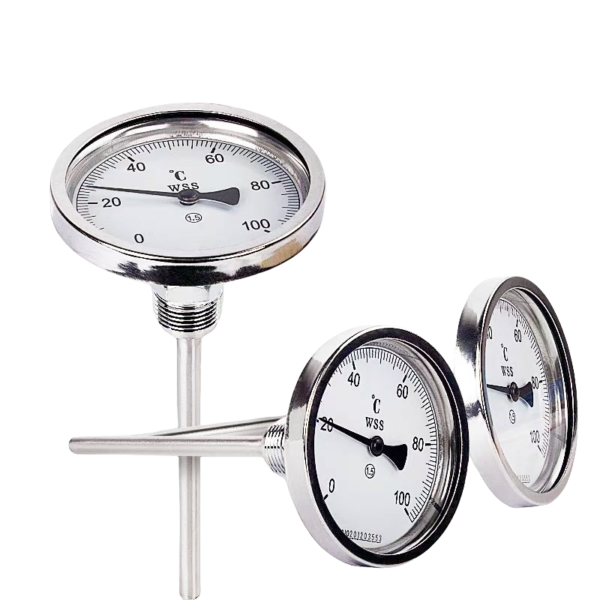

Wss311/411 Bimetallic Thermometer Stainless Steel Boiler Pipe Industrial Temperature Gauge Axial Universal Radial
The WSS311/411 bimetallic thermometer is based on a combination of two metals with different coefficients of linear expansion. When the temperature changes, the two metals expand to different degrees of heat, driving the pointer to deflect to indicate the temperature. The temperature-sensing element is a hot bimetallic strip wound into a threaded shape, installed in a protective sleeve. One end is fixed as the fixed end, and the other end is connected to a fine shaft as the free end, with the free end connected to the pointer. When the temperature changes, the free end of the hot bimetallic strip rotates, driving the pointer to indicate the corresponding temperature on the scale.
Please confirm the following parameters before purchasing
1. Structural form
2. Dial diameter
3. Precision grade
4. Installation form
5. Insertion depth
6. Pipe diameter
7. Temperaturemeasurement range
Specification
Specification and model | WSS401/411-VD Bimetallic thermometer |
Dial diameter | 100mm（Customizable diameters such as 60/150mm are available) |
Diameter of the temperature measuring rod | 10mm(The pipe diameter can be customized) |
Interface size | M27*2(Movable thread) |
Measurement range | 0-500℃ |

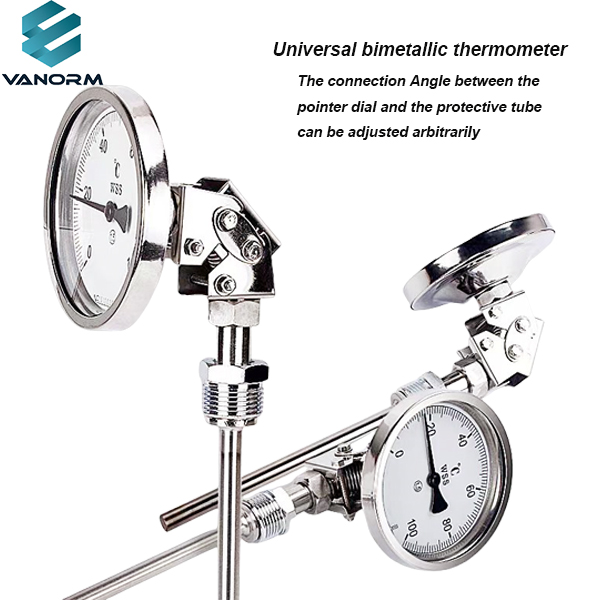

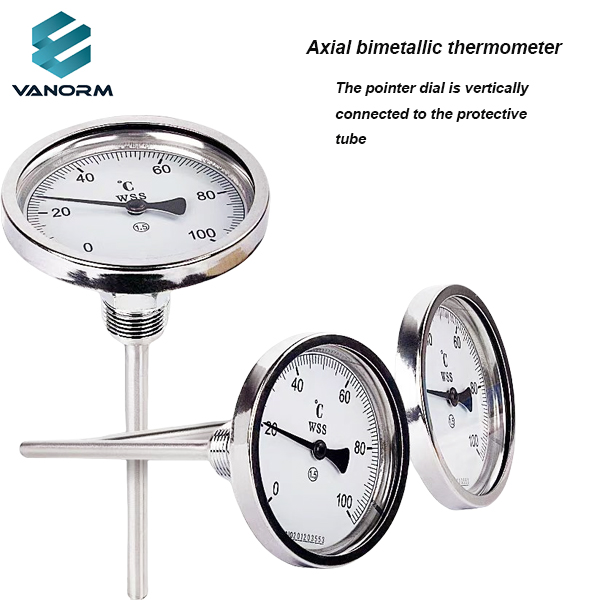

Installation form | Radial/Axial/universal |
Accuracy | Level 1.5 |
Material of probe rod | Stainless steel |
Thermal response time | ＜40s |
Protection grade | IP65 |
Connection method | No fixed device, movable internal and external threads, fixed thread/flange, ferrule thread/flange |
Installation Instructions
FAQ
1. Q:Who are we?
A:Our factory was established in 1996, and the foreign trade sales team was established in 20212.Q: Can we use our own forwarder?
A: Of course. We can ship it to them.
3.What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T, PayPal, Cash;Language Spoken: English,Chinese
4. Q: How do I place an order?
A: Please email your order to us and we will confirm with you.
Before quotation, we would like to confirm the product information with you, such as size and quantity. In any case, pleasecontact us directly via email or online message.
5. Q: How do we guarantee quality?
A: We strictly follow the quality management standards of production; Check the workshop every 2 hours; And has its own research and development team and laboratory.
6. Q:What can you buy from us?
A: Electrical appliances and Ventilation Product; If there are other needs, we can also help customers purchase.
