1/8″ Diameter EGT Probe Exhaust Gas Temperature Sensor K Type Thermocouple 0-1150 Degree Egt Sensor for 2-Stroke Engines
1/8″ Diameter EGT Probe Exhaust Gas Temperature Sensor K Type Thermocouple 0-1150 Degree Egt Sensor for 2-Stroke Engines
Description
1/8″ Diameter EGT Probe Exhaust Gas Temperature Sensor K Type Thermocouple 0-1150 Degree Egt Sensor for 2-Stroke Engines
Product Description
The Exhaust Gas Temperature Sensor is specifically designed for use in 2-Stroke Engine applications.The Enclosed Tip sensing junction provides reliable measurement of temperature changes.

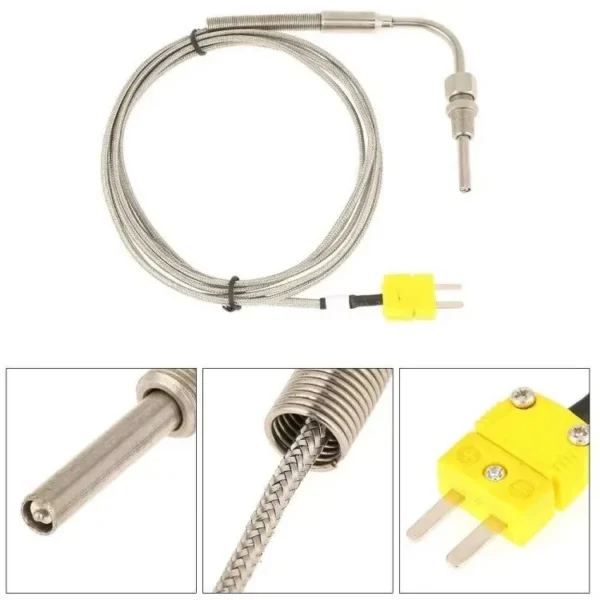

he EGT probe is 0.125″ diameter (3.175 mm) with a 90-degree bend to accommodate tight mounting locations. An adjustable (316 Stainless Steel) 1/8″ NPT compression fitting adapter is included. The EGT probe cable lead length is 6 feet (1.8 meters) or 12 feet (3.6 meters).IMPORTANT NOTE: 1/8″ probes are not recommended for applications with high Exhaust Gas velocity or mounting pre-turbo (choose a 3/16″ OD or 1/4″ OD probe). Please confirm with your instrument manufacturer that the instrument is compatible with a Type K thermocouple sensor.
Specification
Thermocouple type: | Type K |
Temperature Range: | -148°F to 2012°F range (-100°C to 1100°C) |
Accuracy: | +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error) |
Probe Diameter: | 1/8 inch (0.125 inch) (3.175 mm) |
Max Tip Insertion Depth: | 0.85 inch |
Response Time: | 550 mS |
Outer Sheath Material: | Inconel, melting point 2550°F (1400°C) |
Sheath Wall Thickness: | 0.015″ (.38 mm), MgO insulated |

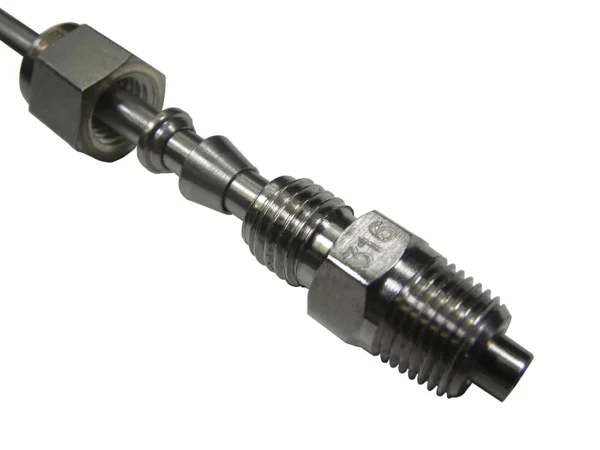

Included Compression Fitting: | 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread |
