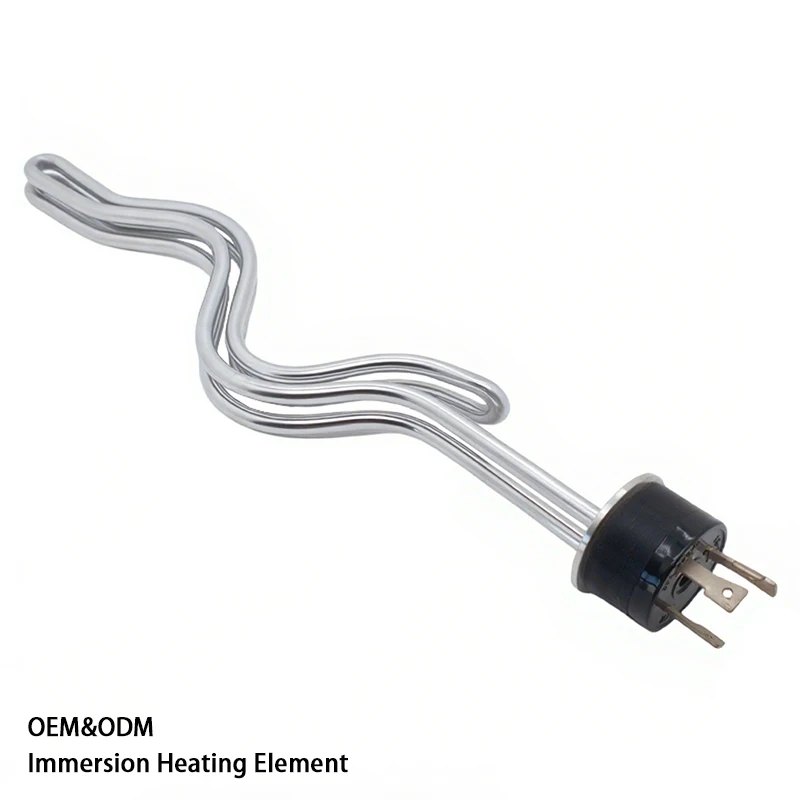

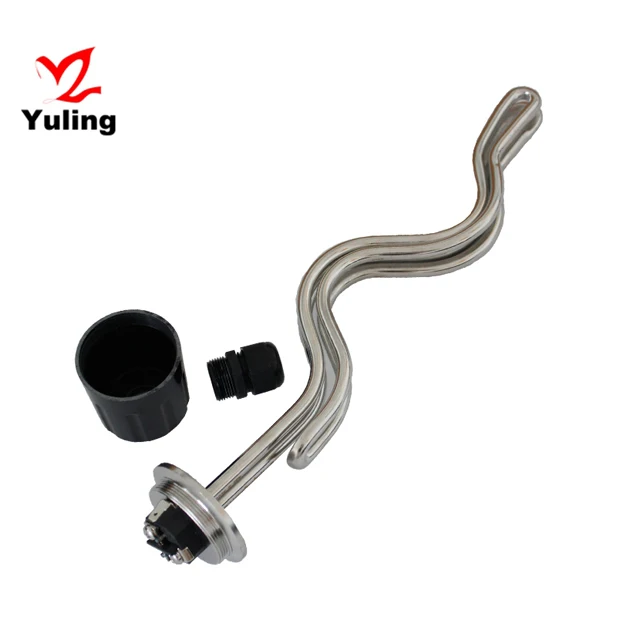

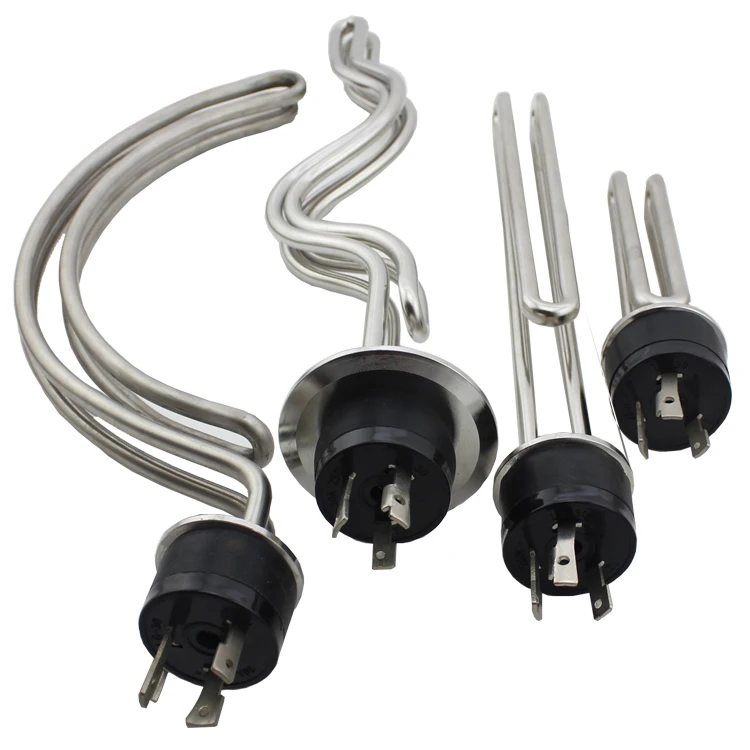

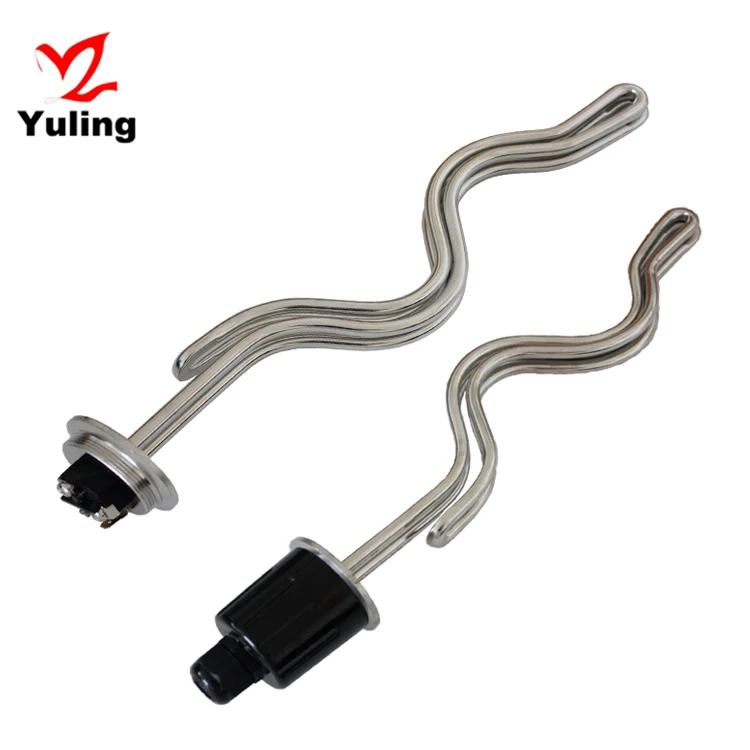

Immersion Ripple Flodback Brewing Water Tubular Heater Element Electric Heater Parts for Household and RV Brewing Applications
Immersion Ripple Flodback Brewing Water Tubular Heater Element Electric Heater Parts for Household and RV Brewing Applications
Description
Immersion Ripple Flodback Brewing Water Tubular Heater Element Electric Heater Parts for Household and RV Brewing Applications
Product Description
Specification parameter | Detail | Remark |
Sheath Material | SUS304 | Materialscan be changed to be copper,sus321,sus316L,incoloy800 as requested |
Voltage/wattage | 120V/2000W | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10% |

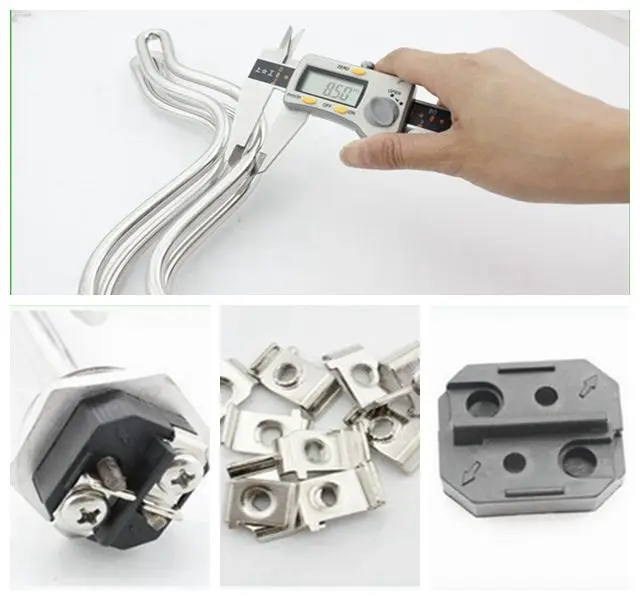

Tube Diameter | 8.5mm/0.33″ | Tube diameter can be customized as required |
Screw thread | 1″ | Other thread can be made if required |
Mgo | A | We can use other powder if requested |
Resistance wire | Ocr25A15 | Or Ni80Cr20 |
Plastic shell | Nylon | Temperature resistance 160℃ |
Leads | Stainless steel | Materials of terminal piece could be stainless iron,stainless steel if required |
Faston Terminal | Nickel plated iron | Material of terminal housing could be stainless iron,stainless steel if required |
Insulation resistance | ≥1000MΩ(cold condition) | |
Leak current | ≤0.5mA | |
Density | 7W/CM2 | |
Application area | Electric water heater |
* With 3-Wire Electrical Locking Plug (L6-30), grounded for your safety；* Easy to Install and fits Standard 1.5″ Inch tri-clamp coupler of American;* SUS304 Tri-clamp Ripple Foldback heating element provides 6500w 240v of power；* The shape is to minimize length and maximize heated surfaces；* Prevent dry firing, lime deposits, and sand that would burn out ordinary elements.
Packing & Delivery
FAQ
1. who are we?We are based in Jiangsu, China, start from 2010,sell to Oceania(50.00%),North America(30.00%),South America(10.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Enginee Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. why should you buy from us not from other suppliers?1.More than 40 years experence
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,French
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,French
