220v 2kw 3kw 5kw High Quality Industrial Electric Stainless Steel Air Finned Tubular Heaters Finned Strip Heater
Finned Tubular Heaters
Description
220v 2kw 3kw 5kw High Quality Industrial Electric Stainless Steel Air Finned Tubular Heaters Finned Strip Heater
Product Description
Finned Tubular Heaters are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation. the heaters can be produced almost any shape or size.
Technical Details | |
Construction Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
Tube Material | stainless steel 304/321/316/310S,Incoloy 800 840 |
Power Tolerance | Tolerance±10% |
Use of Alloys | Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C |
Thread | M12 M14 M16 M18 |
Watt Density | Tube watt density of 30 watts sq in-suitable for many uses |
Custom | Custom configurations, lengths, watts, volts available |
How to order ?Pls provide this informations:
Details Images
TUBE MATERIAL | FIN MATERIAL | TUBE DIA.(MM) | FIN HEIGHT (MM) | FIN THICKNESS (MM) | FIN PITCH (MM) |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ12 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-10 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 7-10 |

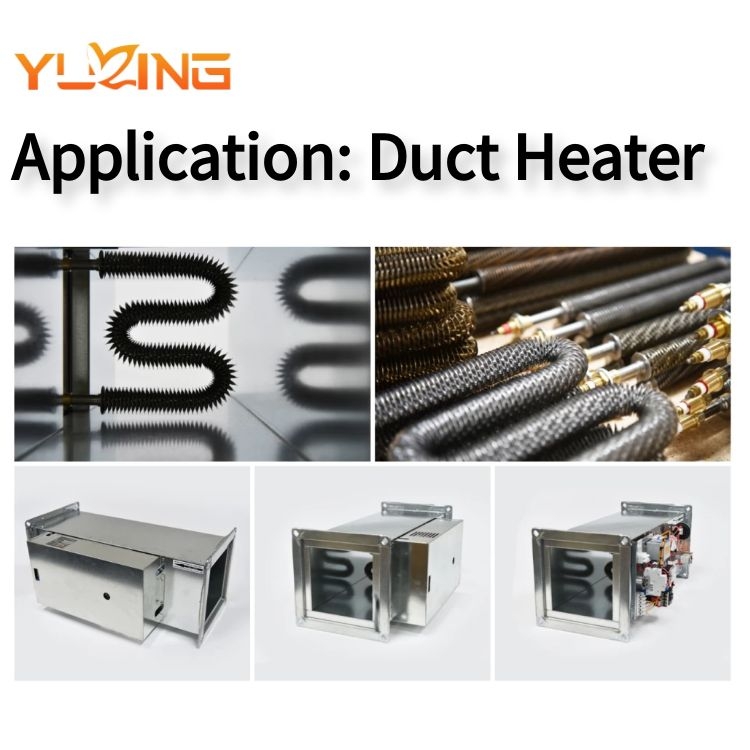

Application
Customer Evaluation
Packing & Delivery
Company Profile
At Yuling, we take pride in our commitment to quality and safety, evidenced by our certifications such as the ISO9001:2008 international quality system, CQC product safety, CE, RoHS, and UL testing. We strive to maintain the highest standards in our products and services and continuously improve our production processes.
We look forward to the opportunity to work with you and provide you with the exceptional products and services that we are known for.
FAQ
1. Who are we?We are based in Jiangsu, China, start from 2010,sell to Oceania(50.00%),North America(30.00%),South America(10.00%),Southern Europe(10.00%). We have 500 ㎡ of office and 8000 ㎡of factory. 2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Engine Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. Why should you buy from us not from other suppliers?1.More than 40 years experience
