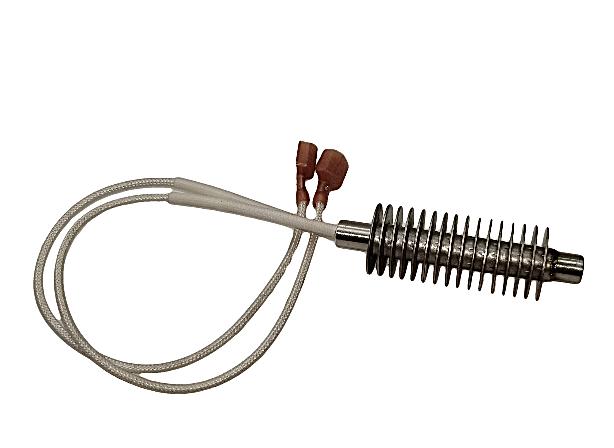

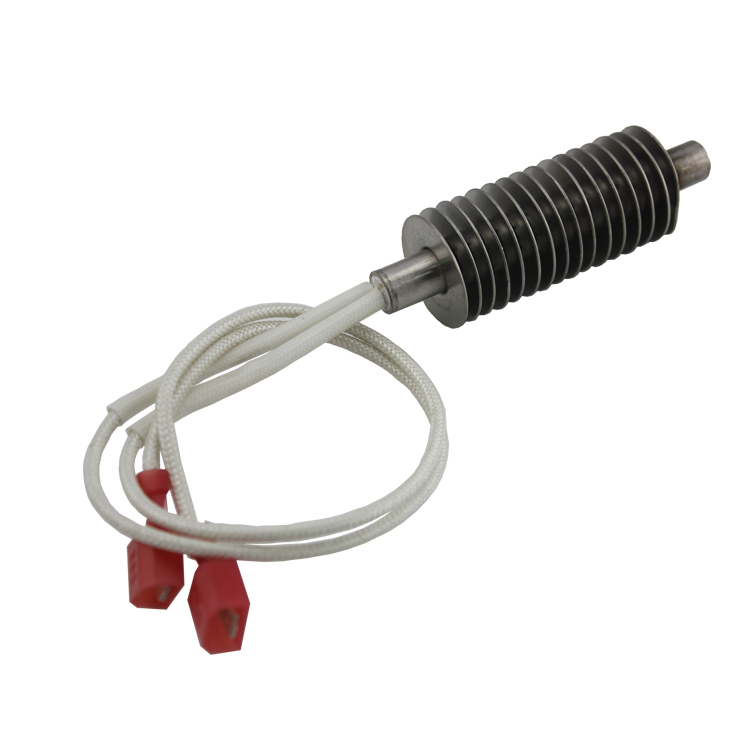

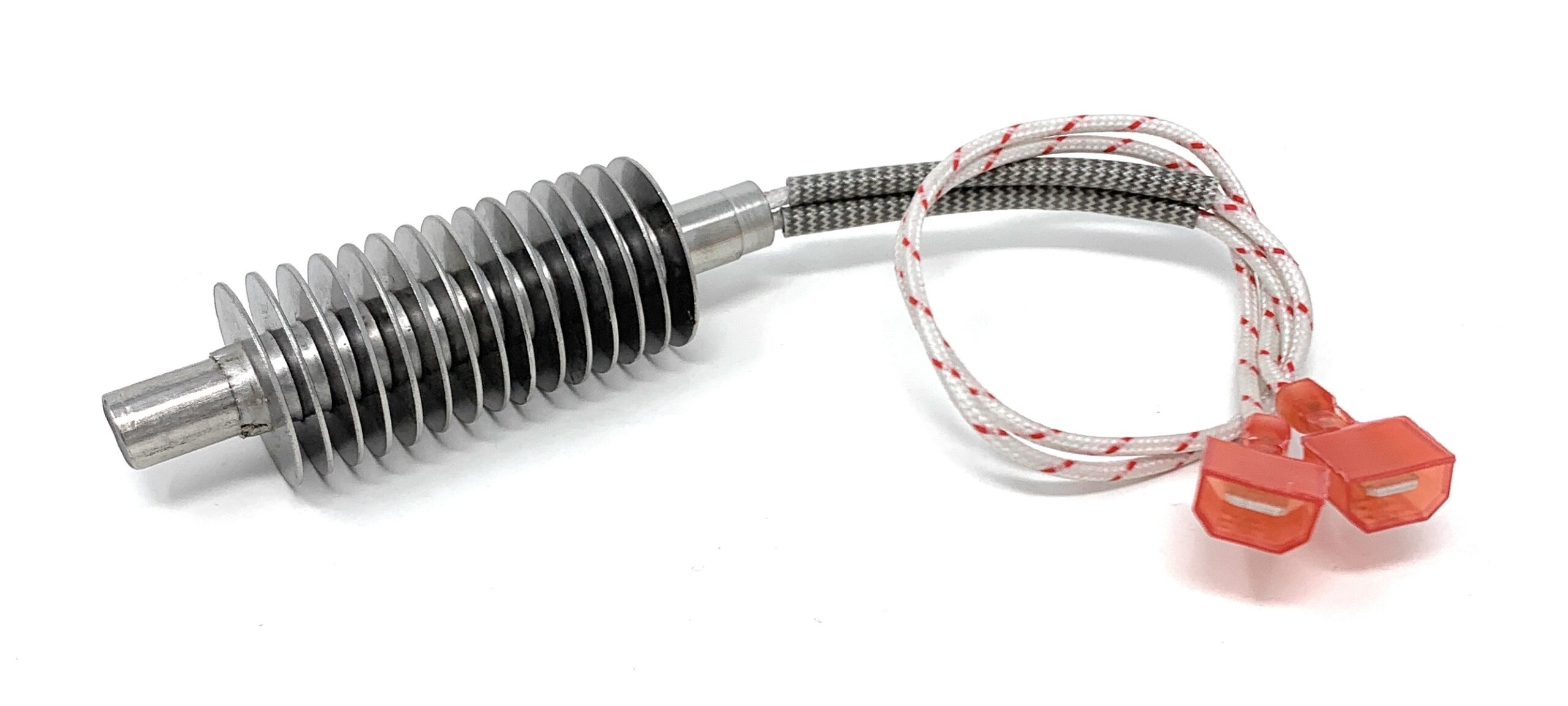

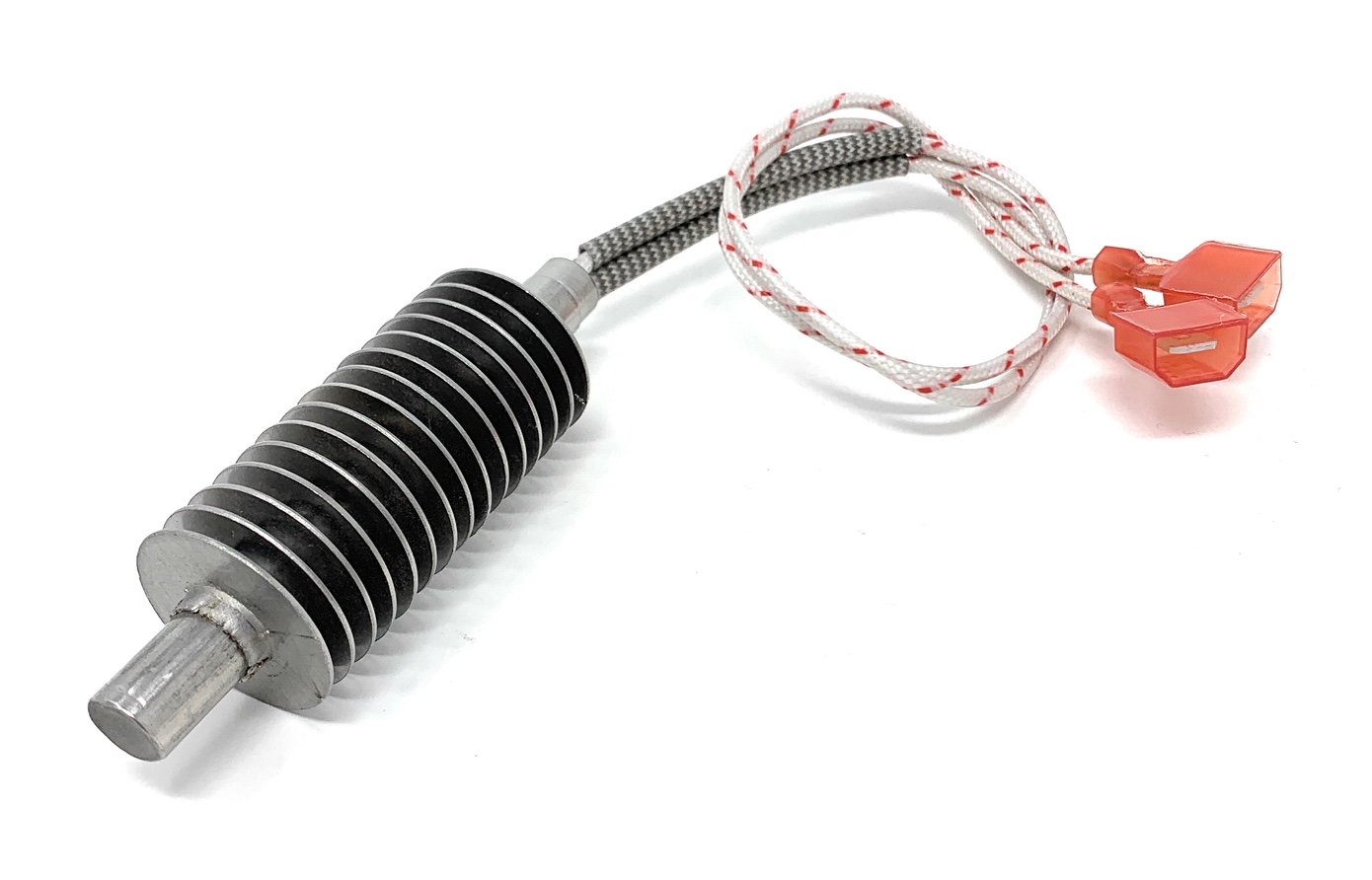

15 Fin Igniter Replacement for Harman Pellet Stoves 3-20-677200 Sprial Cartridge Heater Element
Fin Igniter Replacement for Harman Pellet Stoves is a robust igniter with fins for better heat dissipation, ensuring consistent and reliable heat output.
Description
Product Description
15 Fin Igniter Replacement for Harman Pellet Stoves 3-20-677200 Sprial Cartridge Heater Element
The item is used for wood pellet grill&fireplace igniter, with high tempereture, short heating time, long service life, low leakage current and other performance.
Model:
Fin Igniter Replacement for Harman Pellet Stoves
Resistance Heating Wire | NiCr 80/20 Wire |
Size | 3/8″ Diameter, 3 1/4″ Length |
Maximum Temperature | Instantly Heat 300℃In 10 Seconds, Max Temperature Is 870℃ |
Resistance Tolerance | +10%, -5% |
Length Tolerance | ±1 Mm |
Diameter Tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Insulation Resistance (Cold) | ≥ 500 MΩ |
Maximum Leakage Current (Cold) | ≤ 0.5 MA |
Resistance Heating Wire | NiCr 80/20 Wire |
Our Yuling factory made these seris pellet stove igniter for many years;we have many clients who sell this product on Amazon,such as CAPE CODE and so on.
If there is any other type we haven’t show on our website,pls send your drawing or sample to us;
We can provide free samples to you for testing,you can choose purchase or not according the testing result…
• Leadwire Types• End Seal Options• Lead Options• Mounting Options• Built-In Thermocouple
Application
Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills.It has a high efficiency (more than 90%) of ignition and very easy to install before operating.•Wood pellet stove •Wood pellet boiler •Wood pellet burner•Wood chips burner •Straw burner •Other biomass burner
