Description

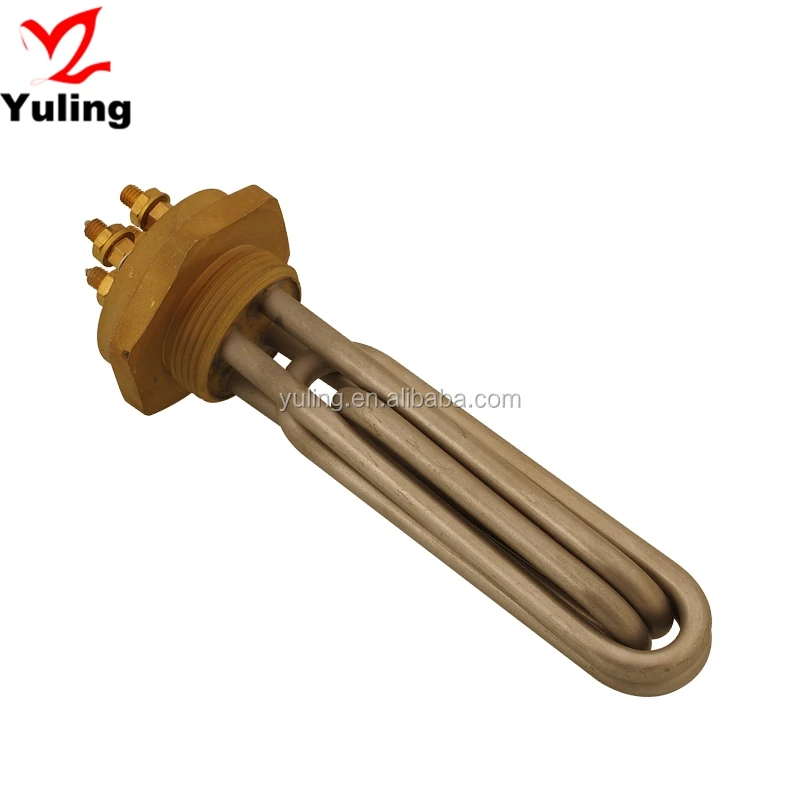

Heating element CBRL/ Brass flange heater of electronic heating element
Immersion heaters/water tubular heaters/immersion water heating element are one of the most widely used methods for heating gases and liquids (such as water, oil heat transfer fluid and corrosion solution). Designed for use in tanks and pressurized vessels, they are easy to install and maintain to provide heat for many process. The direct immersion method is energy efficient and easily monitored and controlled. To heat up water, oil, molten salts, chemicals etc. in laboratory and pilot plants of various complicated dimensions.
Electric water heating elements are widely used in domestic or commercial water dispenser,coffee machines,water and oil heaters,showers water machine,dishwashers,etc.
Features:
1.Power and configuration can be determined according to customers’ requirements
2.Excellent corrosion resistance
3.Can also be formed and shaped into various geometries for radiant heating and contact surface heating applications
4.The material and the specification can change with your requirement
Specification parameter | Detail | Remark |
Name | Electric heating element | |
Insulation resistance | ≥1000MΩ(cold condition) | |
Leak current | ≤0.5mA | |
Material | Brass | Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested |
Voltage/wattage | 230v/1200W | Voltage/Wattage can be customized as required,and Wattage tolerance(cold condition):+5%-10% |
Diameter | 6.5mm | Tube diameter can be changed to 6.6mm,8.0mm,10.0mm or others as requested |
Resistance powder | Magnesium oxide | We can use other powder if requested |
Faston terminal | Nickel plated iron | Materials of terminal housing could be stainless iron,stainless steel if required |
Leads | Stainless steel | Materials of terminal piece could be stainless iron,stainless steel if required |
Thermal fuse | Iron chromium | Material of thermal fuse can be nickel chromium wire if requested |
Application | Roaster,bread toaster,stove,furnace,water heater,oil heater and other home appliances |
Characters:
1.Quick hot
2.Extremely good insulation
3.High quality
4.Easy installation
5.High safety
6.Low cost & long life
7.According to thermal cycling work condiction of equipment,we adopt excellent raw material to meet the demand of corrosion and high temperature resistance.
8.Special manufacturing technology guarantees resistance value will be 1000MΩ after long-time placement.
9.Specially technical treatment on tube surface to avoid generating water scale.
Pls advise when inquiry:
1.Type of Heater2. Wattage and Voltage3. Diamensiom of the tube and approx length of the heating tube
4. Drawing required for special configuration
5.Working environment
6.Trial or sample order is also welcome.
Taizhou Yuling Electrical Appliance Co.,LTD (named Jiangyan Yuling Electric Equipment Factory)is one of the professional manufacturers engaged in tubular electric heating elements. and havenearly 40 years’ experience in this field.YuLing is founded in 1996,located in Jiangsu Province, Taizhou City, JiangYan District, QinTong Industrial Part.
YuLing is some well konwn companys’ suppliers,such as Haier, Acuma,Sampux,LiRen and so on.Our company also has acquired GB/T19001-2008 International quality system certification, CQC product safety certificate, European CE and RoHS certification.
FAQ:
1.Q:Are you a factory or trading company? A:We are a factory.
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Taizhou City, Jiangsu Province, China, about 4 hours bus ride from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples? A: We are honored to offer you samples.
4.Q:Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements or drawings.
5.Q:How does your factory do regarding quality control? A:Quality is priority.Shazi people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO, CQC etc certification.
….
