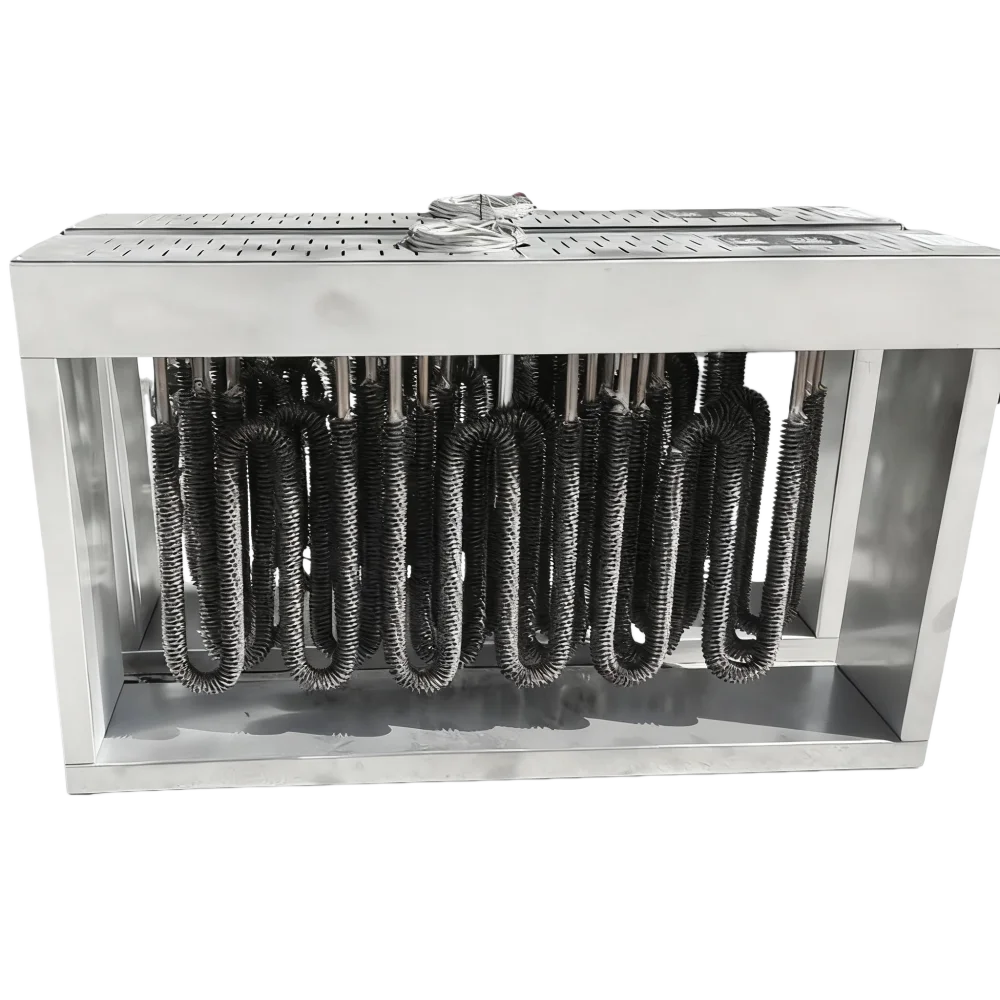

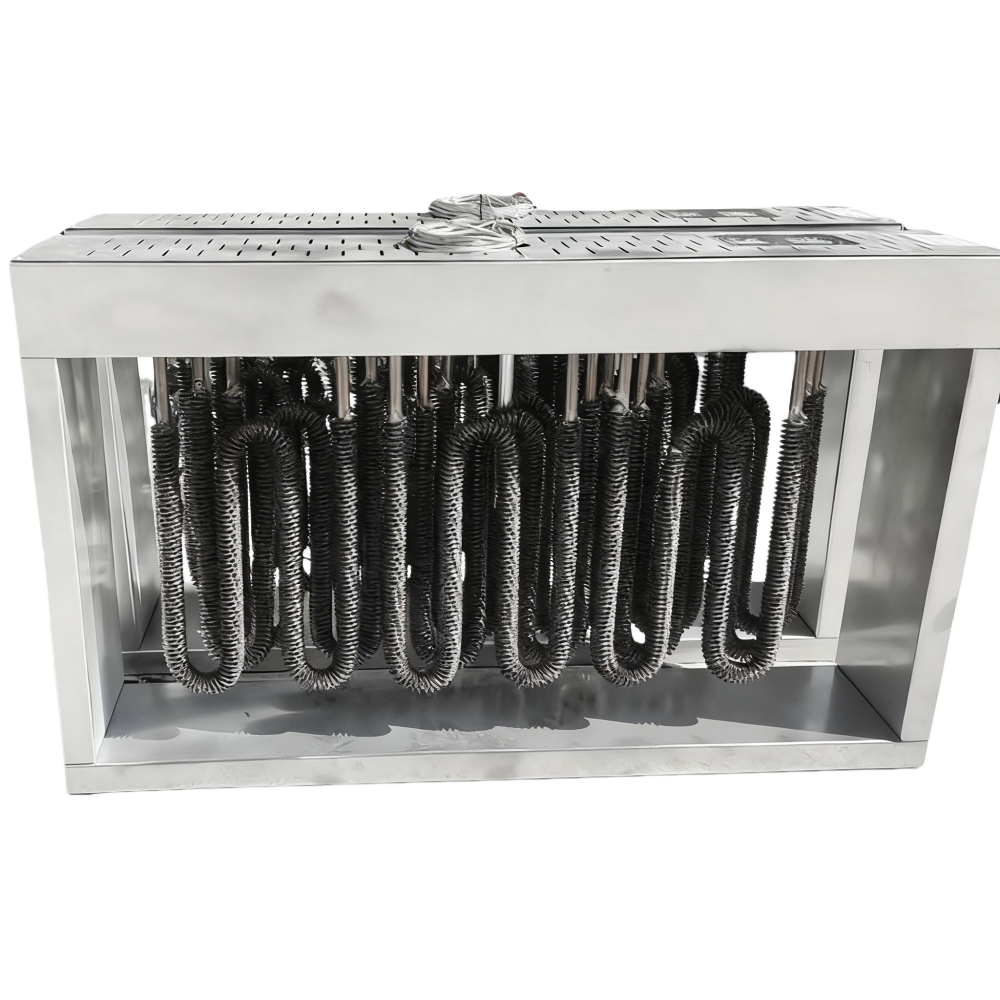

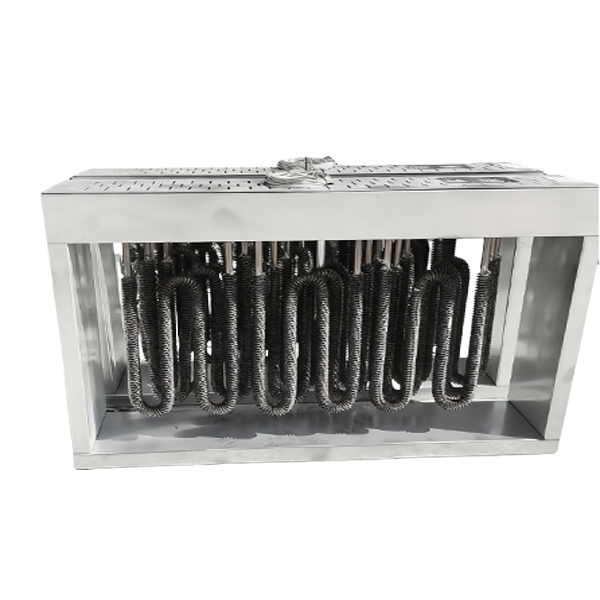

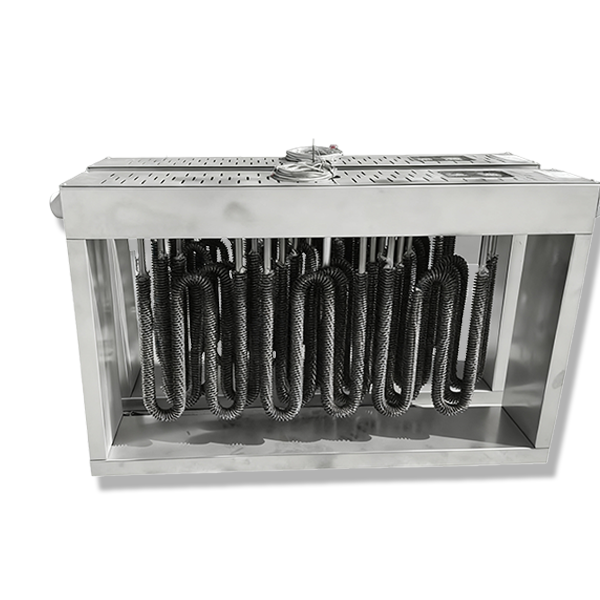

Electric Stainless Steel Industrial Air Duct Frame Heater for Farm Use Customizable Heating Air Finned Tube Heating Element
$472.34
Description
Product Description
Electric Stainless Steel Industrial Air Duct Frame Heater for Farm Use Customizable Heating Air Finned Tube Heating Element
Finned heating tubes are highly efficient heat exchange components. By adding a finned structure to the surface of the base tube, they significantly expand the heat exchange area and optimize the heat transfer efficiency. They are widely used in industrial heating, energy recovery, and high-temperature process fields. Its core design utilizes the multi-directional contact between the fins and the fluid to enhance the heat conduction rate, achieving rapid temperature rise and precise temperature control.
characteristics
★ High-efficiency heat conduction: By adopting an integrated forming process of fins and base tubes , the thermal resistance is reduced by optimizing the contact pressure, thereby enhancing the heat transfer efficiency.
★ High-temperature resistance and corrosion resistance: The base pipe is made of stainless steel, nickel-based alloy and other materials, and is treated with surface anti-corrosion. It can operate stably in high-temperature , and is suitable for harsh working conditions in petrochemical, power and other industries.
★ High-temperature resistance and corrosion resistance: The base pipe is made of stainless steel, nickel-based alloy and other materials, and is treated with surface anti-corrosion. It can operate stably in high-temperature , and is suitable for harsh working conditions in petrochemical, power and other industries.
★ Structural strength and adaptability: The wall thickness of the base tube and the density of the fins have been preciselycalculated, taking into account both the pressure-bearing capacity inside the tube and the external mechanical strength, meeting the requirements of high-pressure and high-temperature scenarios
★ Easy maintenance: Supports compressed air, high-pressure water or steam cleaning, effectively solvingthe problem of dust accumulation, reducing maintenance costs and extending service life.
Specification
Type | Air Duct Heater |
Brand | Vanorm |
Product name | Air Duct Heater |
dimension(l*w*h) | 580*280*390mm |
MRQ | 1 piece |
Sample | Provided by negotiation |
Power Source | Electric |
Tube material | Stainless Steel201/304/321/316L/310S/Incoloy800/800H/840 |
Application | Heating of Industrial Ventilation Systems，Ventilation Heating in Drying Equipment，Heating in Air Purification Systems |
Advantage | Low – Cost/High – Reliability |
echnical Details | |
Construction Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
Tube Material | stainless steel 304/321/316/310S,Incoloy 800 840 |
Ppwer Tolerance | Tolerance±10% |
Use of Alloys | Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C |
Thread | M12 M14 M16 M18 |
Watt Density | Tube watt density of 30 watts sq in-suitable for many uses |
Custom | Custom configurations, lengths, watts, volts available |
