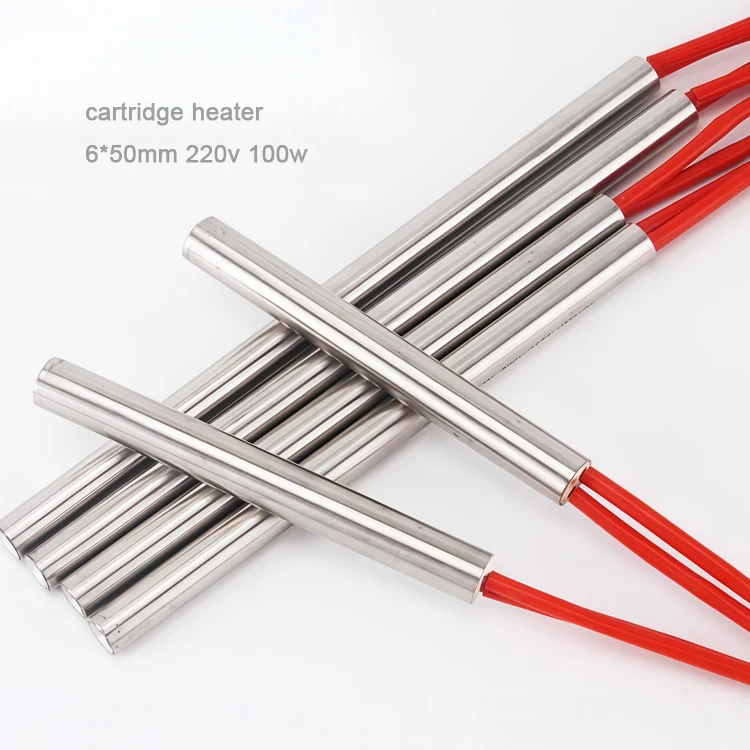

6*50mm 100W OEM Electric Cartridge Heater 220v Stainless Steel Industrial Pencil Heater Heating Element for Packing Machine
6*50mm 100W OEM Electric Cartridge Heater 220v Stainless Steel Industrial Pencil Heater Heating Element for Packing Machine
Description
6*50mm 100W OEM Electric Cartridge Heater 220v Stainless Steel Industrial Pencil Heater Heating Element for Packing Machine
Product Description

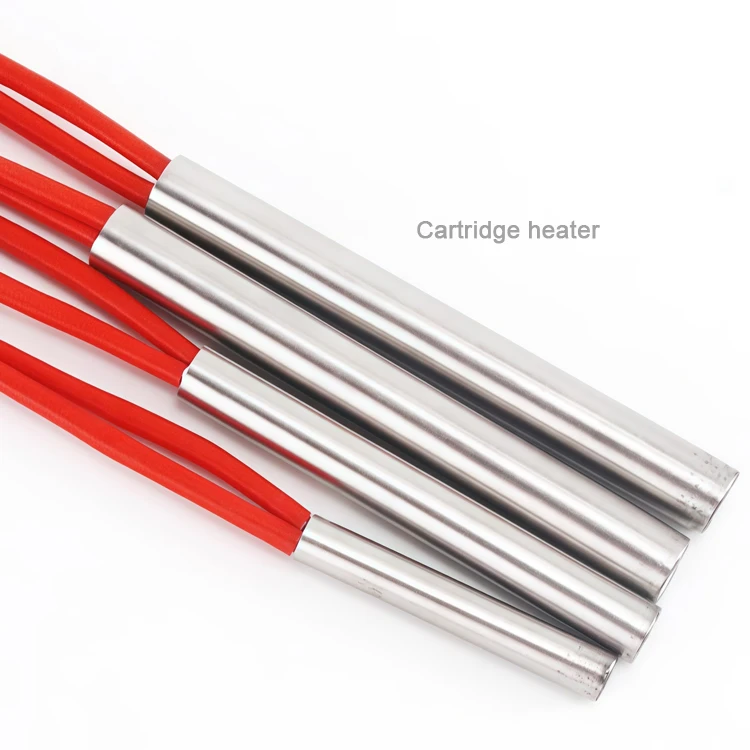

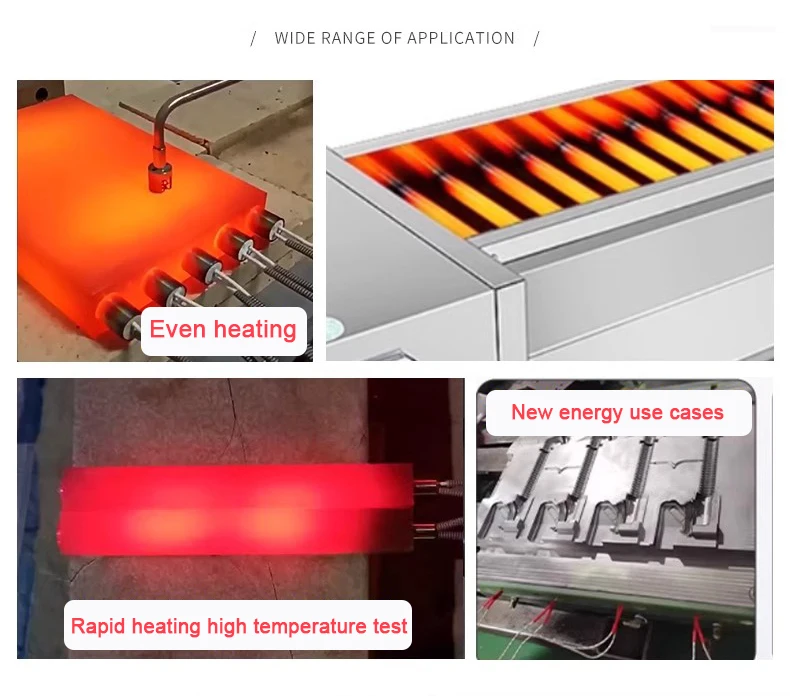

Cartridge Heater220v 600w ss304 stainless steel sheath single head heating tube electric cartridge heater is a piece of equipment, made of MgOpowder or MgO tube, ceramic cap, resistance wire(NiCr2080), high temperature leads and seamless stainless steelsheath(SS304,321,316, Incoloy800,840).Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilledholes.This heater is also multi usage for air heating or immersion liquid heating with screws.
Features
1. Tube diameter: Φ3mm-Φ25mm2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc3. Insulation Material: High purity MgO Power 4. Resistance Wire element: Ni-Cr or FeCr 5. Lead Wire Connectiom Choice: External or Internal6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: Teflon or Silicone)
Outer Sheath Material | Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840 |
Resistance Heating Wire | Nichrome 8020 resistance wire |
Wattage Tolerance | +5%, -10% |
Resistance Tolerance | +10%, -5% |
Voltage Available | 12 to 600 volts customied |
Maxium Heating Temperature | 800 Degree Celsius |
Length Tolerance | ±1mm |
Diameter Tolerance | ±0.02mm |
Standard Cold Size | 5-10mm |
Insulation Resistance (cold) | ≥ 500 MΩ |
Maxium Leakage Current (cold) | ≤0.5 mA |

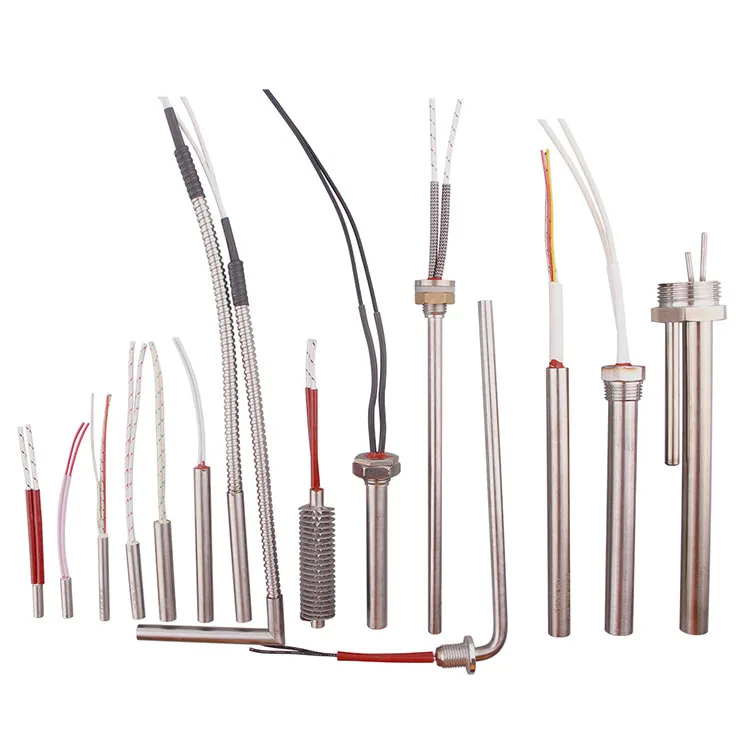

Lead Orientation | A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Customer Evaluation
Packing & Delivery
Plastic bag & Carton box
Company Profile
FAQ

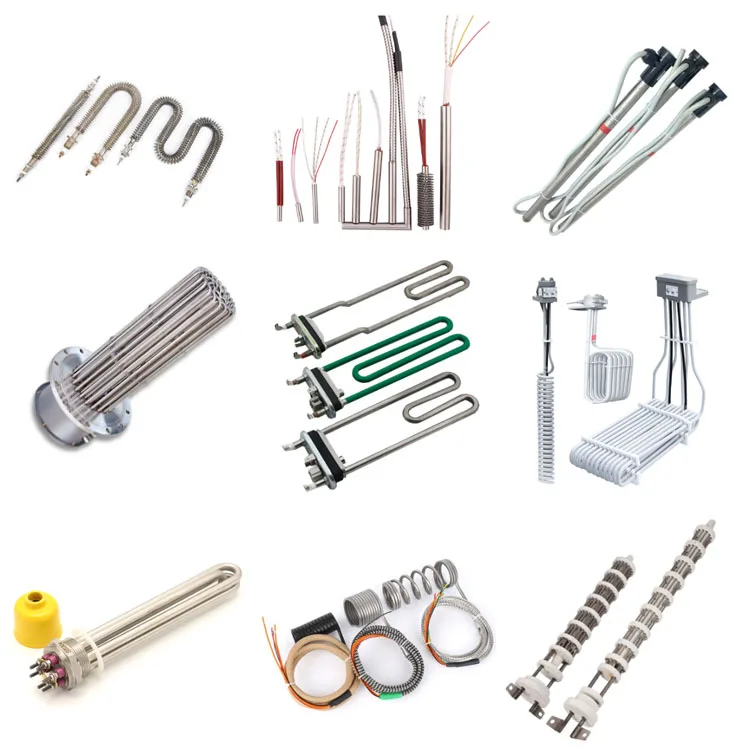

1. who are we?We are based in Jiangsu, China, start from 2010,sell to Oceania(50.00%),North America(30.00%),South America(10.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Enginee Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. why should you buy from us not from other suppliers?1.More than 40 years experence
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,French
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,French
