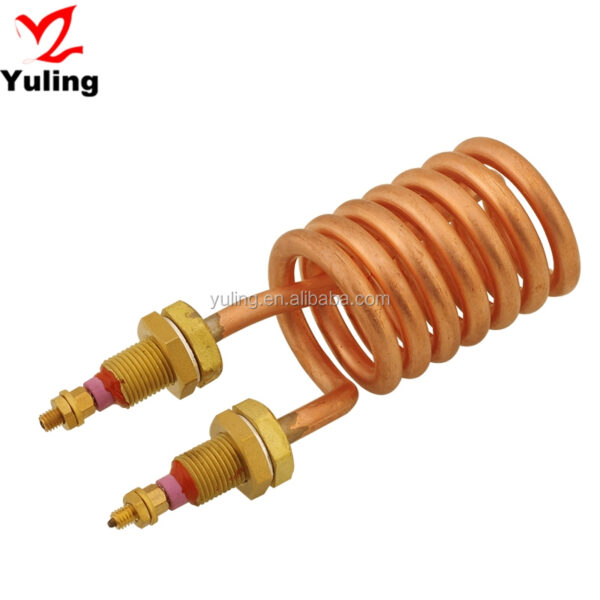

copper water heater element 4500w immersion water resistance heater element
Copper water heater element is a durable and efficient heating element made of copper used in water heaters for heating water for household use.
Description
copper water heater element 4500w immersion water resistance heater element
| Specification parameter | Detail | Remark |
| Sheath Material | sus304 | Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800as requested |
| Voltage/wattage | 230V/ 2300W | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance (cold condition)+5%-10% |
| Tube Diameter | 8mm | Tube diameter can be changed to 8.0mm,8.5mm,or other as requested |
| Resistance Powder | Magnesium oxide | We can use other powder if requested |
| Resistance Wire | Ni80Cr20 | Ocr25Al5 or other material if requested |
| Length*Width*Heigth | 27.5cm*6cm*6cm | |
| Leads | sus304 | Materials of terminal piece could be stainless iron,stainless steel if required |
| Screw Thread | 1 1/2′ | Other thread can be made if required |
| Shape | U or as requested | |
| Warranty | 10000 working hour or at least three year | |
| Weight | 500g | |
| Case pack | 38piece | |
| packing volume | 0.042m³ |
About Factory
Taizhou Yuling Electrical Appliance Co.,LTD (named Jiangyan Yuling Electric Equipment Factory)is one of the professional manufacturers engaged in tubular electric heating elements.and havenearly 40 years’ experience in this field.YuLing is founded in 1996,located in Jiangsu Province, Taizhou City,JiangYan District, QinTong Industrial Part.
Production Equipment
Certifications
Customer Inspection
Sales Card
Additional information
| Material | T2 copper |
|---|---|
| Certification | ROHS, CE, CQC, ISO |
| Voltage | 230V or as required |
| Power | 4500W or as required |
| Warranty | 3000 working hours |
| Usage | Boile Rburner |
| Keywords | heating element |
| Replace | YES |
