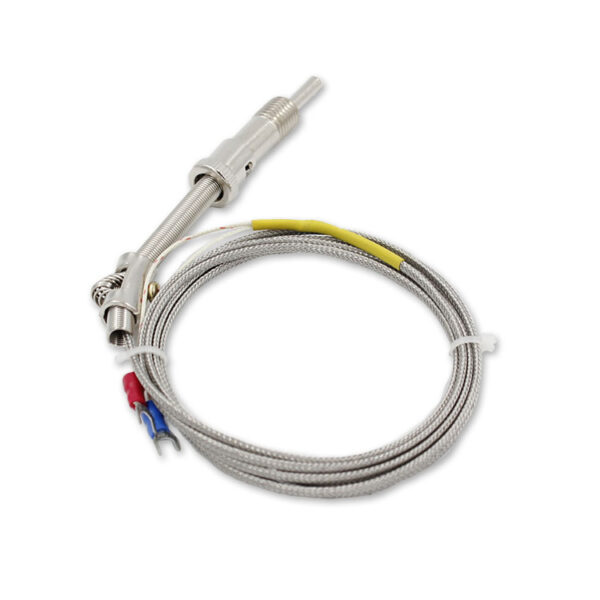

E/K Compression Spring Thermocouple Shielded Wire Screw Spring Bayonet Temperature Sensor Probe
Highly accurate compression spring thermocouple design, suitable for measuring temperature in tight spaces or high-vibration environments.
Description
E/K Compression Spring Thermocouple Shielded Wire Screw Spring Bayonet Temperature Sensor Probe
Product Description
Compression Spring Thermocouple is the most widely used temperature device in temperature measurement, its main characteristics is a wide range of temperature measurement K type 0℃ ~ 800℃, E type 0℃ ~ 400℃ performance is relatively stable, while the structure is simple, dynamic response is good, easy to automatic control and centralized control. The grading signs are B, R, S, K, N, E, J and T. Commonly used for power, chemical industry, injection molding, packaging, food, incubator, oven above the temperature measurement.
Specification
Model: WRNT-01 / WRET-01 Grading number: TYPE K, type E Temperature range: 0 ~ 600℃, short-term 800℃ (TYPE K), 0 ~ 400℃, short-term 600℃ (type E) Length of shielding wire (tail wire) : High temperature shielding wire (metal shielding), 0.5-10 m in length Normal use of the probe diameter: φ0.5mm/φ0.6mm/φ0.7mm…… Interface thread: M12 *1.5 (please specify special thread, such as M10 *1.5) Front probe: national standard φ5*30 (special length please specify, such as: φ5*30mm ~ 100mm) Length of jacket: 32mm (please specify the special length, such as 70mm, 100mm)
The linear thermocouple K type operating temperature is generally not more than 800 degrees; E-type use temperature generally not more than 400 degrees; Pt100 thermal resistance operating temperature -45 ~ +420℃, if you have special requirements, please contact me.
Name | Model | NO indexing | Structure feature |
Compression spring type thermocouple/thermal resistance | WRNT-01 | K | Fixing thread: M12 x 1.5 M10 x 1.5 M8 x 1.5 |
WRET-01 | E | ||
WRJT-01 | J | ||
WZPT-01 | PT100 | ||
WZCT-01 | Cu50 |
