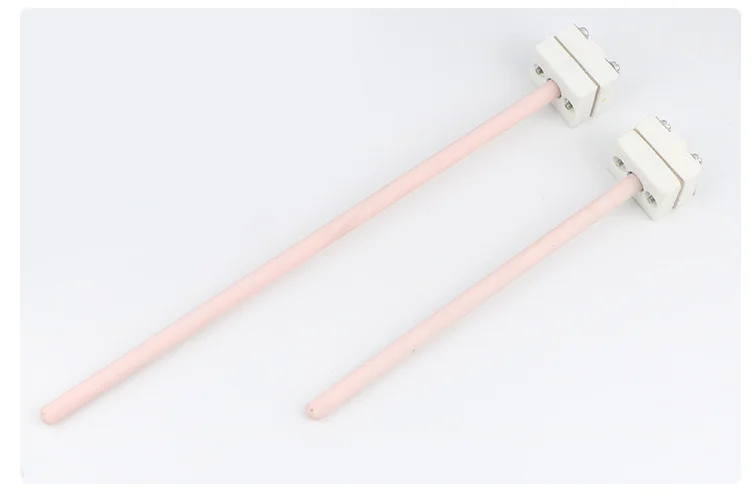

1600 Degree High Accuracy Probe Ceramic Tube Temperature Sensor Thermocouple R s B Typee for Muffle Furnace Electric Kiln
1600 Degree High Accuracy Probe Ceramic Tube Temperature Sensor Thermocouple R s B Typee for Muffle Furnace Electric Kiln
Description
1600 Degree High Accuracy Probe Ceramic Tube Temperature Sensor Thermocouple R s B Typee for Muffle Furnace Electric Kiln
Product Description
Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, ceramics. It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
Specification
Product name | Platinum rhodium thermocouple |
Type | S |
Material | 99% high temperature corundum tube, Or GH3039 high temperature alloy tube or SIC protection tube |
size | 8*150mm |
Temperature range | 0°F-2372°F (0°C-1300°C) (long term)0-1600℃ (short term) |
ConductorMaterial | Type | Graduation | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |

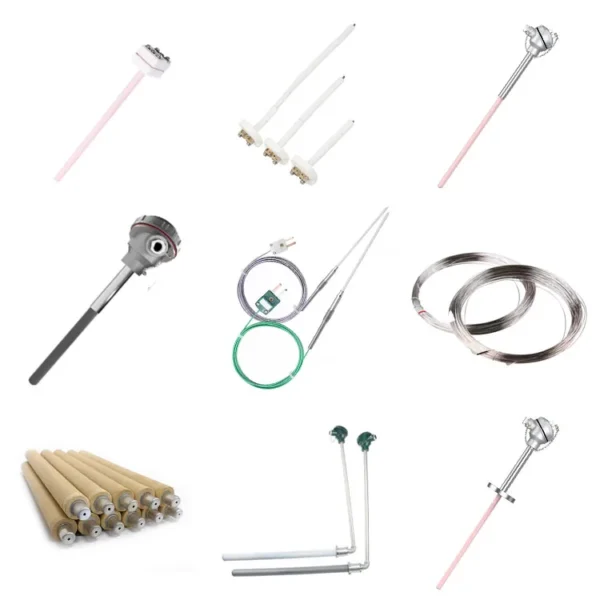

Related Products
