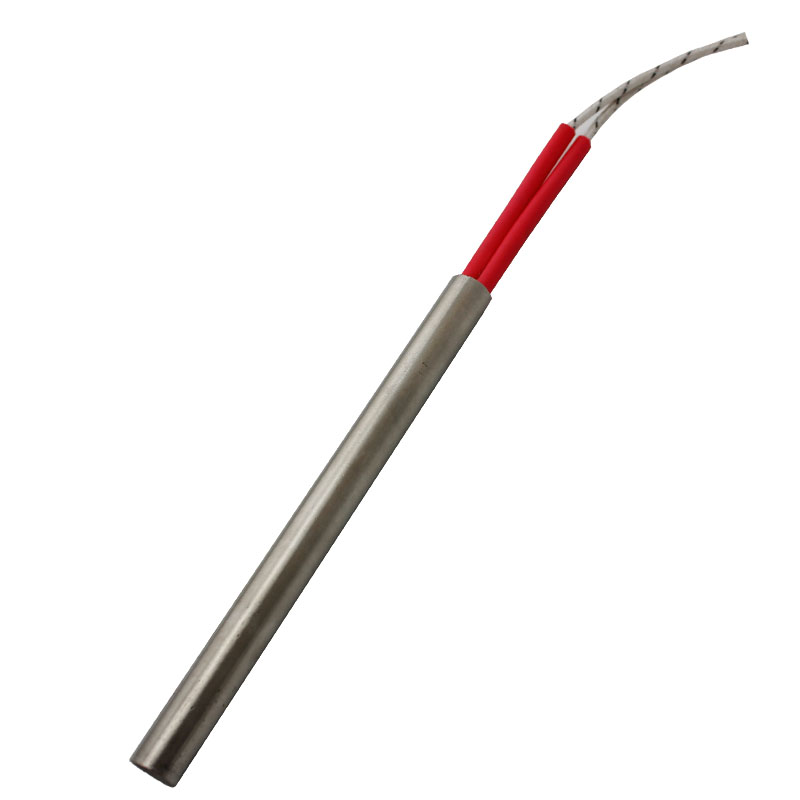

220V 100W Stainless Steel Single Ended Heating Resistance Rod Cartridge Heater Heating Element
Cartridge Heater Heating Element is a reliable and durable heating device with excellent thermal conductivity and high-temperature resistance, useful in various industrial applications.
Description
220V 100W Stainless Steel Single Ended Heating Resistance Rod Cartridge Heater Heating Element
Cartridge Heater
Cartridge heater is a piece of equipment,made of MgO powder or MgO tube, ceramic cap,resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304,321,316,Incoloy800,840).
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.This heater is also multi usage for air heating or immersion liquid heating with screws.
Features
1.Tube diameter:Φ3mm-Φ25mm
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc3. Insulation Material: High purity MgO Power 4. Resistance Wire element: Ni-Cr or FeCr 5. Lead Wire Connectiom Choice: External or Internal6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: Teflon or Silicone)
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc3. Insulation Material: High purity MgO Power 4. Resistance Wire element: Ni-Cr or FeCr 5. Lead Wire Connectiom Choice: External or Internal6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: Teflon or Silicone)
Resistance heating wire | NiCr 80/20 wire |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Length tolerance | ±1 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | type J / K / Ground wire |
Product Application
* Injection moulding-Internal heating of nozzies* Hot runner systems-Heating of manifolds* Packaging industry-Heating of cutting bars* Packaging industry-Heating of hot stamps* Laboratories-Heating of analytical equipment* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy* Telecommunications:Deicing,Enclosure Heater* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,* Food Service:Steamers,Dish Washers,* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
