220v 250w Customized resistance cartridge heater element for plastic machine
Cartridge Heater Element is an electric heating system that is small, cylindrical, and used for various high-temperature industrial applications.
Description
220v 250w Customized resistance cartridge heater element for plastic machine
Product Description
A cartridge heater is a tube-shaped, industrial heating element that can be inserted into drilled holes. Cartridge heaters provide localized and precise heating and are commonly used in the heating process industry.
Typically, cartridge heaters are used to heat a metal block from the inside and can be custom manufactured to a specific watt density based on the requirements of the application.Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
Cartridge Heater Product Features
1. Simple structure, high heating power
2. Easy and economical installation
3. Designed and manufactured with good materials
4. Uniform temperature
5. Accurate dimensions, maximum heat transfer
6. Easy maintenance and replacement 7. CE & RoHS approved
Cartridge Heater Element Customization Options
1. Built-in thermocouple 2. Voltage (phase ) & power & watt density3. Non-heating part length4. Tube diameter & length5. Sheath material6. Lead/ lead protection7. Seal material 8. Installation – flange/ locating ring/ screw9. Finned 10. Inner structure – e.g. custom distributed wattage
Specification
Outer Sheath Material | Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840 |
Resistance Heating Wire | Nichrome 8020 resistance wire |
Wattage Tolerance | +5%, -10% |
Resistance Tolerance | +10%, -5% |
Voltage Available | 12 to 600 volts customied |
Maxium Heating Temperature | 800 Degree Celsius |
Length Tolerance | ±1mm |
Diameter Tolerance | ±0.02mm |
Standard Cold Size | 5-10mm |
Insulation Resistance (cold) | ≥ 500 MΩ |
Maxium Leakage Current (cold) | ≤0.5 mA |

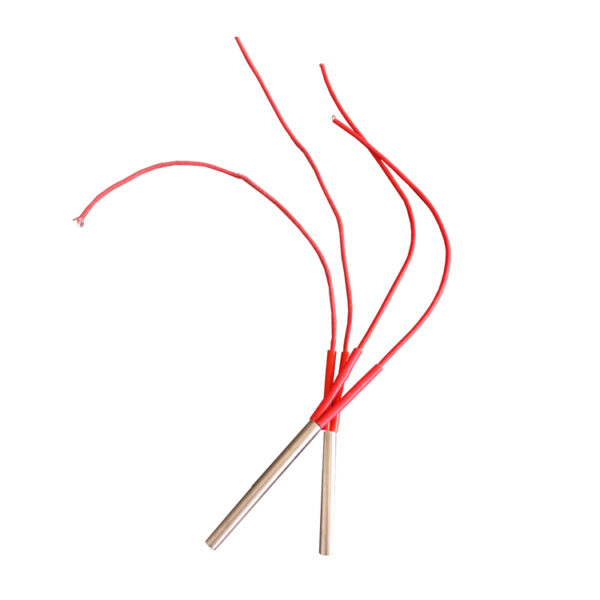

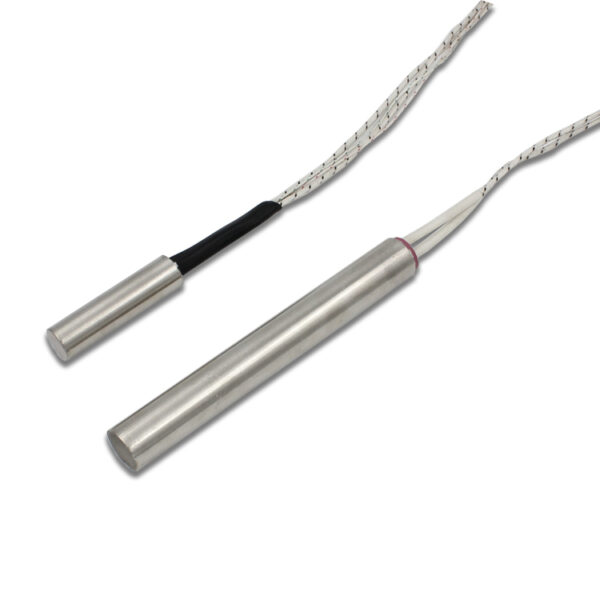

Lead Orientation | A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
Application
Cartridge Heater Elements are most frequently used for heating dies, platens, molds, and other metal parts by insertion into drilled holes. They can also be used in liquid immersion applications. Below are some examples of specific applications: * Heating gases and liquids * Hot runner molds * Hot stamping * Laminating presses * Medical equipment * Semi-conductor * Plastic molding * Scientific equipment
