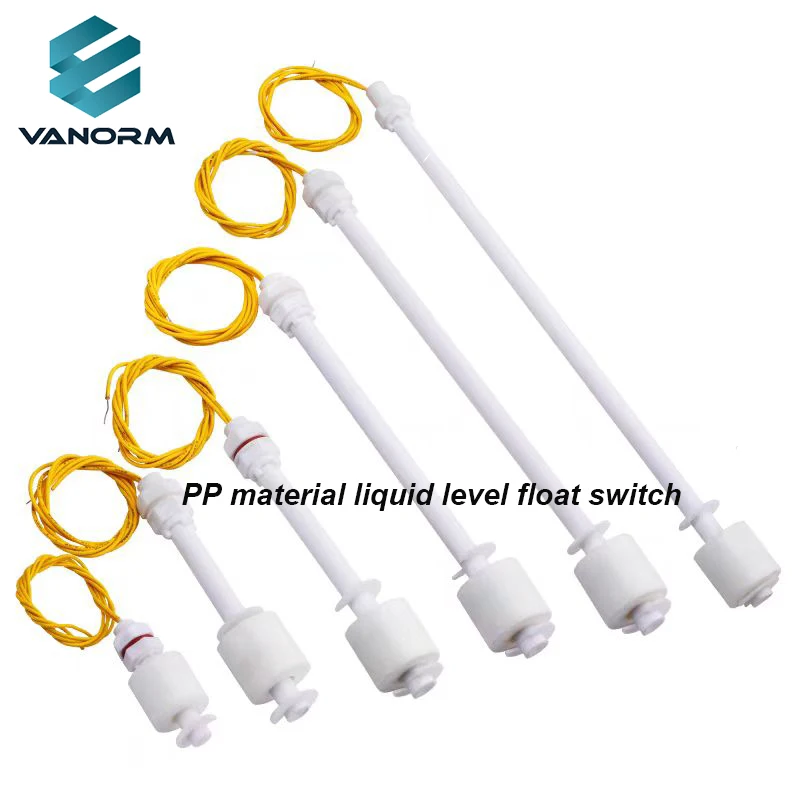

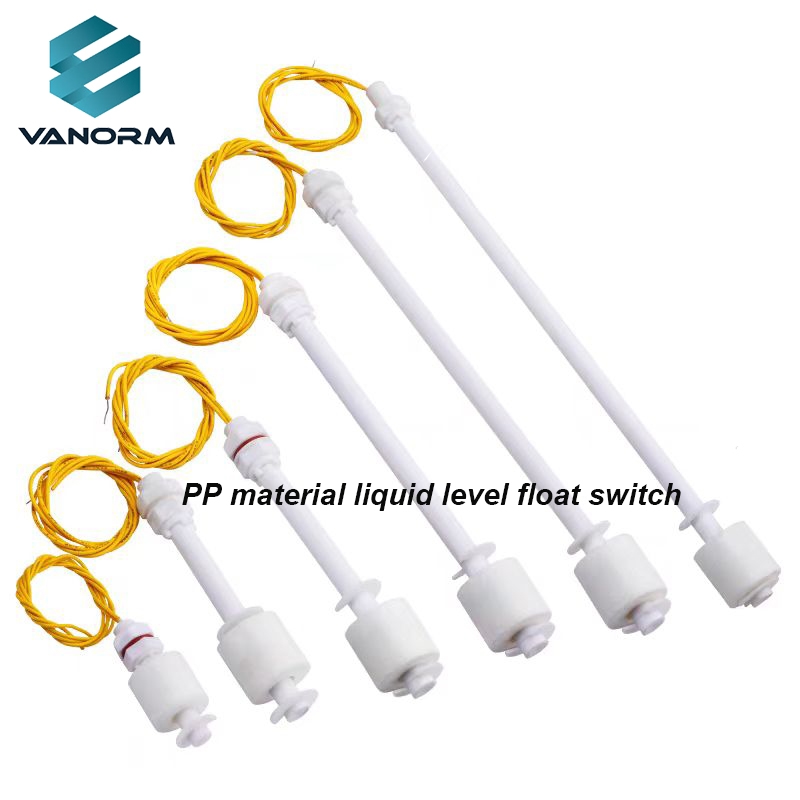

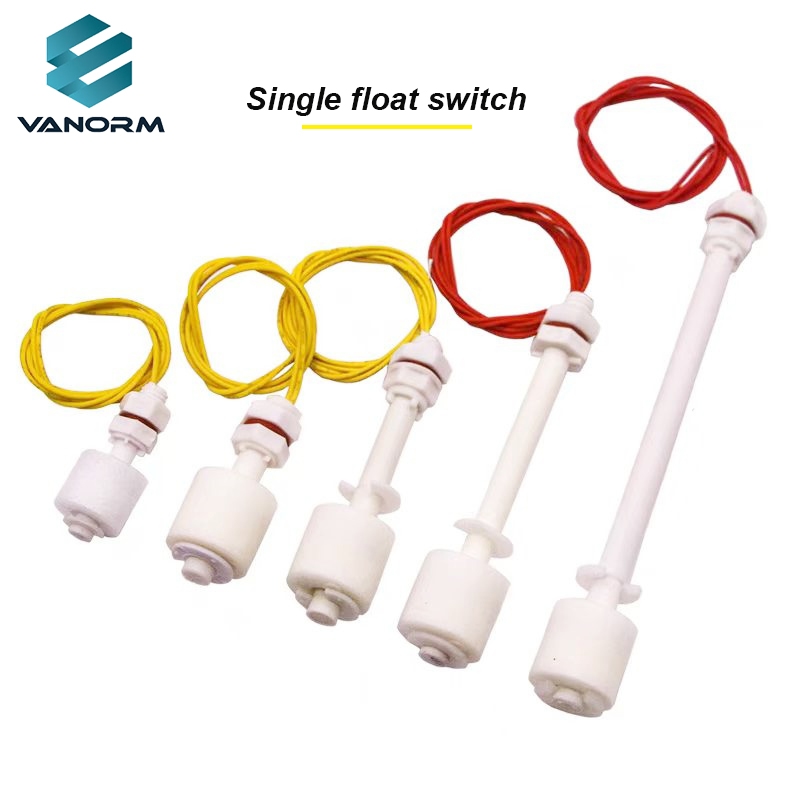

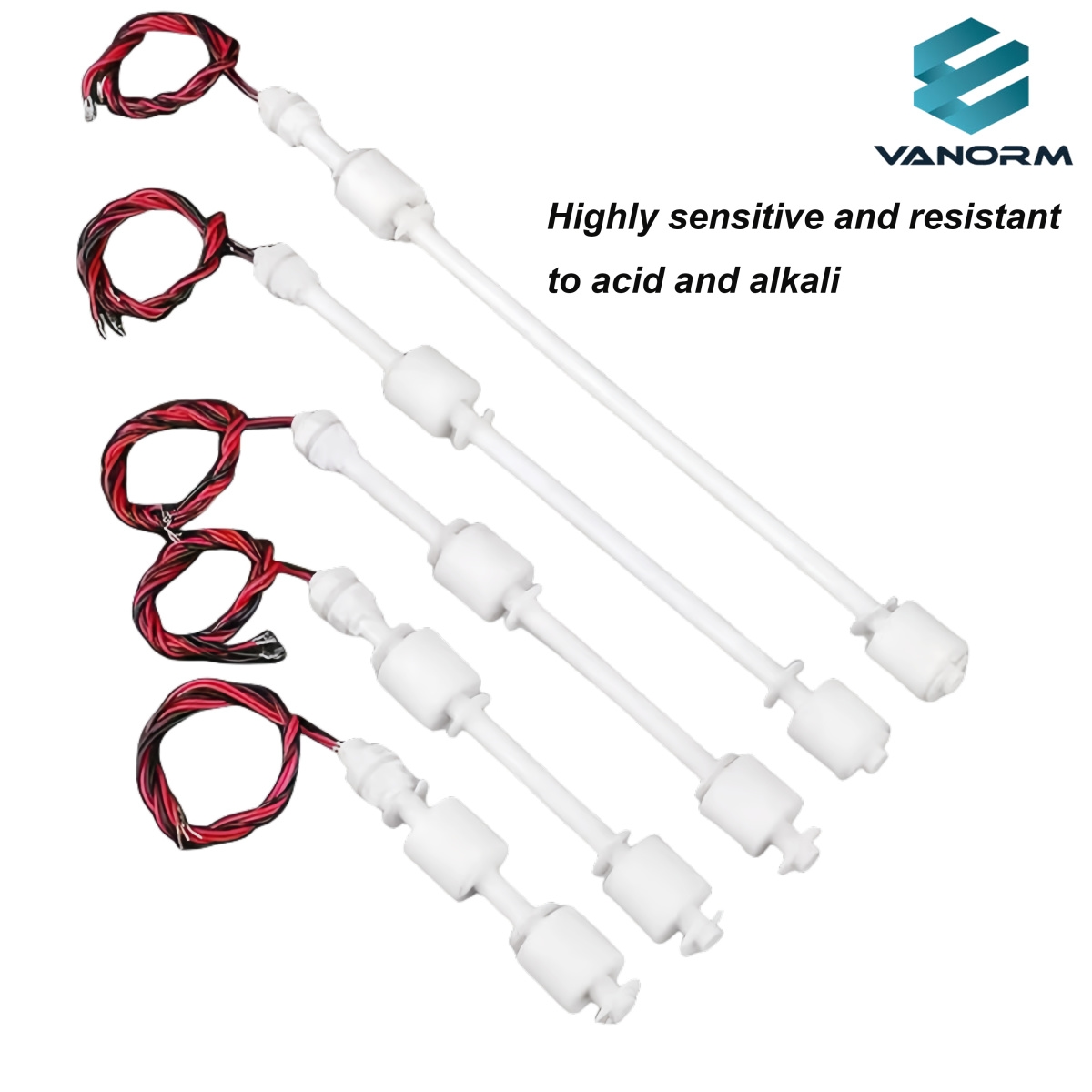

Anti-corrosion pp Float Switch Liquid Level Controller Water Level Controller Liquid Level Resistant to Acid and Alkali
Anti-corrosion pp Float Switch Liquid Level Controller Water Level Controller Liquid Level Resistant to Acid and Alkali
Description
Anti-corrosion pp Float Switch Liquid Level Controller Water Level Controller Liquid Level Resistant to Acid and Alkali
Product Description
Installation precautions for float switches
√ The installation position should be far away from the water inlet; otherwise, the switch may malfunction due to the fluctuation of the water inlet.
√ The load of the controlled circuit must match the contact capacity of the float switch.
√ The specific gravity of the liquid being measured must be greater than that of the float ball.
√ The action point of the float ball has been adjusted at the factory according to the customer’s order requirements. Please do not adjust the position of the float ball at will.
√ The load of the controlled circuit must match the contact capacity of the float switch.
√ The specific gravity of the liquid being measured must be greater than that of the float ball.
√ The action point of the float ball has been adjusted at the factory according to the customer’s order requirements. Please do not adjust the position of the float ball at will.


Specification

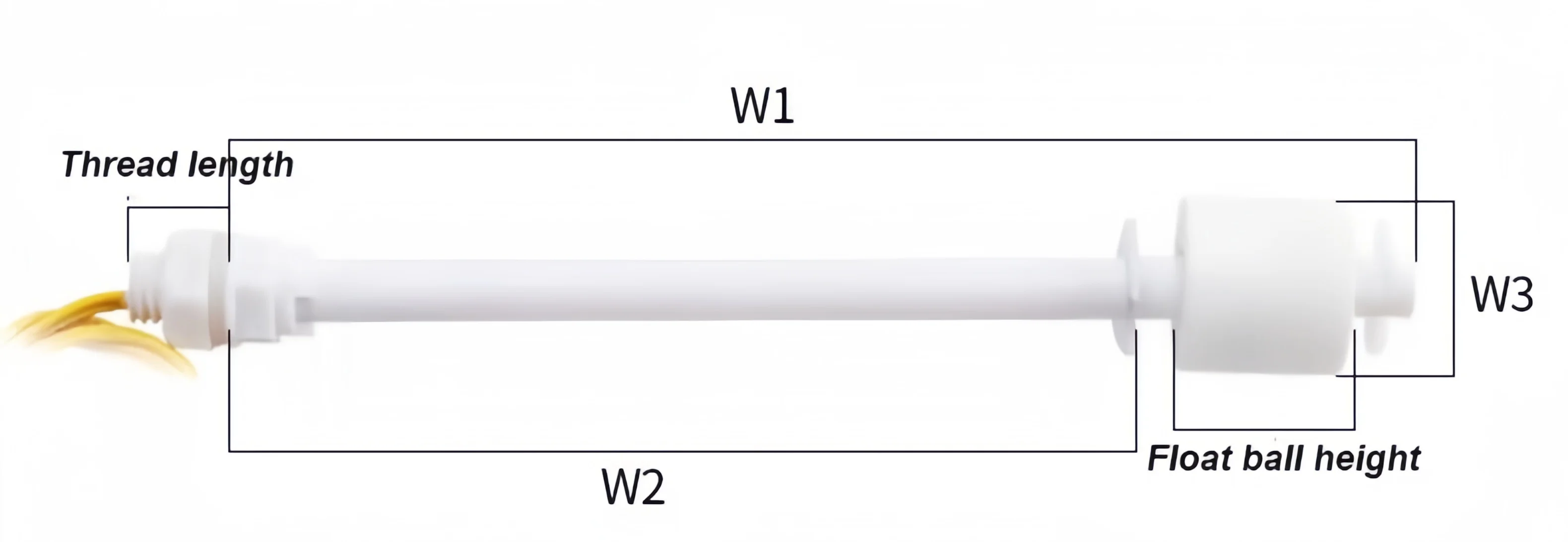

Specification | Total length | Thread length | Float ball height | W1 | W3 | |
P25 | 36mm | 10mm | 7.7mm | 26mm | 17.5mm | |
P35 | 46mm | 12mm | 17.5mm | 34mm | 17.5mm | |
P43 | 57mm | 12.5mm | 21mm | 44.5mm | 23mm | |
P52 | 66.5mm | 14.5mm | 24mm | 52mm | 23.5mm | |
P75 | 89.5mm | 15mm | 21mm | 74.5mm | 39mm | 22.5mm |
P85 | 97.5mm | 12.5mm | 21mm | 85mm | 50mm | 22.5mm |
P100 | 112.5mm | 12.5mm | 21mm | 100mm | 65.5mm | 22.5mm |
P150 | 164mm | 12.5mm | 21mm | 151mm | 115.5mm | 22.5mm |
P200 | 214.5mm | 12.5mm | 21mm | 202mm | 165mm | 22.5mm |
P250 | 265.5mm | 12.5mm | 21mm | 253mm | 215mm | 22.5mm |
P300 | 316.5mm | 12.5mm | 21mm | 304mm | 265mm | 22.5mm |
P350 | 367.5mm | 12.5mm | 21mm | 355mm | 315mm | 22.5mm |
P400 | 418.5mm | 12.5mm | 21mm | 406mm | 365mm | 22.5mm |
P450 | 469.5mm | 12.5mm | 21mm | 457mm | 415mm | 22.5mm |
P500 | 520.5mm | 12.5mm | 21mm | 508mm | 465mm | 22.5mm |
P800 | 826.5mm | 12.5mm | 21mm | 814mm | 765mm | 22.5mm |

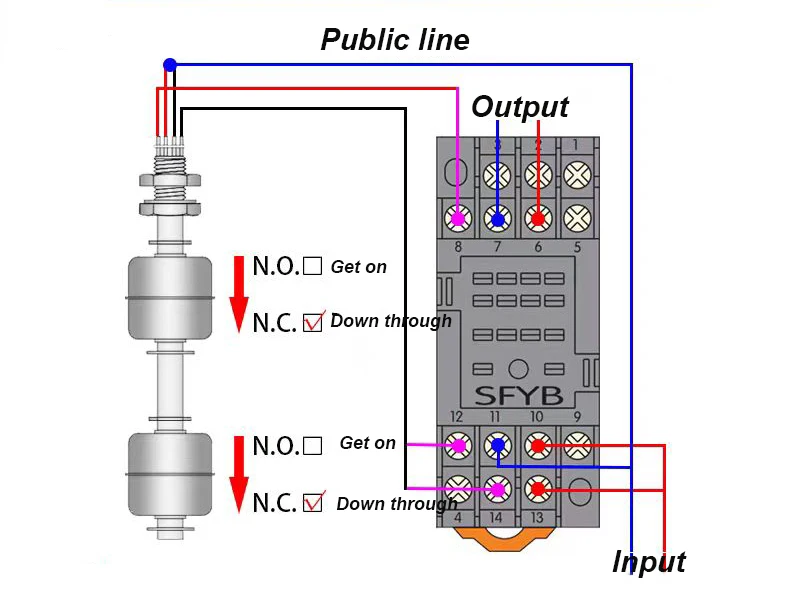

Wiring method

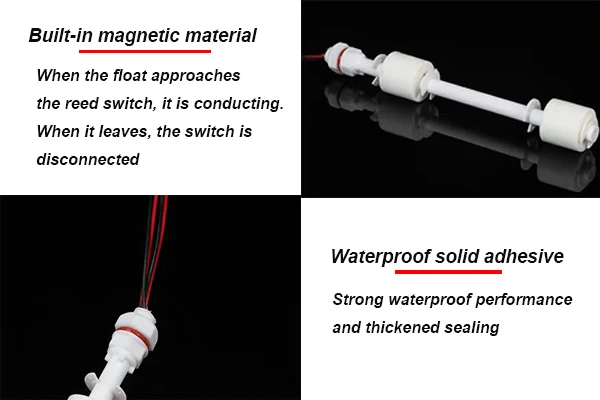

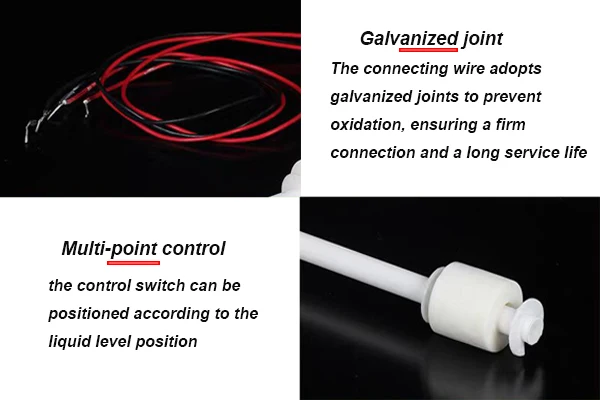

Our Advantages

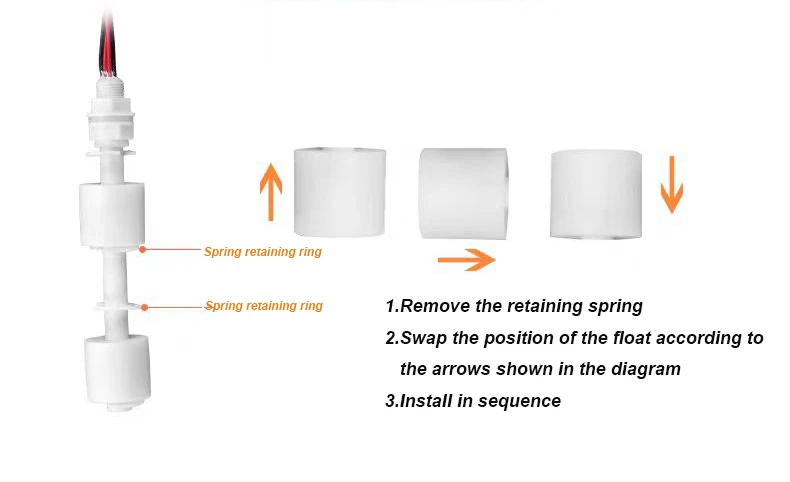

Installation Instructions

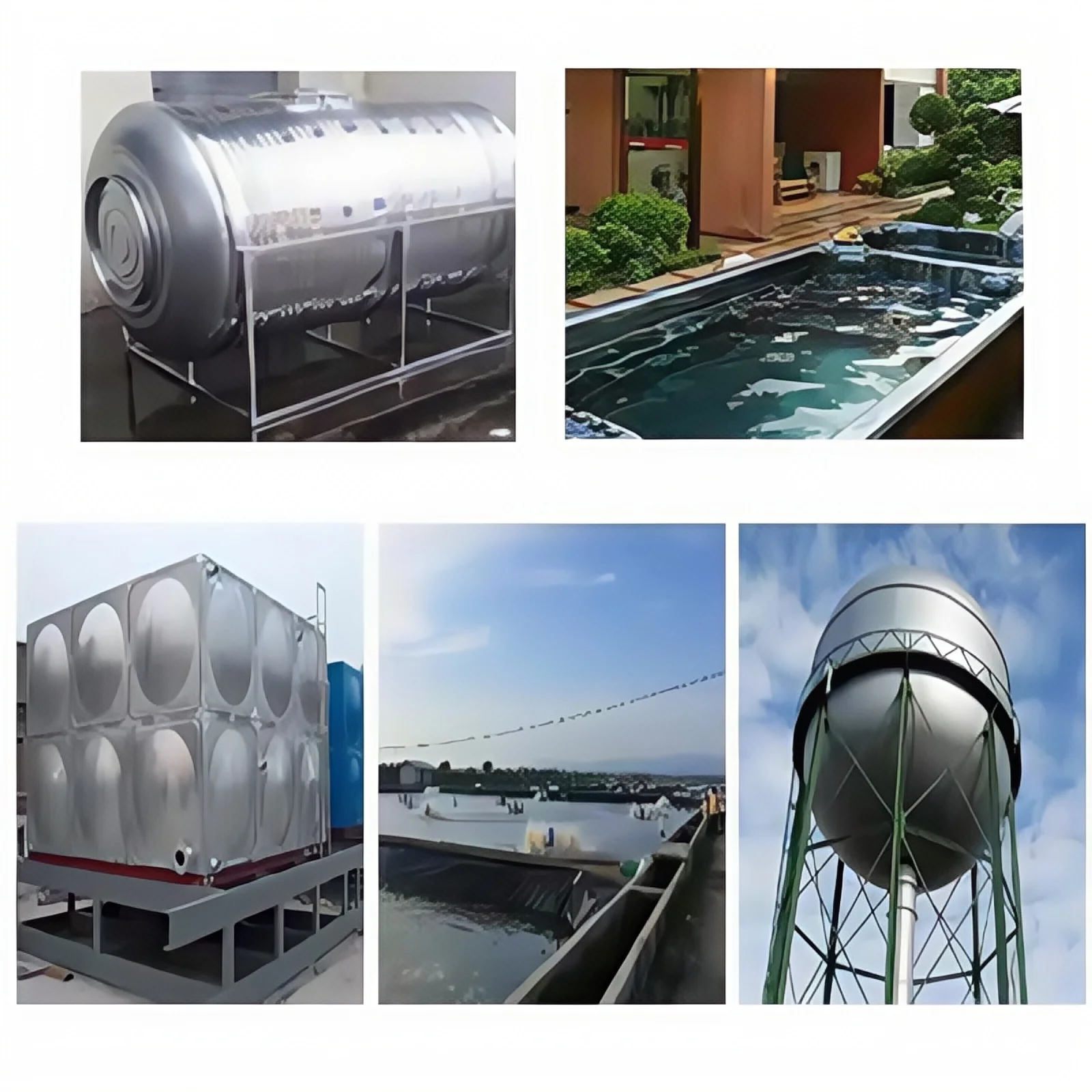

Application
This product can be used in water dispensers, purifiers, water heaters, solar energy systems, air conditioners and humidifiers, coffee machines, small refrigerators, etc. Anti-dry-burning water level sensors for water heating equipment are widely used in automobiles, industrial equipment, agricultural equipment, and household appliances.

Packing & Delivery
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.


Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.

FAQ
1. Q:Who are we?
A:Our factory was established in 1996, and the foreign trade sales team was established in 20212.Q: Can we use our own forwarder?
A: Of course. We can ship it to them.
3.What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T, PayPal, Cash;Language Spoken: English,Chinese
4. Q: How do I place an order?
A: Please email your order to us and we will confirm with you.
Before quotation, we would like to confirm the product information with you, such as size and quantity. In any case, please contact us directly via email or online message.
5. Q: How do we guarantee quality?
A: We strictly follow the quality management standards of production; Check the workshop every 2 hours; And has its own research and development team and laboratory.
6. Q:What can you buy from us?
A: Electrical appliances and Ventilation Product; If there are other needs, we can also help customers purchase.
