-60-200C 600V 6 Awg Ultra Flexible Electric Silicone Rubber Wire 0.08mm Tinned Cooper Wire Heat Resistant Heating Equipment
Description

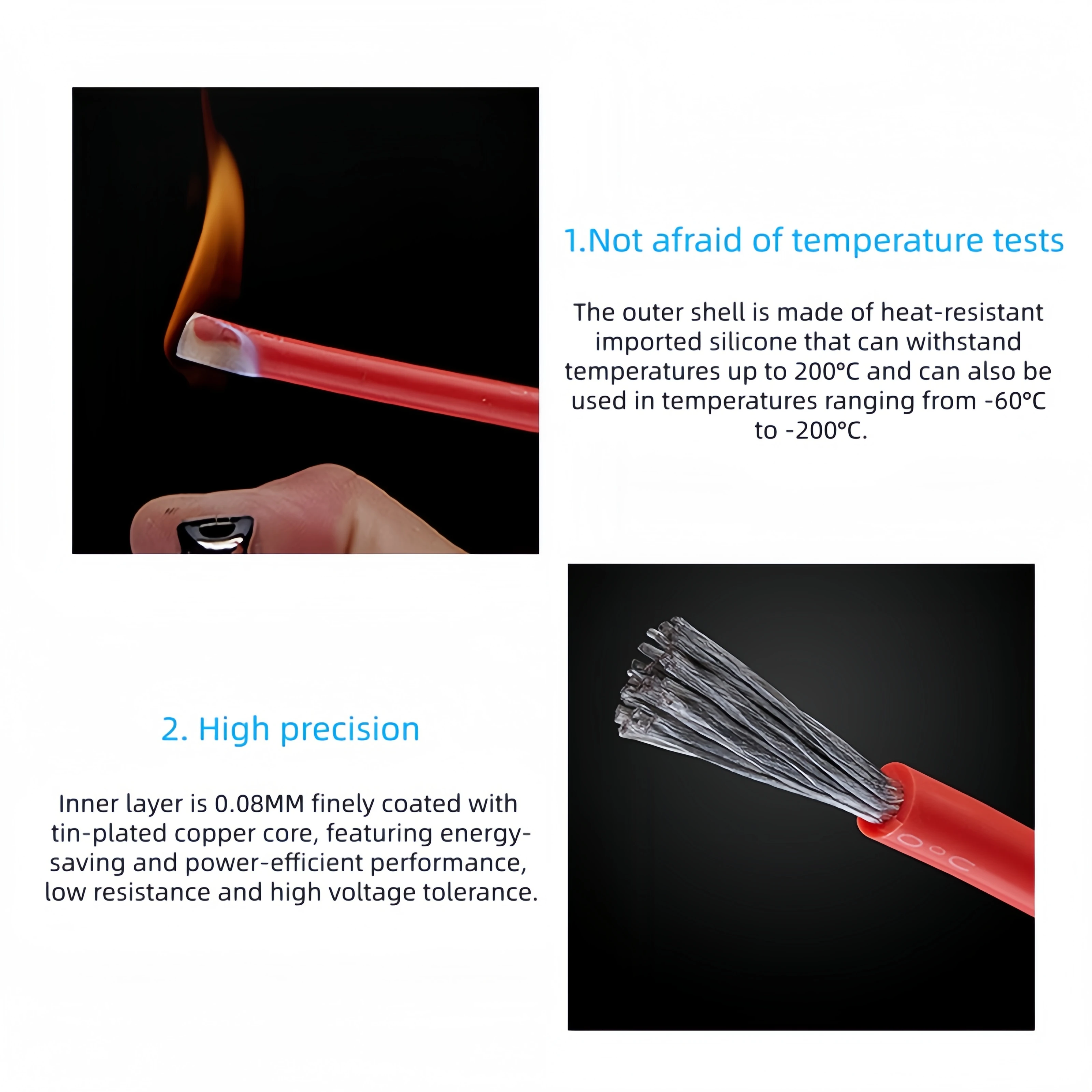

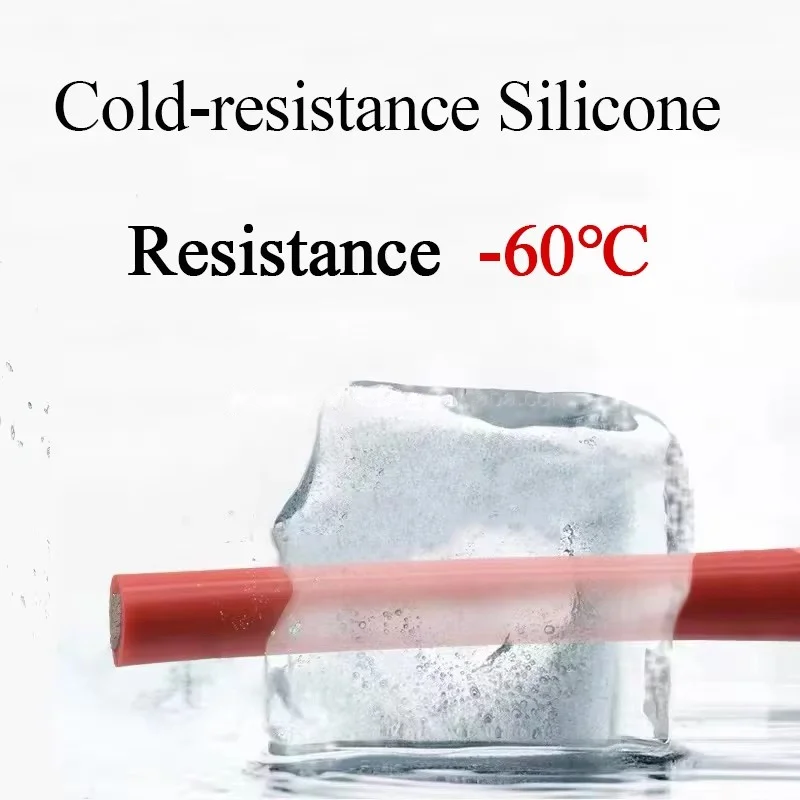

It is suitable for a variety of home appliances, lighting fixtures, electronic equipment, temperature sensors, etc.The wire insulation material uses high-quality silicon rubber, has excellent high temperature and low temperature resistance, has excellent high voltage resistance, stable electrical insulation performance, and the conductor is flexible and easy to install.
Product Description
Specification
Silicone Cable | |
Insulation | Silicone Rubber |

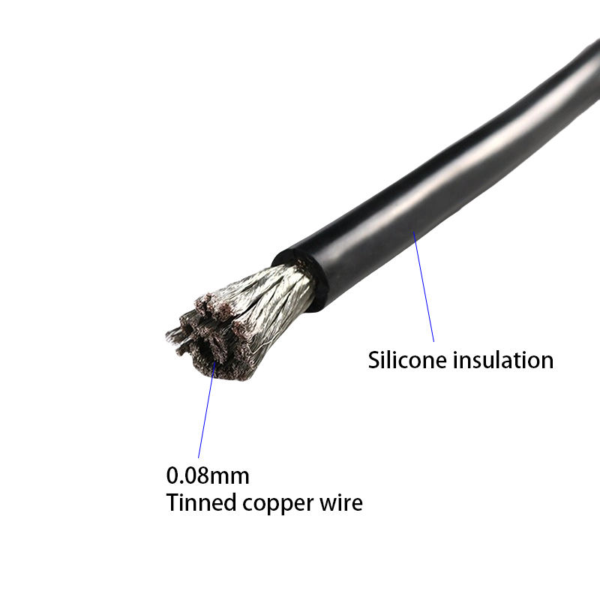

Conductor | Tinned copper |

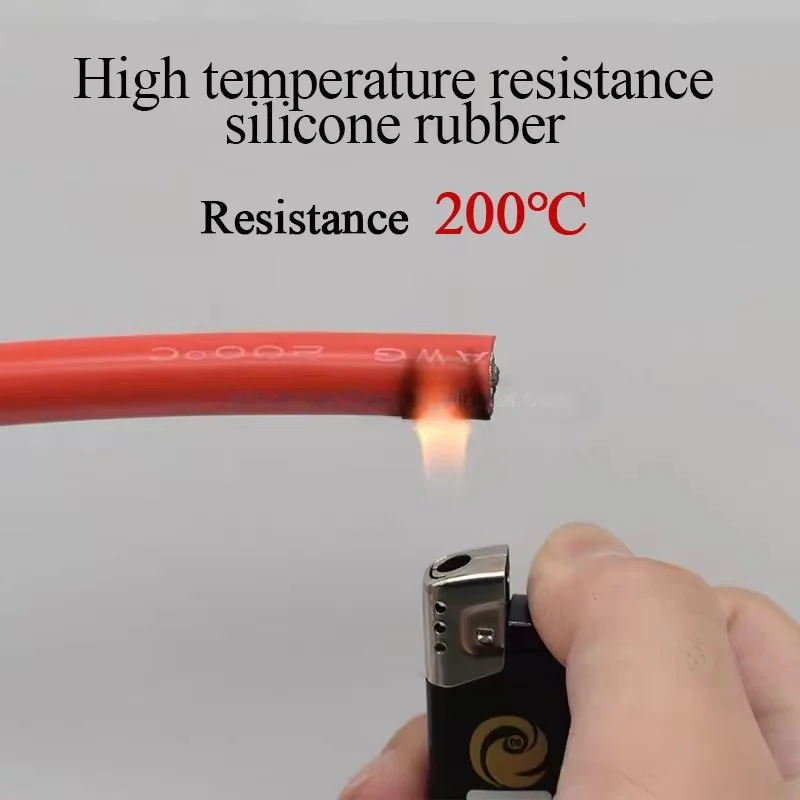

Temperature Range | 200℃ |
Rated Voltage | 300V/600V |

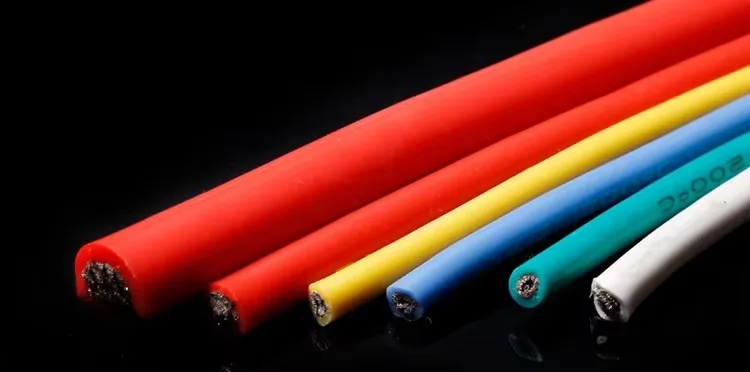

Colour | White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green |
Applications | metallurgy,chemical industry,petroleum,power generation,defense and scientific research,and cables for connection betweenthermocouples and temperature display instrument. |

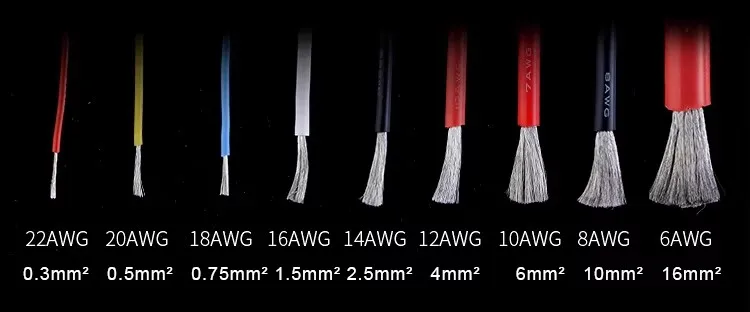

Conductor | Insulation | Electrical Characteristic | Packing | ||||||
Guage | Conductor construction No./mm | Sectionmm | Diametermm | Insulation thicknessmm | Outer Diametermm | Conductor Resistance Ohm/KM | Maximun CurretA | Mt/Coils | KG/Coil |
95mm2 | 19000/0.08 | 95 | 12.75 | 2.65 | 18 | 0.18 | 500 | 50 | 55 |
75mm2 | 15000/0.08 | 75 | 11.5 | 2.4 | 15.5 | 0.45 | 400 | 50 | 40 |
50mm2 | 10000/0.08 | 50 | 9.2 | 2.4 | 14 | 0.63 | 300 | 50 | 28 |
3 | 6700/0.08 | 33.5 | 7.75 | 2.4 | 13 | 0.89 | 200 | 50 | 20 |
4 | 5000/0.08 | 25 | 6.55 | 2.4 | 11 | 1.25 | 180 | 100 | 15 |
5 | 4000/0.08 | 20 | 5.85 | 1.85 | 9.5 | 1.5 | 160 | 100 | 24 |
6 | 3200/0.08 | 16 | 5.25 | 1.65 | 8.5 | 1.9 | 140 | 100 | 19.2 |
7 | 2400/0.08 | 12 | 4.55 | 1.35 | 7.2 | 2.6 | 100 | 100 | 14 |
8 | 1650/0.08 | 8.25 | 3.75 | 1.35 | 6 | 3.7 | 80 | 100 | 10 |
9 | 1200/0.08 | 6 | 3.2 | 1.35 | 6 | 5.5 | 60 | 100 | 8 |
10 | 1050/0.08 | 5.25 | 3 | 1.3 | 5.5 | 6.3 | 50 | 100 | 6.85 |
11 | 750/0.08 | 3.8 | 2.55 | 1.2 | 5 | 8.3 | 40 | 100 | 5.4 |
12 | 680/0.08 | 3.4 | 2.4 | 1.05 | 4.5 | 10 | 30 | 100 | 4.6 |
13 | 500/0.08 | 2.5 | 2.05 | 1 | 4 | 12.5 | 25 | 100 | 3.5 |
14 | 400/0.08 | 2 | 1.85 | 0.9 | 3.5 | 15 | 20 | 200 | 5.5 |
15 | 300/0.08 | 1.5 | 1.6 | 0.8 | 3.2 | 20 | 15 | 200 | 4.4 |
16 | 252/0.08 | 1.26 | 1.45 | 0.75 | 3 | 25 | 10 | 200 | 3.75 |
17 | 210/0.08 | 1.05 | 1.35 | 0.68 | 2.7 | 30 | 8 | 200 | 3 |
18 | 150/0.08 | 0.75 | 1.15 | 0.55 | 2.3 | 39.5 | 6 | 400 | 2.25 |
20 | 100/0.08 | 0.5 | 0.95 | 0.45 | 1.8 | 63 | 5 | 400 | 2.9 |
22 | 60/0.08 | 0.3 | 0.72 | 0.45 | 1.7 | 88.5 | 3 | 400 | 2.15 |
24 | 40/0.08 | 0.2 | 0.58 | 0.45 | 1.6 | 97.6 | 2 | 400 | 1.7 |
26 | 30/0.08 | 0.15 | 0.5 | 0.45 | 1.5 | 125 | 1.5 | 400 | 1.4 |
28 | 16/0.08 | 0.08 | 0.37 | 0.4 | 1.2 | 225 | 0.8 | 1500 | 3.6 |
30 | 11/0.08 | 0.055 | 0.31 | 0.3 | 0.8 | 335 | 0.6 | 2500 | 3.5 |

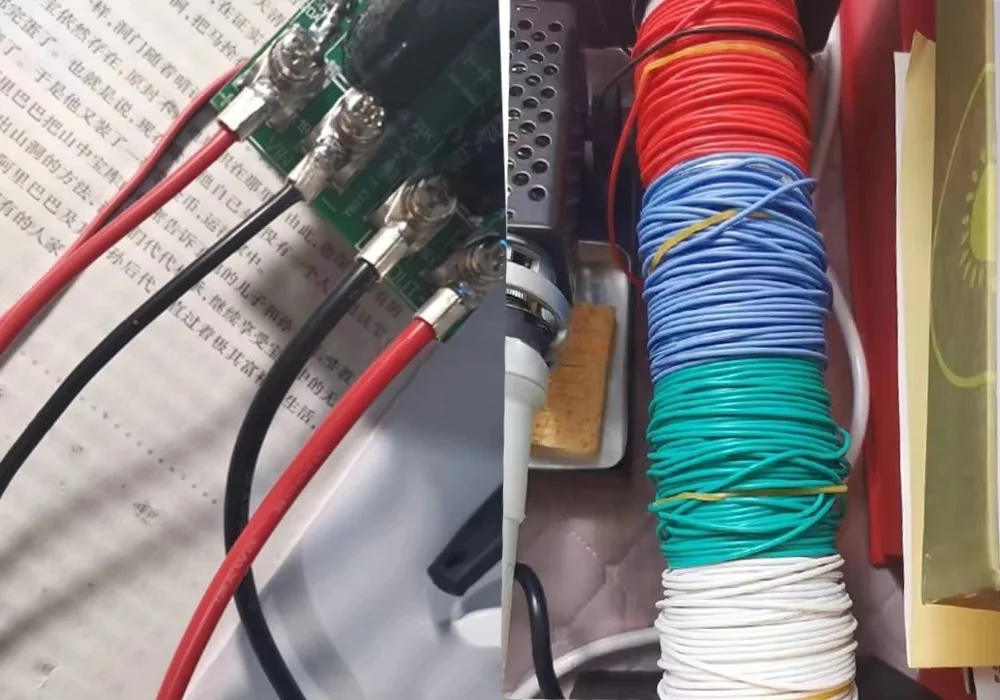

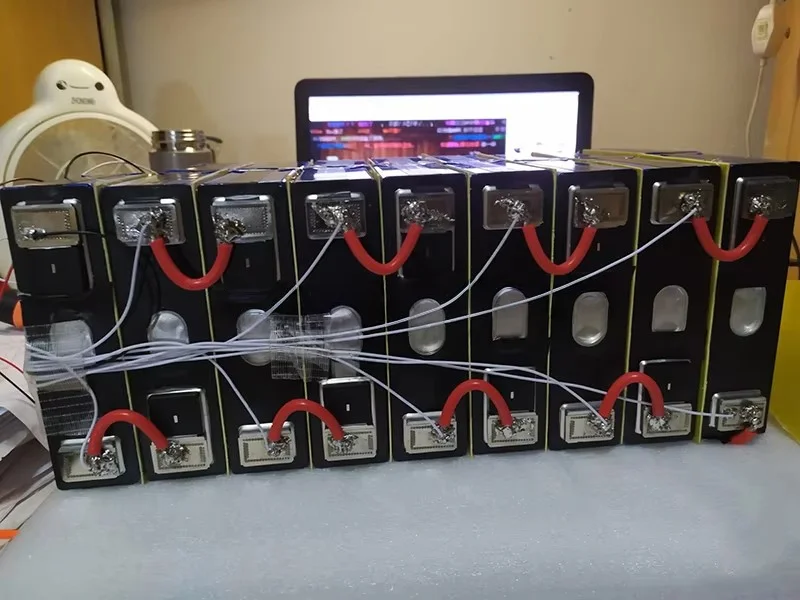

Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?We are based in Jiangsu, China, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Heating Element, Ventilation Products, Thermocouple4. why should you buy from us not from other suppliers?we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. what services can we provide?Accepted Delivery Terms: FOB,EXW,DDP；Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A;Language Spoken:English,Chinese,French
