230v Cartridge Heater 30mm 220v Cartridge Heater Resistor Rod
Description
Product Description
230v Cartridge Heater 30mm 220v Cartridge Heater Resistor Rod
Cartridge heater is a piece of equipment,made of MgO powder or MgO tube, ceramic cap,resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304, 321, 316, Incoloy800, 840).
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.This heater is also multi usage for air heating or immersion liquid heating with screws.
Features
1. Simple structure, high heating power2. Easy and economical installation 3. Designed and manufactured with good materials 4. Uniform temperature 5. Accurate dimensions, maximum heat transfer 6. Easy maintenance and replacement 7. CE & RoHS approved
Specification
Outer Sheath Material | Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840 |
Resistance Heating Wire | Nichrome 8020 resistance wire |
Wattage Tolerance | +5%, -10% |
Resistance Tolerance | +10%, -5% |
Voltage Available | 12 to 600 volts customized |
Maxium Heating Temperature | 800 Degree Celsius |
Length Tolerance | ±1mm |
Diameter Tolerance | ±0.02mm |
Standard Cold Size | 5-10mm |
Insulation Resistance (cold) | ≥ 500 MΩ |
Maxium Leakage Current (cold) | ≤0.5 mA |

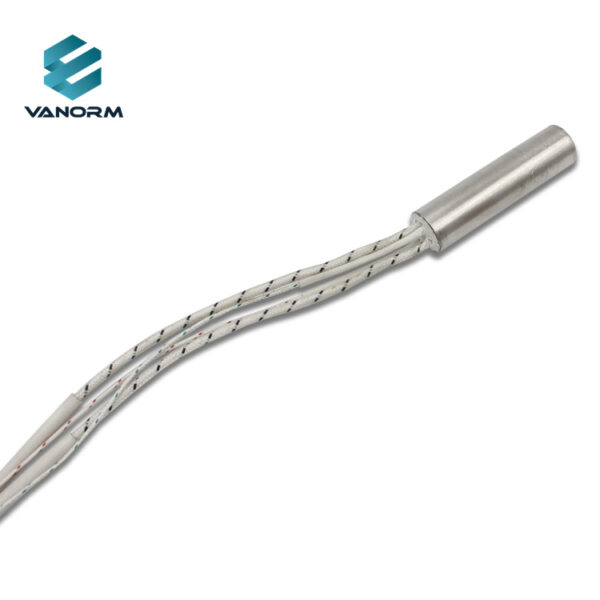

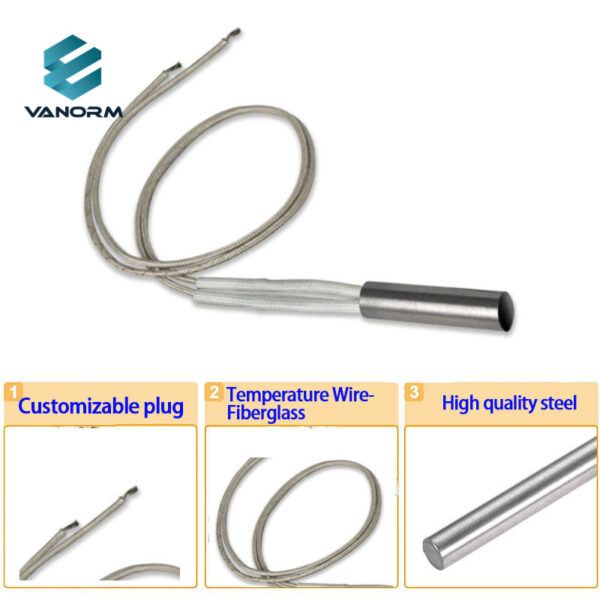

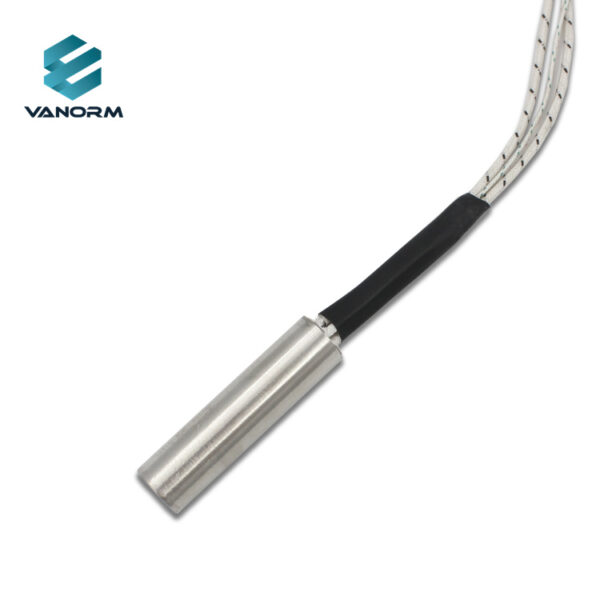

Lead Orientation | A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
Electric Cartridge Heater Customization Options

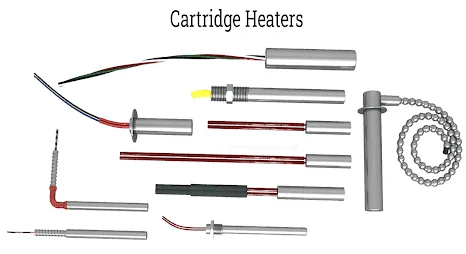

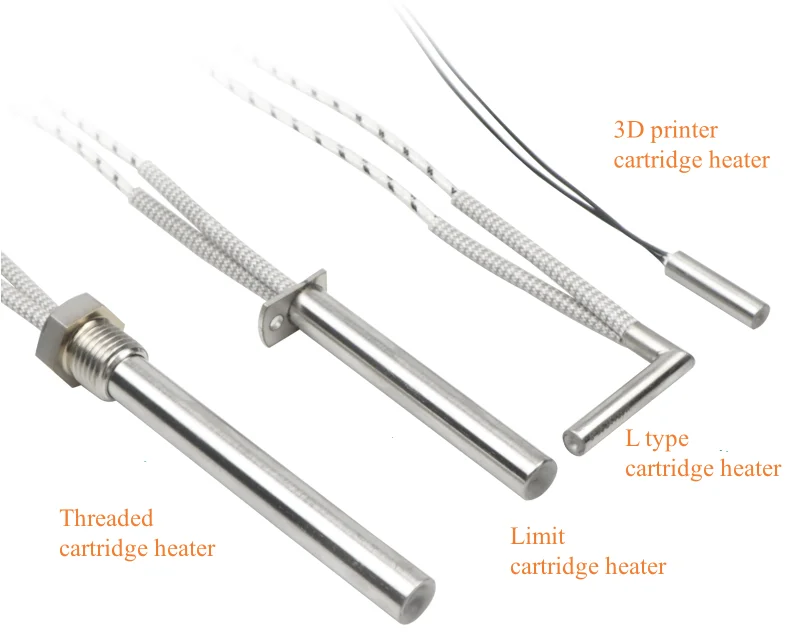

1. Built-in thermocouple 2. Voltage (phase ) & power & watt density3. Non-heating part length4. Tube diameter & length5. Sheath material6. Lead/ lead protection7. Seal material 8. Installation – flange/ locating ring/ screw9. Finned 10. Inner structure – e.g. custom distributed wattage

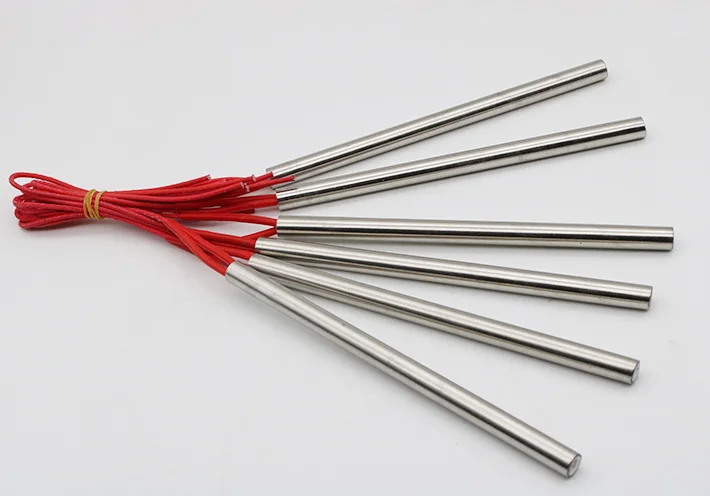

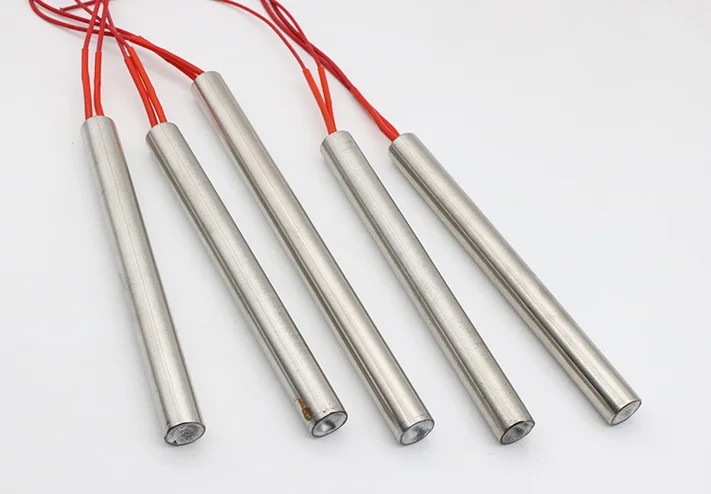

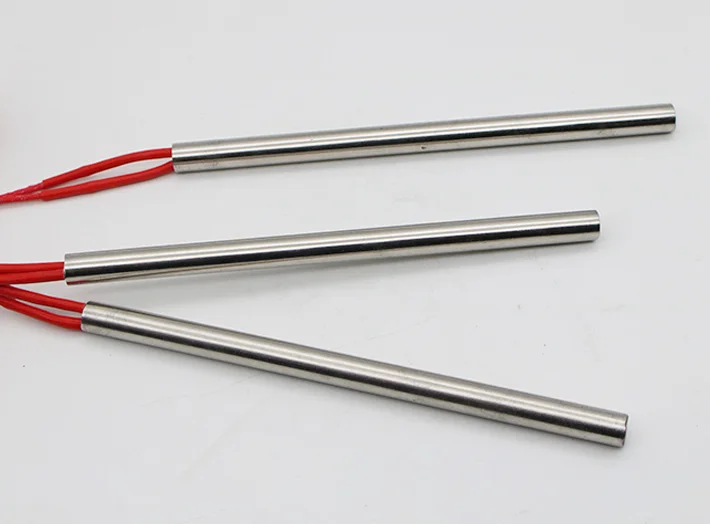

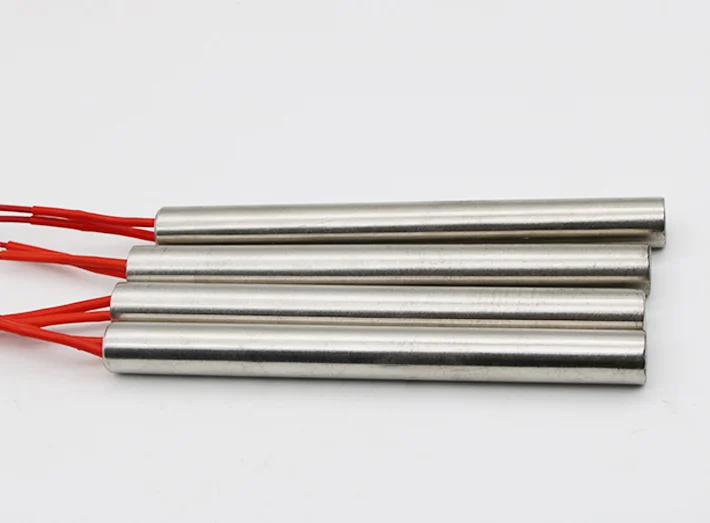

Details Images
Application
* Injection moulding-Internal heating of nozzies* Hot runner systems-Heating of manifolds* Packaging industry-Heating of cutting bars* Packaging industry-Heating of hot stamps* Laboratories-Heating of analytical equipment* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy* Telecommunications:Deicing,Enclosure Heater* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,* Food Service:Steamers,Dish Washers,* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
Certifications
Our products had passed the CE CQC UL and Rohs certificated.
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
FAQ
1. Q:Who are we?
A:Our factory was established in 1996, and the foreign trade sales team was established in 20212.Q: Can we use our own forwarder?
A: Of course. We can ship it to them.
3.What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T, PayPal, Cash;Language Spoken: English,Chinese
4. Q: How do I place an order?
A: Please email your order to us and we will confirm with you.
Before quotation, we would like to confirm the product information with you, such as size and quantity. In any case, pleasecontact us directly via email or online message.
5. Q: How do we guarantee quality?
A: We strictly follow the quality management standards of production; Check the workshop every 2 hours; And has its own research and development team and laboratory.
6. Q:What can you buy from us?
A: Electrical appliances and Ventilation Product; If there are other needs, we can also help customers purchase.
