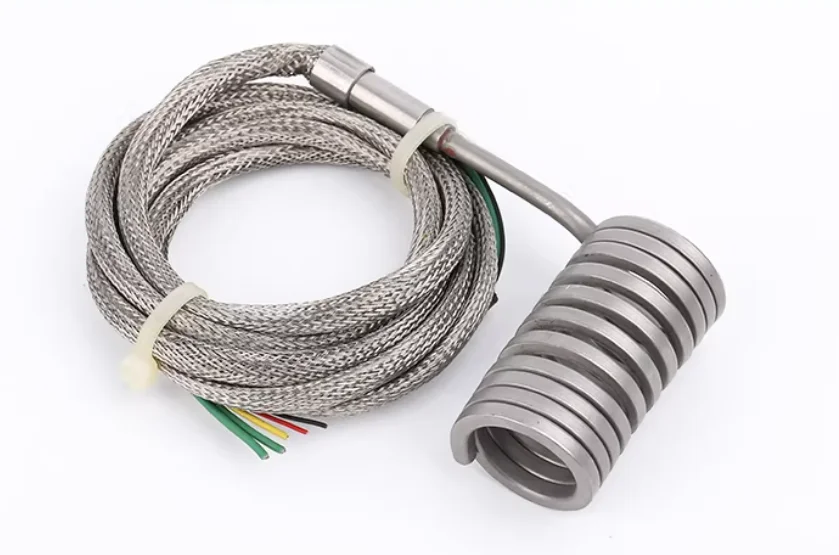

220v Industrial Stainless Steel air Resistance Spring Electrical Hot Runner Heater Coil with Thermocouple
Description
Product Description

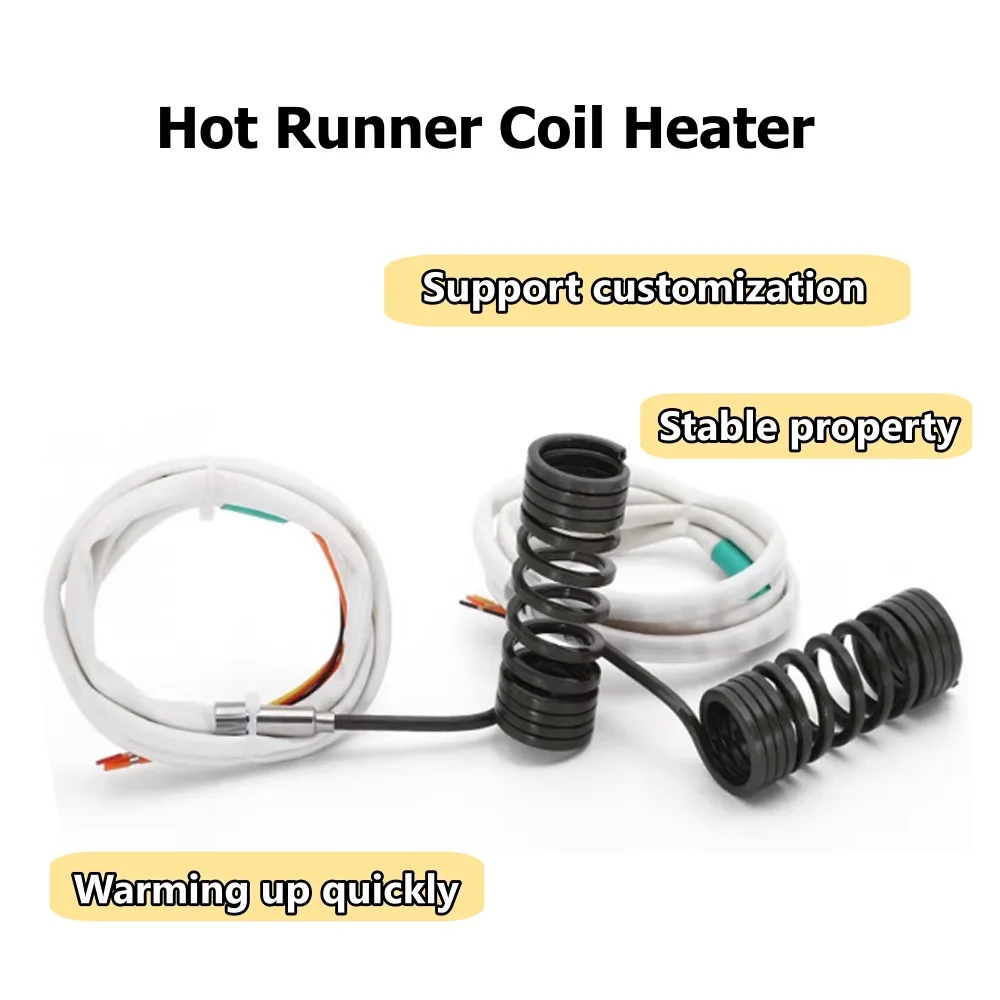

Electric Resistance Spring Type Hot Runner Heater Coil 220 Vac 1000 w for Injection Machine

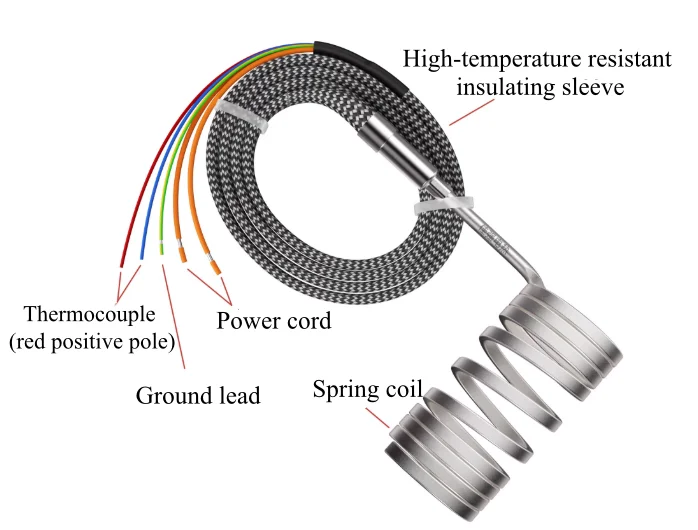

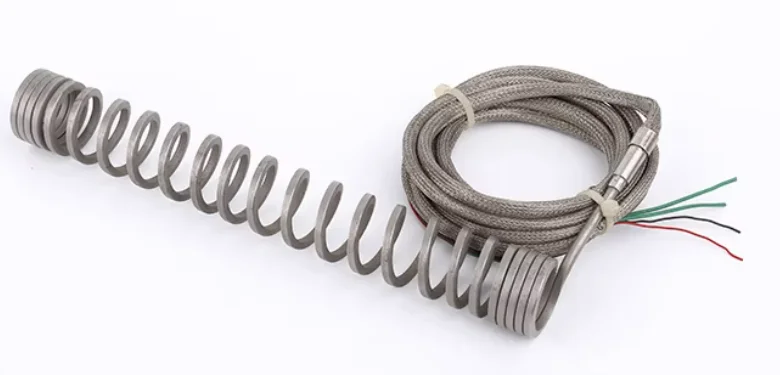

Hot Runner Spring Coil Heater/pipe heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Coil tube heating elements with thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
Specifications
1. Maximum Sheath Temperature: 700°C2. Voltage: 12V~380V3. Wattage: 70W~1000W4. Sectional area: 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.35. Available sheath: nylon, metal braided, fiberglass , silicone rubber, kevlar
Specification
Technical Details | |
Sheath Material | Cr Ni-Steel |
Insulation Material | MgO |
Resistance Wire | Ni Cr 80-20 |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | >5 M W |
Thermocouple | J type (Standard) or K type |
Length Tolerance (Straight) | 5% |
Wattage Tolerance | +/- 10% (+/- 5% Available Upon Request) |
Resistance Tolerance | +/- 10% (+/- 5% Available Upon Request) |
Unheated Length | 35mm (Standard) |
Dimensional Tolerance | Coil I.D +/- 0.1 to 0.2mm Coil Length +/- 1mm |
Features

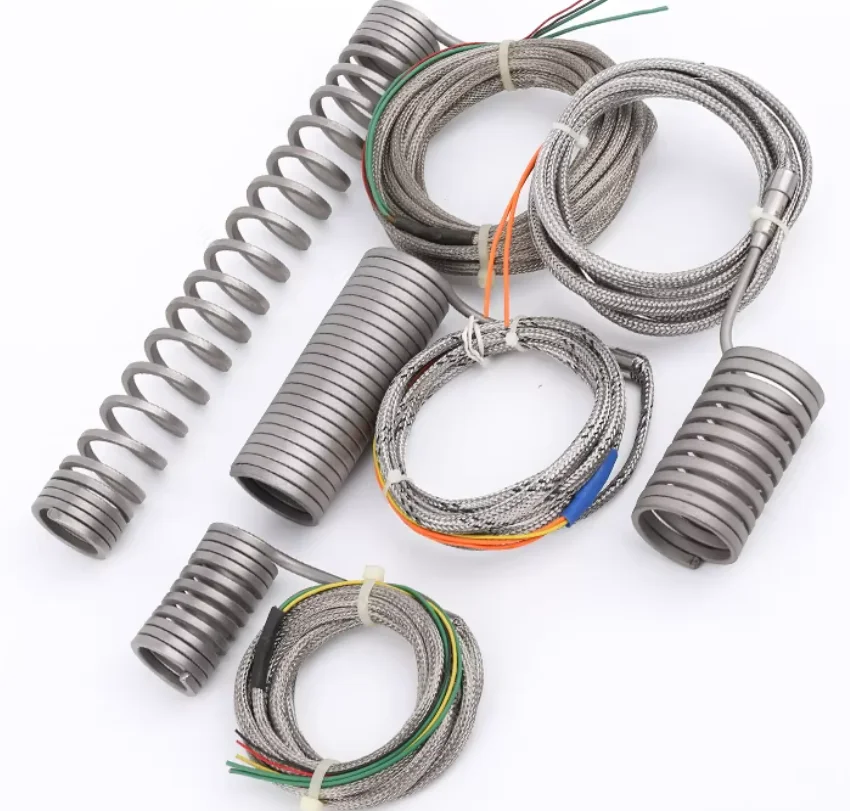

* Standard sizes available with various cross section* Various Watt Density option available* Designed for even heat profile* Precision fit on Hot Runner Nozzles* Highly Non-corrosive
When you enquiry, Please specify these parameters :

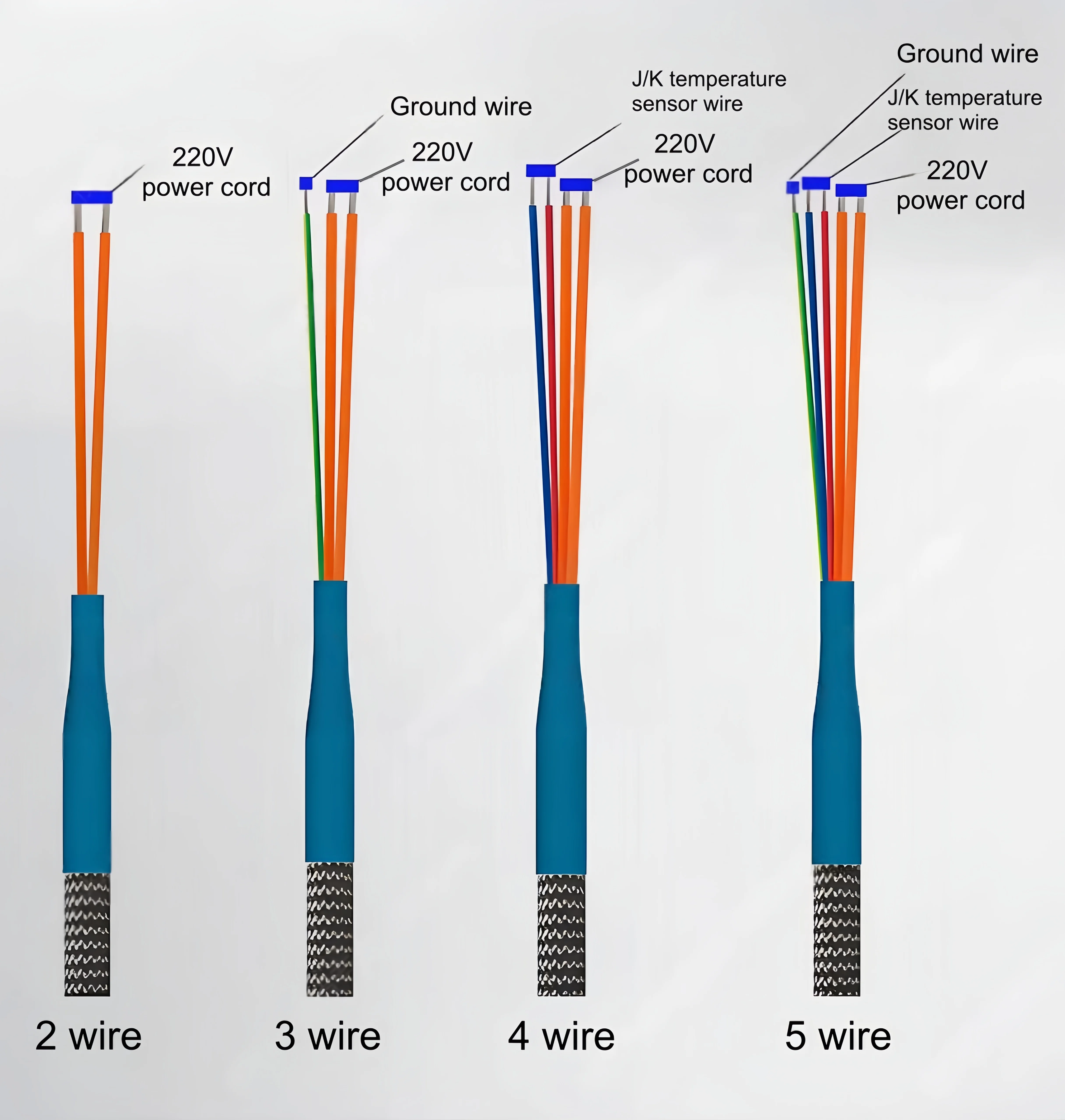

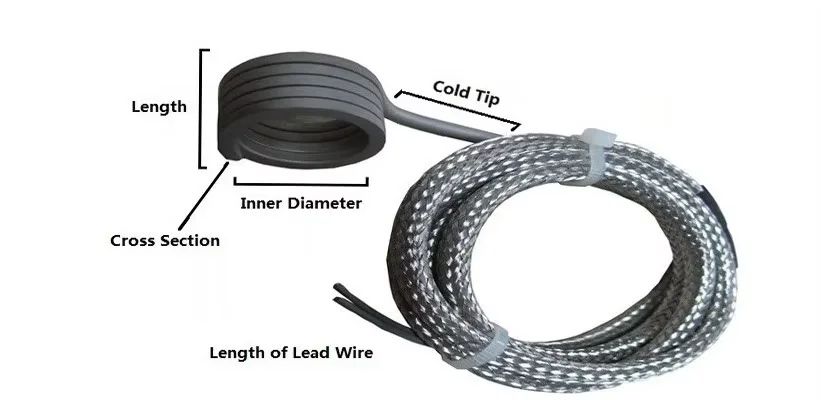

1. Volts&Watts2. Inner dia of coiled heater : I.D (Or) Outer diameter of nozzle to be heated3. Height of coil4. Connection lead option and leading wire length5. Type of the thermocouple (J type or K type)6. Drawing or sample for special type7.Quantity
Details Images
Related Products
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
Certifications
Our products had passed the CE CQC UL and Rohs certificated.
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
FAQ
1. Q:Who are we?
A:Our factory was established in 1996, and the foreign trade sales team was established in 20212.Q: Can we use our own forwarder?
A: Of course. We can ship it to them.
3.What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T, PayPal, Cash;Language Spoken: English,Chinese
4. Q: How do I place an order?
A: Please email your order to us and we will confirm with you.
Before quotation, we would like to confirm the product information with you, such as size and quantity. In any case, pleasecontact us directly via email or online message.
5. Q: How do we guarantee quality?
A: We strictly follow the quality management standards of production; Check the workshop every 2 hours; And has its own research and development team and laboratory.
6. Q:What can you buy from us?
A: Electrical appliances and Ventilation Product; If there are other needs, we can also help customers purchase.
