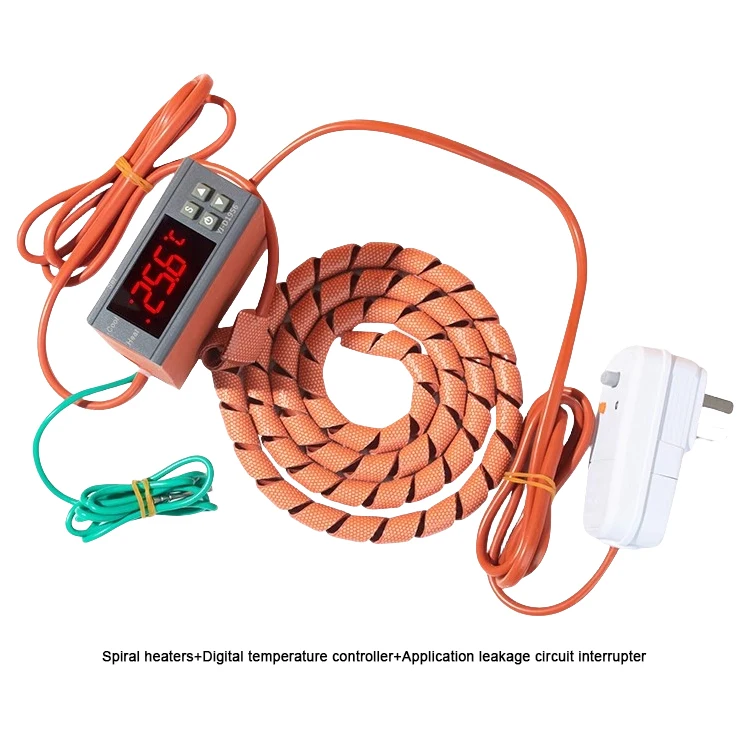

3mmx300mm 12v 24v 220v Silicone Rubber Spiral Heater Spiral Wrap Heaters Silicone Heating Belt With Temperature Controller
3mmx300mm 12v 24v 220v Silicone Rubber Spiral Heater Spiral Wrap Heaters Silicone Heating Belt With Temperature Controller
Description
3mmx300mm 12v 24v 220v Silicone Rubber Spiral Heater Spiral Wrap Heaters Silicone Heating Belt With Temperature Controller
Product Description
CONSTRUCTION:
Constructed using a spiral wire element encased between two layers of silicone rubber, spiralheaters are well suited to fit curved or straight pipework, The standard range is suitable to suit¼” (6.35mm) outer diameter and can be supplied in six different lengths. With a maximumoperating temperature of 200’C and the option to add a variety of temperature sensors, spiralheaters provide an ideal solution to heating pipes in many applications.
Constructed using a spiral wire element encased between two layers of silicone rubber, spiralheaters are well suited to fit curved or straight pipework, The standard range is suitable to suit¼” (6.35mm) outer diameter and can be supplied in six different lengths. With a maximumoperating temperature of 200’C and the option to add a variety of temperature sensors, spiralheaters provide an ideal solution to heating pipes in many applications.
CHARACTERISTICS:
Spiral heaters have good resistance to thefollowing; weather & ageing, fungus &bacteria, acetone, alcohol, formic acid, brakefuid, acetic acid, greases, hydrochloric acid10%,sulphuric acid 10%,waxes andplasticisers. In addition to this the heatershave adequate gas permeability and goodsteam resistance up 130℃and 2.5 barrespectively.
Spiral heaters have good resistance to thefollowing; weather & ageing, fungus &bacteria, acetone, alcohol, formic acid, brakefuid, acetic acid, greases, hydrochloric acid10%,sulphuric acid 10%,waxes andplasticisers. In addition to this the heatershave adequate gas permeability and goodsteam resistance up 130℃and 2.5 barrespectively.
TECHNICAL DATA | |
THICKNESS | 1.5mm |
TEMPERATURE RANGES | -60°C – 200°C |
POWER RATING | 0.26 – 0.3W/Cm2 |
THERMAL CONDUCTIVITY | 0.22 (Watt/Metre/K) |
MATERIAL | Spiral wire on a fbreglasscord & silicone rubber andglass fbre sheets |
MAIN POINTS:
*Suitable for Straight or Curved Pipe.Robust *Spiral Heating Element
* Easy to Install
*UL& CE&ROHS Approval Available
*IP64 Protection

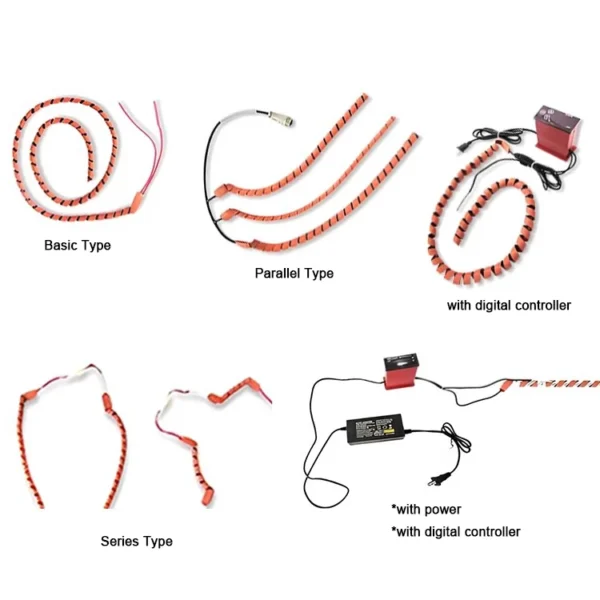

.*Incorporated Temperature Sensors *Available.Stand-Alone Heaters or Parallel
*Suitable for Straight or Curved Pipe.Robust *Spiral Heating Element
* Easy to Install
*UL& CE&ROHS Approval Available
*IP64 Protection
.*Incorporated Temperature Sensors *Available.Stand-Alone Heaters or Parallel
SIze | Voltage | power |
6*300mm | 12V | 20W |
6*300mm | 24V | 20W |
6*300mm | 220V | 20W |
6*500mm | 12V | 30W |
6*500mm | 24V | 30W |
6*500mm | 220V | 30W |
6*800mm | 12V | 50W |
6*800mm | 24V | 50w |
6*800mm | 220V | 50W |
6*1000mm | 12V | 60W |
6*1000mm | 24V | 60W |
6*1000mm | 220V | 60w |
HEALTH & SAFETY:Spiral heaters are intended for use inindustrial electric apparatus.he heater has tobe operated in accordance with thesestandard and regulations and should beinstalled on an electrical system protected bya residual current circuit breaker.
