Description
0-1800c B Type Thermocouple Sensor for Ceramic Kiln Furnace 2912 Fahrenheit 1600 Degree WRP-100 Thermocouple S R K Type
Product Description

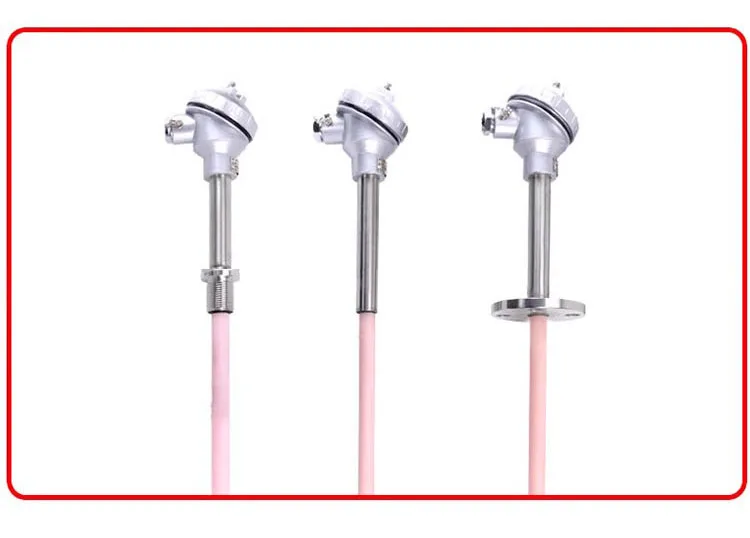

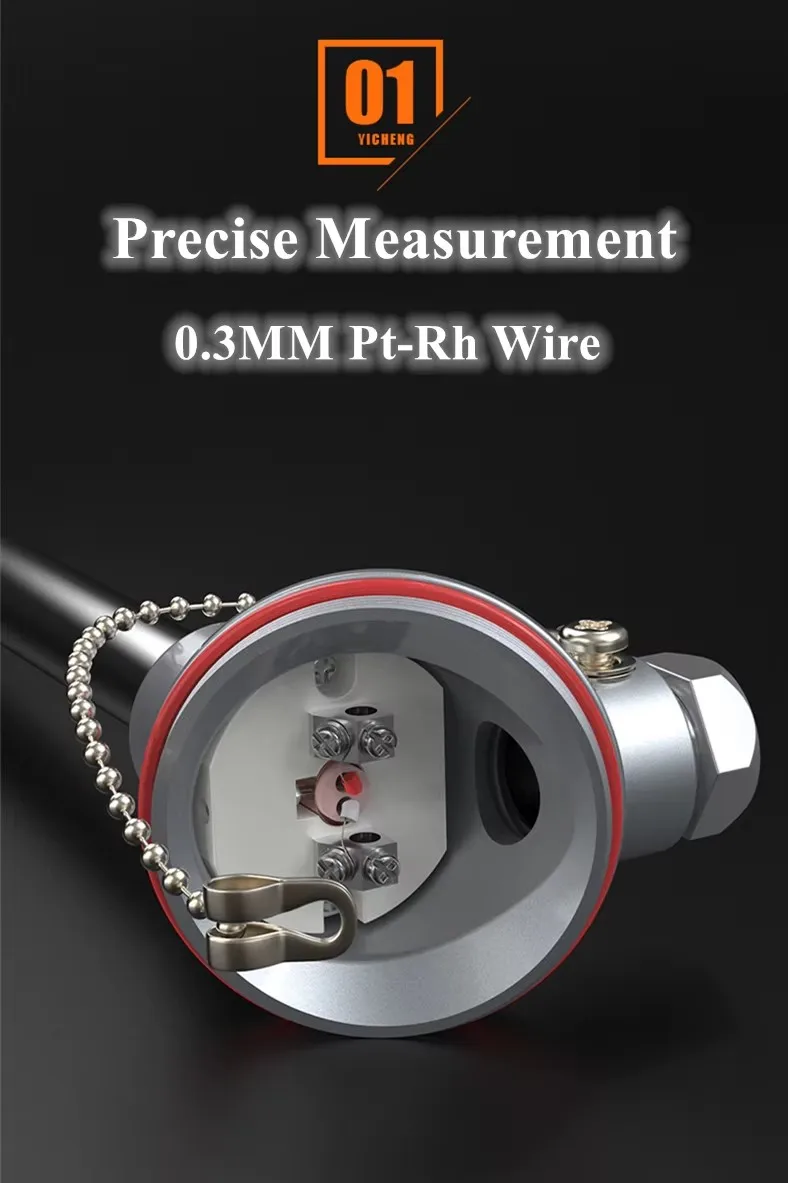

Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, ceramics. It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
Specification
Product name | Platinum rhodium thermocouple |

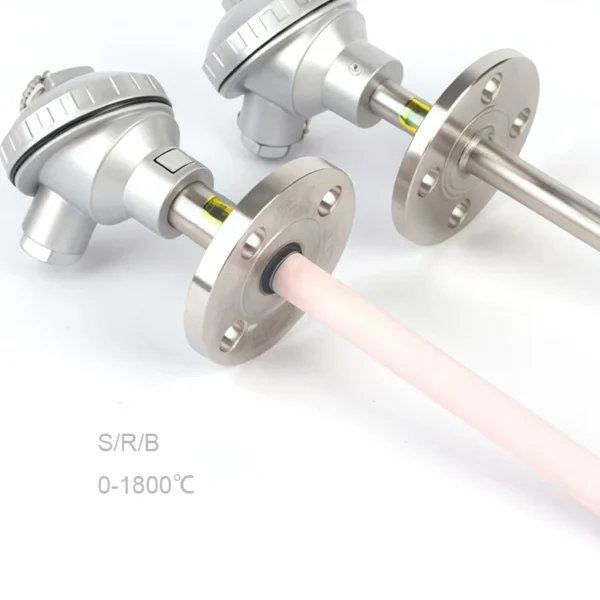

Type | S/R/B |

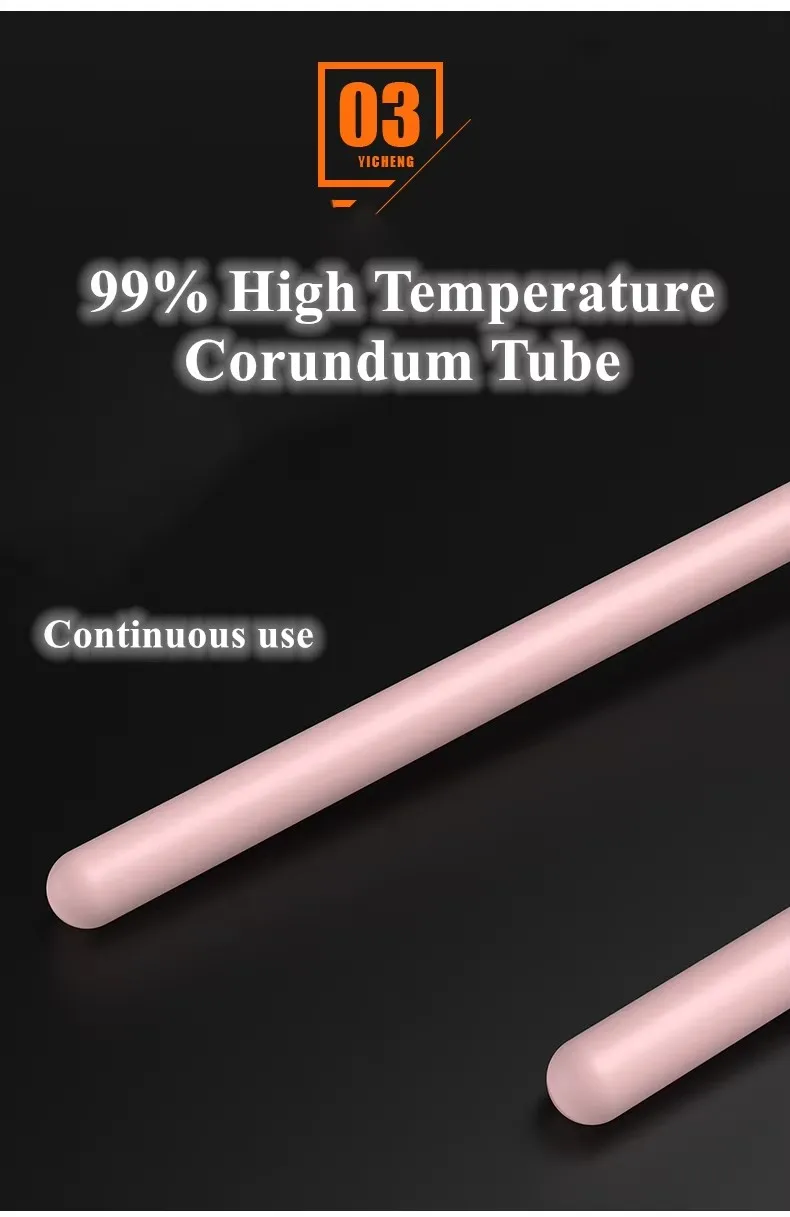

Material | 99% high temperature corundum tube, Or GH3039 high temperature alloy tube or SIC protection tube |
Stainless steel tube | OD φ22mm |
Ceramic tube | OD φ16mm |
ConductorMaterial | Type | Graduation | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
