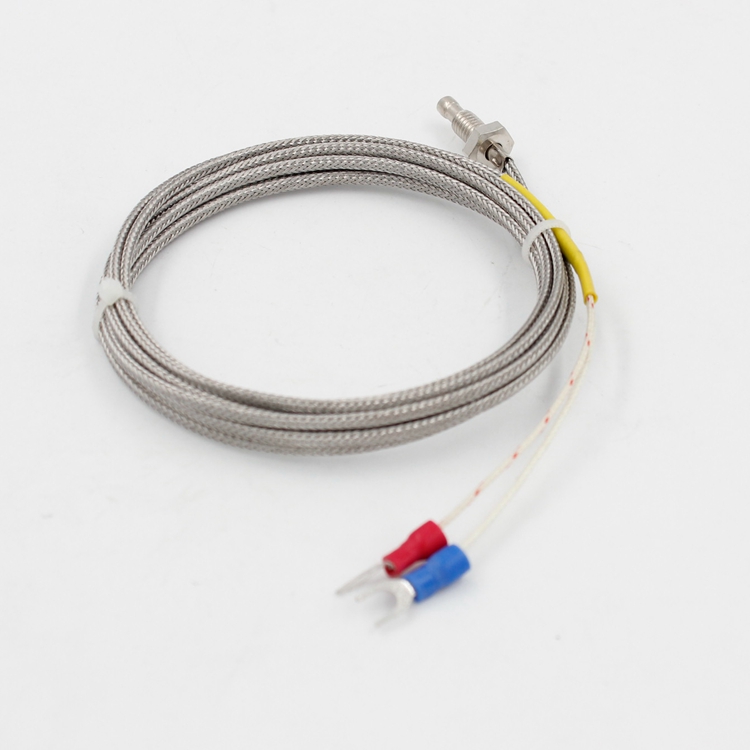

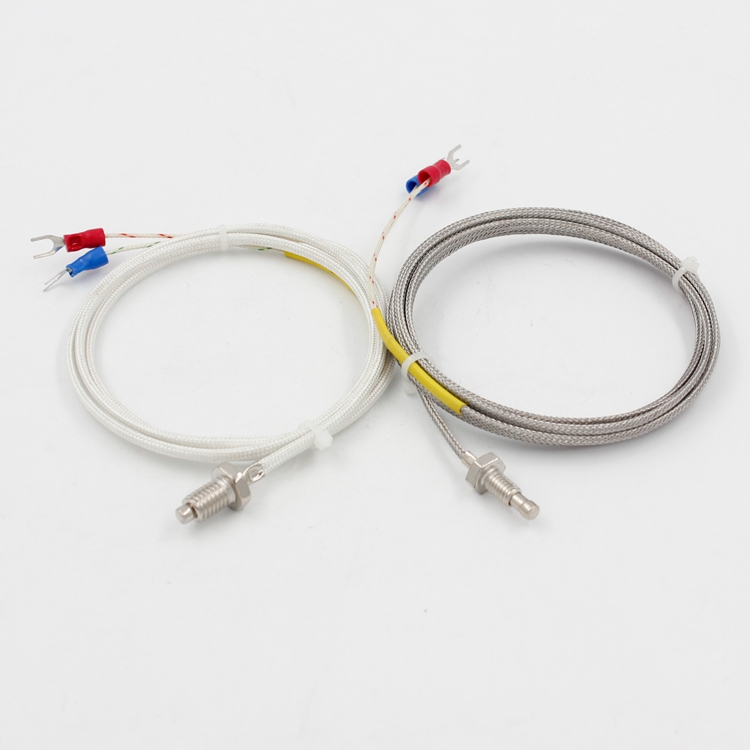

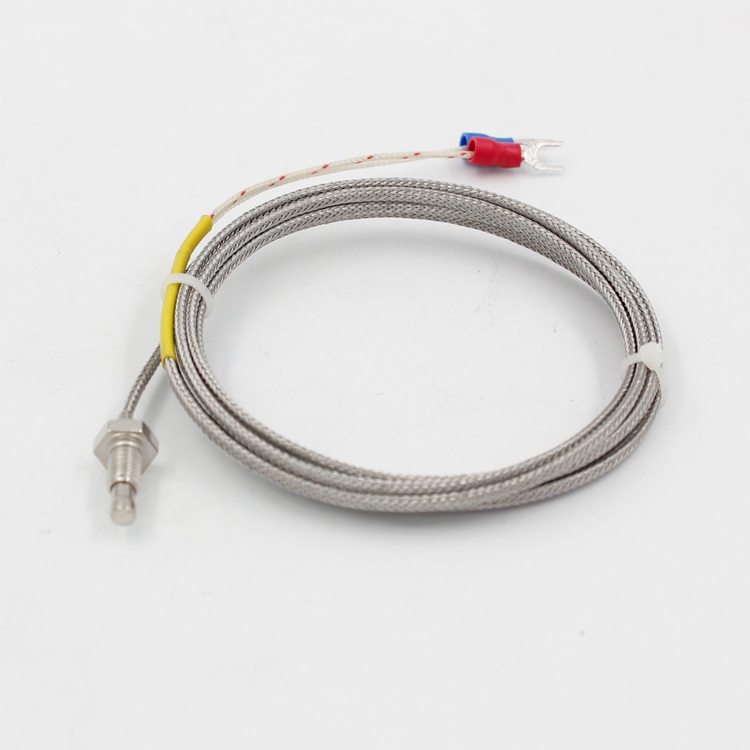

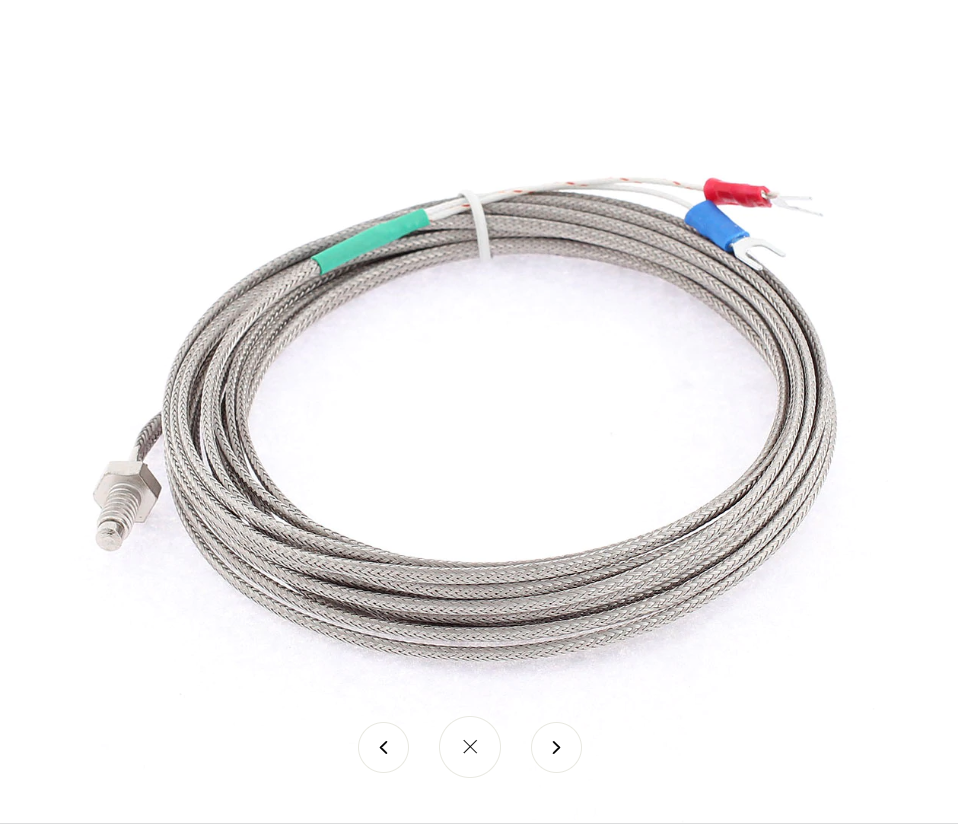

Industrial M6 M8 Screw Thermocouple K Type Temperature Range 0-800C Sensor Probe
Screw Thermocouple: Temperature sensor that uses a threaded probe, ideal for measuring surface temperature of plastics, rubber and similar materials.
Opis
Industrial M6 M8 Screw Thermocouple K Type Temperature Range 0-800C Sensor Probe
Opis produktu
Screw thermocouple is suitable for measuring the surface temperature of turbine and motor bearing or other body in power plant. The end thermocouple is suitable for measuring the surface temperature of turbine, motor bearing or other body in power plant. Widely used in packaging food, pharmaceutical, plastic machinery, guma, oven, etc., high quality, can completely replace the import of similar products. The outer layer of the shield wire is tightly woven and flexible.
Specyfikacja
Type K (chromel – alumel) is the most common general purpose thermocouple with a sensitivity.Specifications: High quality.Model: K – Type Screw type thermocoupleScrew head specification: M6 (default M6, if M8 or other, please contact the seller). Tail length: 1000mm -10000mm (can be customized)Temperature Range: 0-800.Thread Diameter: 6mm / 0.23.Internal Insulation: Fiberglass.External Shielding: Metal Shield.Indexing number: K, mi, etc. (can be customized) Indexing number: K, mi, Pt100…… The linear thermocouple K type use temperature is generally not more than 600 stopni; E-type use temperature generally not more than 400 stopni; Pt100 thermal resistance temperature -200+450 stopni, if you have special requirements, please contact the seller.
Cable Material | Shielded wire, Fiberglass, PTFE, Krzem |
Thread Size | M5/M6/M8 |
K | 0-800°C |
J | 0-600°C |
mi | 0-400°C |
PT100 | -200-500°C |
Thread Size | M6*1/M6*1.25 |
