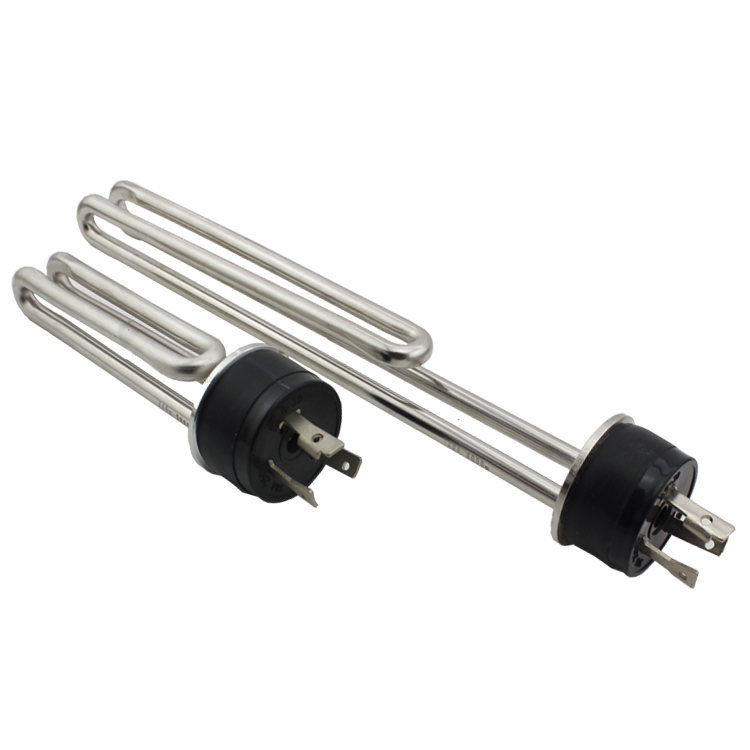

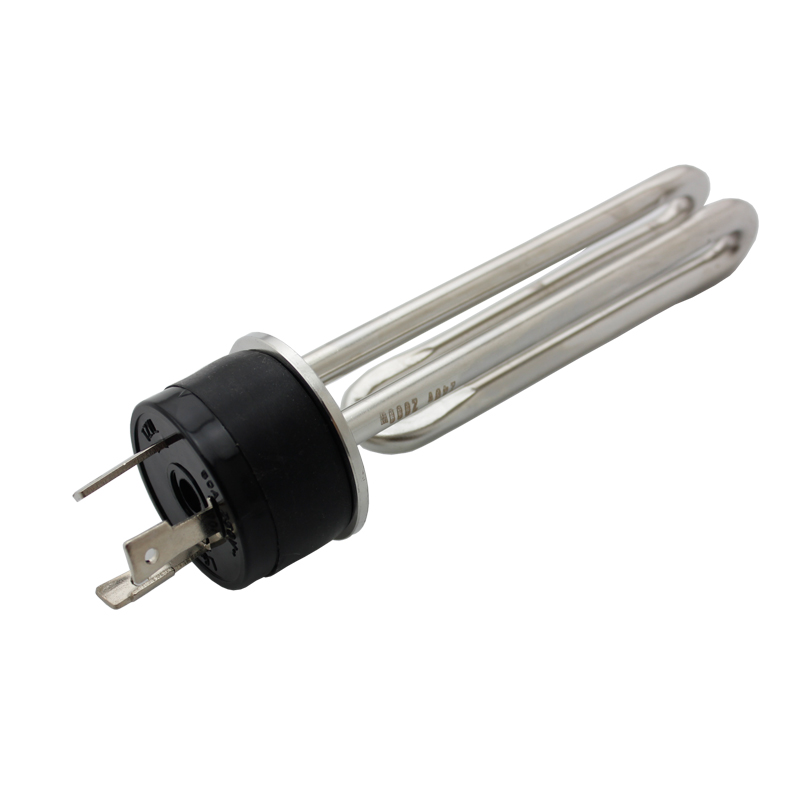

CE Certification Tri-clamp Immersion Tubular Heating Element With L6-30p Plug
The Immersion Tubular Heating Element is a versatile and durable heating solution used in various industrial and commercial heating applications, providing efficient heat transfer.
Opis
CE Certification Tri-clamp Immersion Tubular Heating Element With L6-30p Plug
Opis produktu
This product is mainly sales to the Occident Such as America and China,it’s mainly used in brewing equipment heating.to reduce it’s power density,choose ripple and foldback type,therefore it has much longer life.
Technical Parameter | |
Średnica rury | Φ6mm – φ20mm |
Długość rury | 200mm – 2000mm |
Length Tolerance | ±1.5% |
Napięcie | 110V/220V/230V/240V/380V/415V |
Moc | Custom made heaters can be supplied with any requested wattage |
Heating Power | 100W – 10KW |
Tolerancja mocy | +5% – 10% |
Drut oporowy | Ni80Cr20 or Cr25AI5 |
Sheath Materials | 304 Stal nierdzewna, , 310 Stal nierdzewna, 316 Stal nierdzewna, Incoloy 800, Incoloy 840 |
Surface Treatment | Polishing, coating, plating |
How to order ?
Pls provide this informations as follows:(example)
1.Vottage :220/380V 2.Wattage :6KW3.Length: 600MM4.Thread: 1 1/2″5. Materiał: Stal nierdzewna, AISI 321 304, SUS 316L
Aplikacja
1. Livestock water tank deicer (low amp draw means you won’t drain your battery as fast)2. For keeping dog, cat, and other domestic animals water from freezing3. Standard American water heater element replacement4. Water preheating5. Obozowicze, Motor homes6. Emergency hot water7. Portable commercial, industrial machines and equipment8. Runs off your car battery for portable hot water anywhere9. Direct wind and solar applications
