Name: 48V 600W Stainless Steel Immersion Heater RV Water Heater Heating Element - A Pioneering Force In Electrical Heating Industry
Price: 5.00 USD
Availability: InStock

Opis

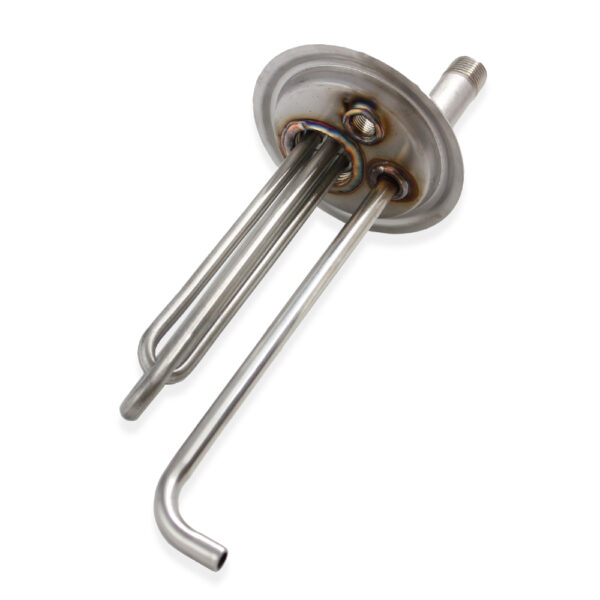

48V 600W Stainless Steel Immersion Heater RV Water Heater Heating Element

1. The heating elements can be used for both dc(solar PV , battery 12V/24V/36V/48V or custom)and AC electricity(110v/220v/380v or custom), according to customers’ requirements.
2. There are many types of terminals for wiring.

3.We fill the tube with high purity magnesium oxide powder for longer service life.

4.Custom the Flange size, sheath material, watt,voltage, immersion length, according to applications.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,ul,CSA certified.Any request, please do not hesitate to let me know.

cechy produktu:

* The size and power all can be designed according to the working environment

* More safer than AC electric

* Environment protection and energy saving.

Specyfikacja

Technical Parameter
Średnica rury	Φ6.8mm – φ20mm
Długość rury	200mm – 2000mm(customized)
Thread/tri-clamp/Flange	1”/1.25”/1.5″ lub dostosowane
Tolerancja długości	±1.5%
Napięcie	12V/24V/36V/48V/110v/220V/380V or Customized
Moc	300W/500W/1kw /1.5kw/3kw or customized
Rezystancja izolacji	≥1000M
Tolerancja mocy	+5% – 10%
Leakage current	≤0,5 mA
Drut oporowy	Ni80Cr20 or Cr25AI5
Sheath Materials	304 Stal nierdzewna, , 310 Stal nierdzewna, 316 Stal nierdzewna, Incoloy 800, Incoloy 840
Surface Treatment	Polishing, coating, plating

How to order ?Pls provide this informations as follows:(example)1.Vottage :220/380V 2.Wattage :6KW3.Length: 600MM4.Thread: 1 1/2″5. Materiał: Stal nierdzewna, AISI 321 304, SUS 316L

Aplikacja

This product is applicable to Standard American water heater element replacement, Podgrzewanie wody, Obozowicze, Motor homes, maszyny i urządzenia przemysłowe, Wykorzystuje akumulator samochodowy do przenośnej ciepłej wody w dowolnym miejscu, Bezpośrednie zastosowania wiatrowe i słoneczne oraz wiele innych, many more uses where heat or diversion loads are needed.
