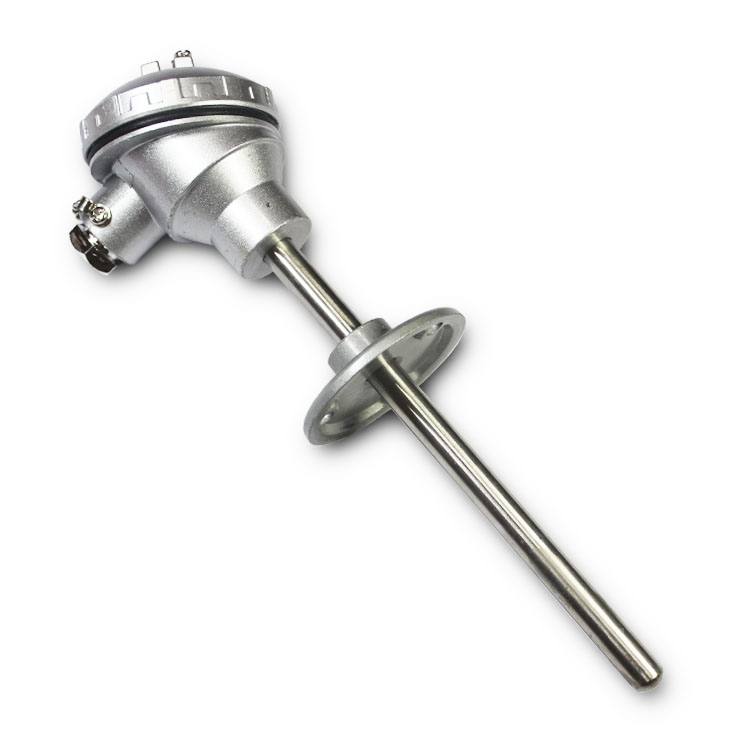

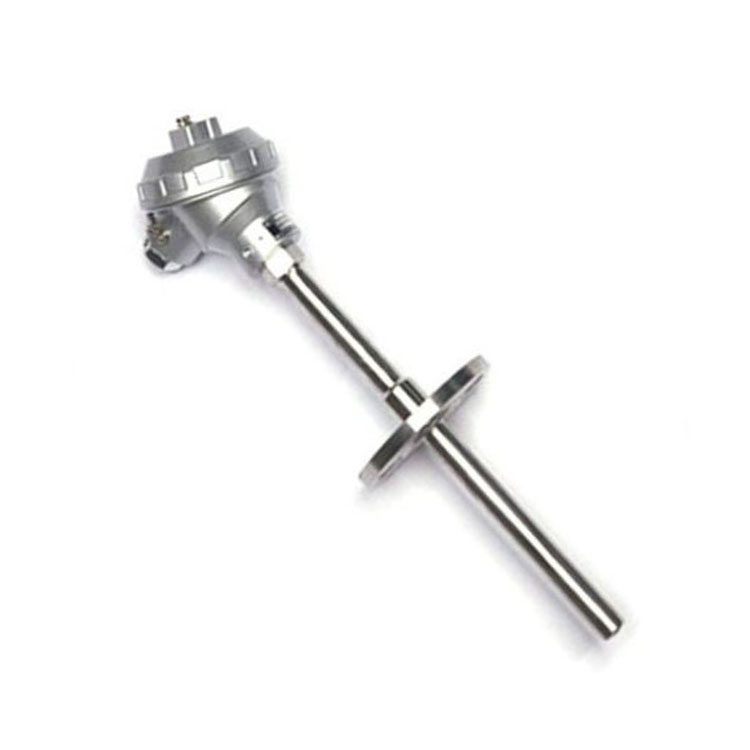

WRN-430 Industrial Thermocouple Stainless Steel J Type Thermocouple
WRN-430 industrial thermocouple is a rugged and durable temperature sensor used for high-temperature measurements in industrial applications.
설명
WRN-430 Industrial Thermocouple Stainless Steel J Type Thermocouple
제품 설명
Iron-copper nickel thermocouple (J type thermocouple), also known as iron-Constantan thermocouple, is also a cheap cheap metal thermocouple. Its positive electrode (JP) in the name of the chemical composition of pure iron, copper and nickel alloy anode (Jacqueline Nottingham), are often vaguely call constantan, its nominal chemical composition of: 55% copper and 45% nickel as well as small amounts of very important manganese, cobalt, iron and other elements, although it’s called constantan, but different from that of nickel and chromium – constantan and copper-constantan constantan, so can’t use EN and TN to replace. Iron-constantan thermocouples cover the temperature range of -200~1200℃, but the temperature range is usually 0~750℃ .
WRN-430 Industrial Thermocouple has the advantages of good linearity, large thermoelectric emf, high sensitivity, good stability and uniformity, and low price, etc., which are widely used by users.
애플리케이션
J type thermocouple can be used in vacuum, oxidation, reduction and inert atmosphere, but the positive iron oxidation at high temperature faster, so the use temperature is limited, can not be directly unprotected in high temperature vulcanization atmosphere.
Specifications and Advantages
1, 높은 명중률, good stability
2, popular and economic
3, 넓은 온도 범위: 0-1300
4, 100% 자격을 갖춘 공장 테스트.
사양
유형： 케이
평균: WRN-430
원 직경: 맞춤형
온도 범위: 0-1300씨
튜브 재질: SS310/304/316, 인코넬 600/세라믹
고정: 나사/플랜지/없음
케이블: 스테인레스/실리콘/FEP
유형 | 눈금 | 공차 등급 | |||
Ⅰ | Ⅱ | ||||
공차 값 | 측정 범위°C | 공차 값 | 측정 범위°C | ||
경고 | 케이 | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004/t/ | 375~1000 | ±0.0075/t/ | 333~1200 | ||
WRM | N | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004/t/ | 375~1000 | ±0.0075/t/ | 333-1200 | ||
WRE | 이자형 | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004/t/ | 375~800 | ±0.004/t/ | 333~900 | ||
WRF | 제이 | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004/t/ | 375~750 | ±0.004/t/ | 333~750 | ||
WRC | 티 | ±1.5°C | -40~+125 | ±1°C | -40~+133 |
±0.004/t/ | 375~350 | ±0.0075/t/ | 133~350 |
세부 이미지
방수 정션박스
나사산과 보호 튜브를 정밀 용접하여 밀봉 및 방수 보장, 안정적인 성능, 튼튼한, 긴 서비스 수명
원활한 인터페이스
아르곤 아크 용접 인터페이스, 매끄러운 용접
304 스테인레스 스틸 파이프
고온 저항, 빠른 반응, 높은 정밀도, 더욱 안정적인 성능
하단 씰링
technology
독일 씰링 기술 도입, 충격 저항과 압력 저항
제품 쇼
