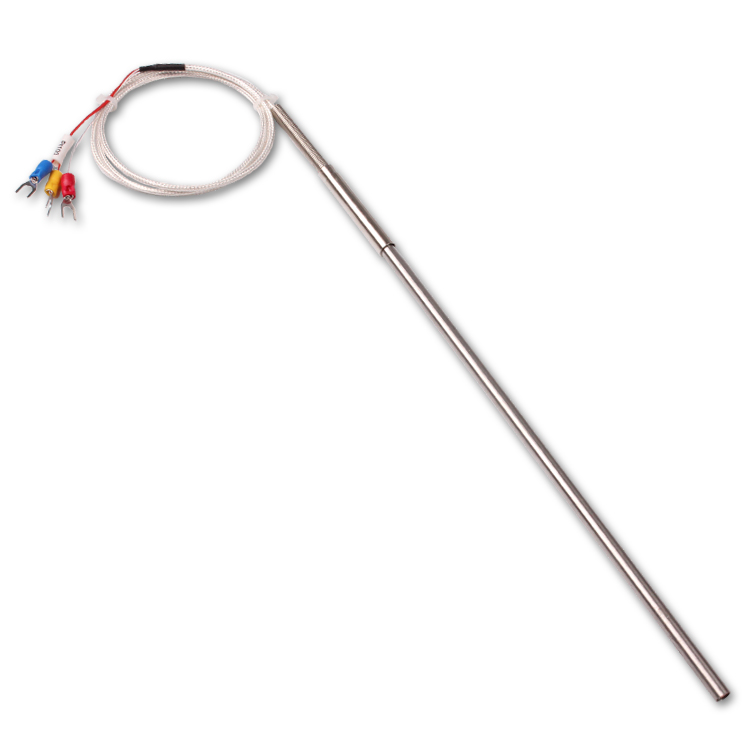

Probe Bending High Temperature Sensor Armored Thermocouple k Type Wrnk191
Highly durable armored thermocouple with strong protection against abrasion, corrosion, and impact.
설명
Probe Bending High Temperature Sensor Armored Thermocouple k Type Wrnk191
제품 설명
Armored thermocouple can bend, high pressure resistance, heat resistance, heat fast response time and strong and durable wait for an advantage, it has to do with prefabricated thermocouple, heat resistance, as measure temperature sensor, and display instrument, instrument and electronic regulator usually used, at the same time also can be used as a prefabricated thermocouple, thermal resistance of thermal components. It can directly measure the temperature of liquid, vapor and gas media and solid surfacein various production processes from 0℃ to 1100℃(열전대), -200 ℃ to 500℃(thermal resistance).
Armored Thermocouple Features:①Less thermal response time, reduce the dynamic error; ②Flexible installation and use; ③Large measurement range; ④High mechanical strength, 좋은 압력 저항
사양
상품명 | Armored Thermocouple |
유형 | Default K type (can be used as PT100/J/T/E/N, etc.) |
제품 모델 | WRNK-191 |
온도 범위 | 0-1100 도 |
프로브 직경 | There are 0.5/1.5/2/2.3/2.5/3/4/5/6/8/10 diameters for selection |
프로브 길이 | Customized according to customer requirements |
리드 길이 | The default lead length is 1500mm under the price, which can be customized according to customer requirements |
프로브 재료 | SS321, SS316L, SS310S, SS446, incl600, incl800, 등. |
알림: 프로브 직경이 클수록, 더 나은 온도 저항 효과.
적절한 직경과 재료에 적응할 수 있도록 구매자는 실제 측정 범위를 최대한 제공해야 합니다..
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
스테인레스 스틸 프로브
Choose national standard 304 stainless steel raw material.
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
모델 | 눈금 | Temperature Range°C | Protective Tube Material | Mounting Fixtures |
WRPK-231 | 에스 | 0~1300 | GH3039 | No fixture |
WRMK-231 | N | 0~1100 | GH3039 | |
0~800 | 1Cr18Ni9Ti | |||
WRNK-231 | 케이 | 0~1100 | GH3030 | |
0~800 | 1Cr18Ni9Ti | |||
WREK-231 | 이자형 | 0~600 | 1Cr18Ni9Ti | |
WRCK-231 | 티 | 0~350 | 1Cr18Ni9Ti | |
WRFK-231 | 제이 | 0~500 | 1Cr18Ni9Ti |
The thermal response time shall not exceed that specified in the following table :(s) | ||
지름(mm) | 열전대 | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
유형 | 눈금 | 공차 등급 | |||
Ⅰ | Ⅱ | ||||
공차 값 | 측정 범위°C | 공차 값 | 측정 범위°C | ||
경고 | 케이 | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004/t/ | 375~1000 | ±0.0075/t/ | 333~1200 | ||
WRM | N | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004/t/ | 375~1000 | ±0.0075/t/ | 333-1200 | ||
WRE | 이자형 | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004/t/ | 375~800 | ±0.004/t/ | 333~900 | ||
WRF | 제이 | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004/t/ | 375~750 | ±0.004/t/ | 333~750 | ||
WRC | 티 | ±1.5°C | -40~+125 | ±1°C | -40~+133 |
±0.004/t/ | 375~350 | ±0.0075/t/ | 133~350 |

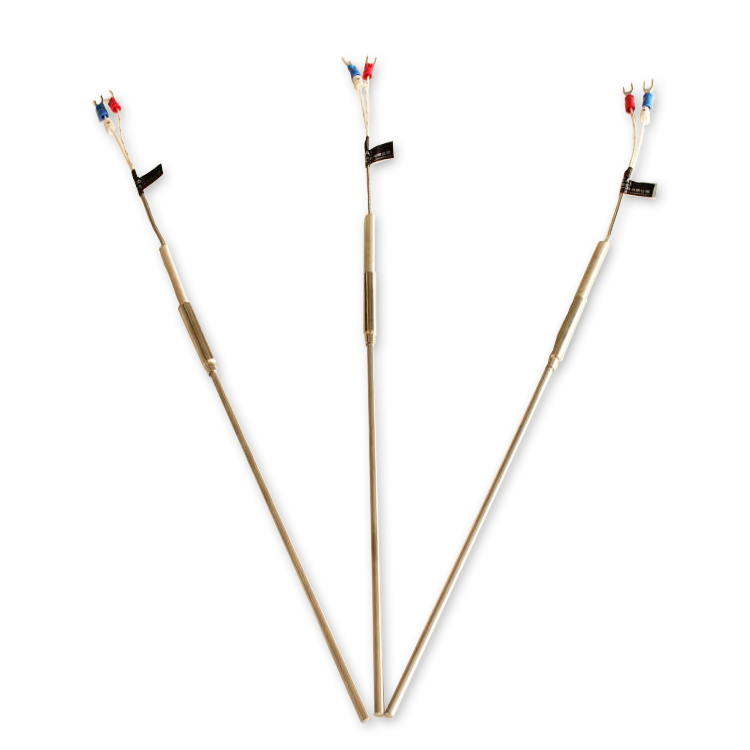

제품 쇼
