AGRP Silicone Braided Wire High-temperature Resistant Wire Waterproof Oil-resistant and Scratch-resistant Heating element
$3.39
설명
제품 설명

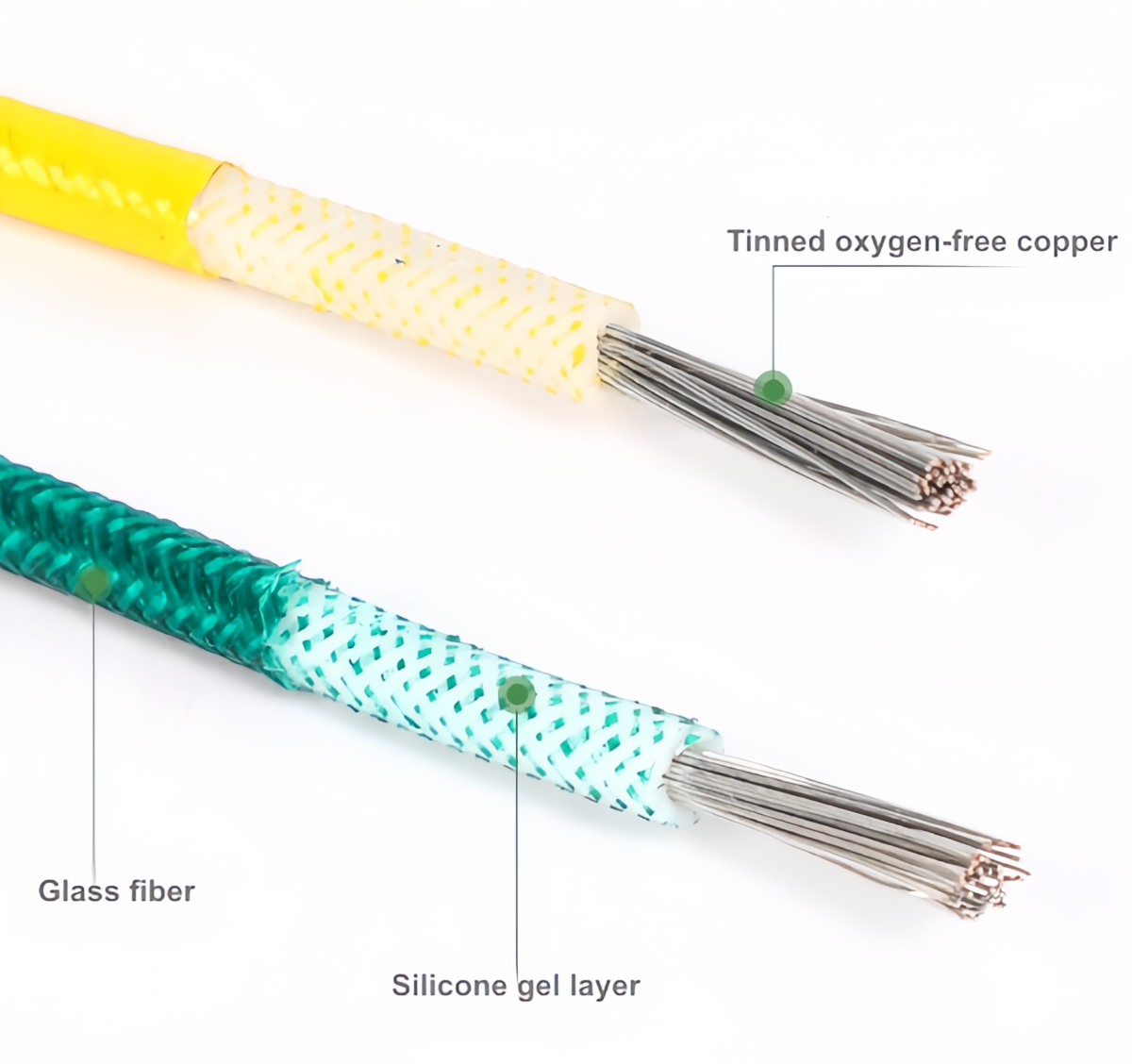

The core wire of the product is made of AGRP silicone material, combined with high-purity conductor core wires. It has excellent high-temperature resistance and can maintain a stable operating temperature range of -60℃ to 200℃ for a long time. The instantaneous high-temperature resistance can reach 250℃. Even in harsh environments such as sealed, high-temperature industrial furnaces or car engine compartments, the insulation layer of the wire can remain intact without aging or cracking, and the heating elements can operate normally. This effectively avoids potential safety hazards such as short circuits and leakage caused by high temperatures, significantly enhancing the reliability of equipment operation.


사양

상품명 | Silicone braided high-temperature wire |
모델 | AGRP |
Wire core material | Tinned copper wire |
Wire core specification | 0.25MM2*30 |
단열재 | Silicone rubber + glass fiber weaving |
전압 | 300V、500V |
온도 범위 | -60’℃-200°C |
Cross-section | Conductive structure | 단열재 두께 | 지름 |
0.3m㎡ | 17/0.15mm | 0.6mm | 1.8±0.05mm |
0.35m㎡ | 20/0.15mm | 0.6mm | 1.9±0.05mm |
0.5m㎡ | 20/0.18mm | 0.6mm | 2.2±0.05mm |
0.75m㎡ | 24/0.20mm | 0.6mm | 2.4±0.10mm |
1m㎡ | 30/0.20mm | 0.6mm | 2.5±0.10mm |
1.5m㎡ | 30/0.25mm | 0.7mm | 2.9±0.10mm |
2m㎡ | 40/0.25mm | 0.7mm | 3.1±0.10mm |
2.5m㎡ | 49/0.25mm | 0.8mm | 3.7±0.10mm |
4m㎡ | 56/0.30mm | 0.8mm | 4.2±0.10mm |
6m㎡ | 84/0.30mm | 0.8mm | 5.0±0.10mm |
10m㎡ | 84/0.40mm | 1.0mm | 6.8±0.10mm |
16m㎡ | 126/0.40mm | 1.0mm | 8.0±0.10mm |
25m㎡ | 196/0.40mm | 1.2mm | 10±0.20mm |
35m㎡ | 280/0.40mm | 1.4mm | 11.8±0.20mm |
50m㎡ | 399/0.40mm | 1.6mm | 13.6±0.20mm |
