500C High Temperature Fiberglass Braid Heating Belt/electric Power Cable Heat Trace Cable Heating Tape for Pipeline

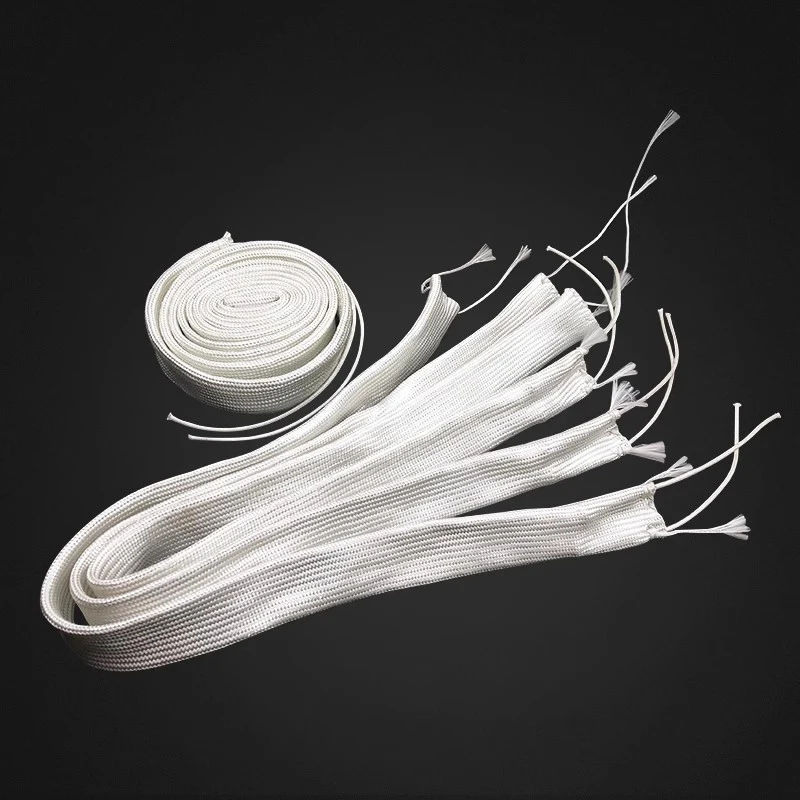

Structural Performance(1) It is mainly composed of nickel-chromium alloy wires and insulating material, and has fast heating speed, high heat efficiency and long service life.(2) Alkali-free glass fiber core rack is wound with electric heating wires, fiberglass is used as main insulation, the heatresistance performance is excellent, and the insulation performance is reliable.(3) It has great flexibility, and can be directly wound on a to-be-heated device, with good contact and uniform heating.Note: fiberglass heating cable do not have the functions of waterproof and moistureproof .

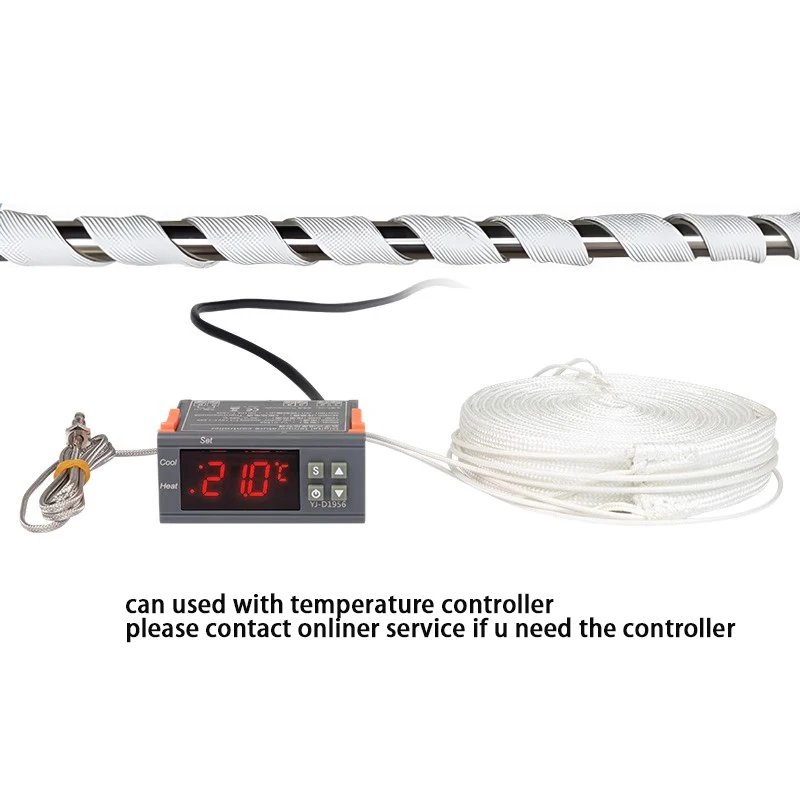

Step 1: Pipe Surface PreparationPrepare surface to be heated: Wipe the surface making sure there is no foreign material, like liquid, on the surface. Foreignmaterial inhibits heat transfer and liquid can damage select models of heating tape (즉. HighTemperature Heating Tapes).Make a visual inspection of heating tape: We recommend that you replace the heating tape if it becomes torn or damaged. Damaged heating tape is a safety hazard and will not operate correctly.Step 2: Heating Tape Installation (wrap)Heating tape can be installed on nearly any surface due to its flexibility. Spiral wrap the heating tape onto the surface to beheated so that the length of one entire side of the heating tape is in full contact with the surface .The distance between spiral wraps is dependent on the uniformity requirements and the amount of available heating tape. A minimum distance of 1/8” is required between spiral wraps to avoid damage to the heating tape.Attach the heating tape to the surface by either using built-in tie straps, high-temperature adhesive tape or mechanical clamping devices that will not cause damage to the heating tape.Ensure the heating tape is not kinked, twisted, or hanging free from the surface.Do not overlap heating tape on itself.This can cause damage to the heating tape due to overheating.Step 3: Connecting Your Heating Tape to a Temperature Controlling DeviceYour heating tape must be connected to an external temperature control device. Ensure your temperature controller is protected by a properly sized circuit breaker or fuse. Use of a ground fault circuit interrupter is highly recommended and may be required for your installation.For proper temperature control, secure a thermocouple, RTD, or other sensing device with one strip of adhesive tape so that it is in close proximity to the heater to prevent overheating.

1. 우리는 누구인가??우리는 장쑤성에 본사를 두고 있습니다., 중국, 2010년부터 시작하여 오세아니아에 판매(50.00%),북아메리카(30.00%),남아메리카(10.00%),남부 유럽(10.00%). 총 약이 있습니다 11-50 우리 사무실에 있는 사람들.2. 품질을 어떻게 보장할 수 있나요??대량 생산 전 항상 사전 제작 샘플;항상 배송 전 최종 검사;3.우리한테서 뭘 살 수 있어??카트리지 히터/캐스트인 히터/순환 히터/엔진 블록 히터/오픈 코일 히터, 핀 히터/스트립 히터/가열 요소4. 왜 다른 공급업체가 아닌 우리에게서 구매해야 합니까??1.이상 40 수년간의 경험
2.UL CE RoHS CQC ISO9001:2008
3.R&D팀
4.테스트 보고서 제공
5.제품 디자인 지원5. 우리는 어떤 서비스를 제공할 수 있나요??허용되는 배송 조건: 본선 인도,CFR,CIF,EXW,DDU,특급 배송；허용되는 결제 통화:USD,EUR,CNY;허용되는 결제 유형: 티/티,신용장,D/P D/A,돈 그램,신용 카드,페이팔,웨스턴 유니언,현금,조건부 날인 증서;사용 언어:영어,중국인,프랑스 국민
