Name: 0.711mm Glassfiber Insulated Thermocouple Wire Yellow Red Type K Extension Cable 600C High Temp PWHT Accessories Cable - A Pioneering Force In Electrical Heating Industry
Price: 0.50 USD
Availability: InStock

설명

0.711mm 유리 섬유 절연 열전대 와이어 노란색 빨간색 유형 K 연장 케이블 600C 고온 PWHT 액세서리 케이블

제품 설명

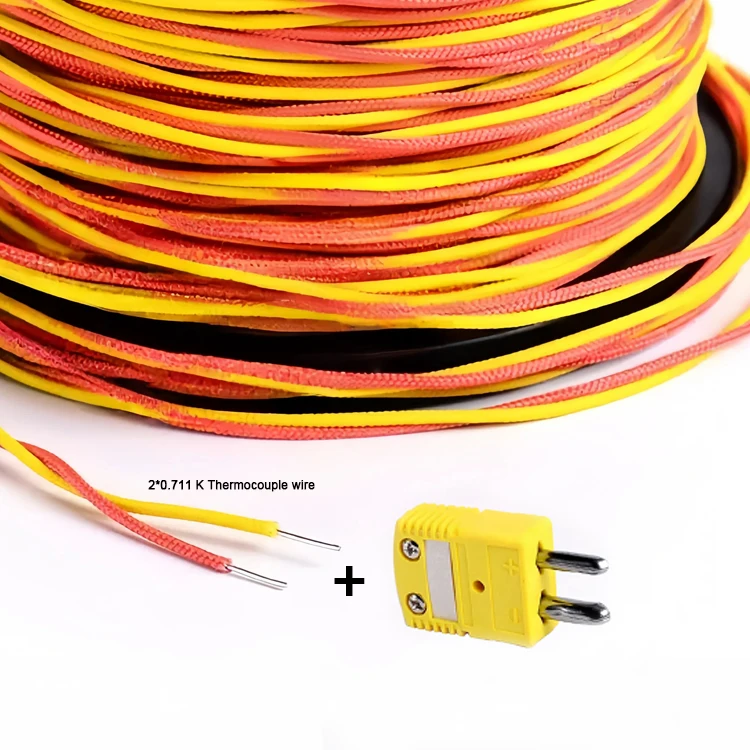

Type K thermocouple wire, insulated with high temperature glass braid, is used to convert the thermal energy at the hot junctionof thermocouple to an electrical mV signal which can then be used by temperature control and recording instruments to accuratelyrecord and control the temperature of the item being heat treated. – Type K – Grade A, 정확성 +/- 1.1℃- Two core conductors insulated by glass-fiber twised together- 재료 : 1/0.71mm NiCr & 1/0.71mm NiSi, 1/0.65mm NiCr & 1/0.65mm NiSi,1/0.51mm NiCr & 1/0.51mm NiSi and 0.8mm wire.

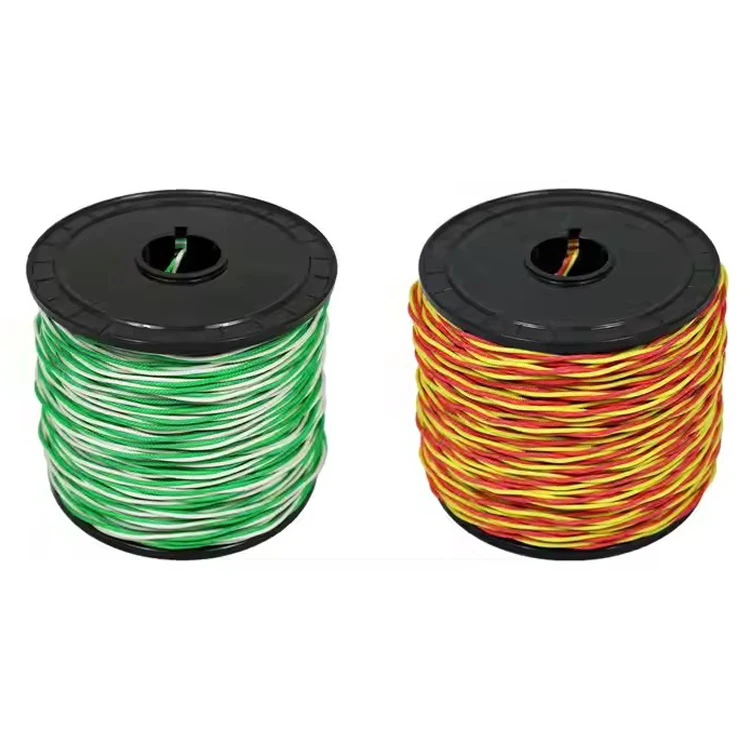

– Max Working Temperature : 800℃- Conforms to Standard : GB/T 2614-2010, BSEN 60584-2, ASTM E230-1993, ANSI MC96.1-1982, IEC 584-2:1982- Jacket Colour : 빨간색 (-) / Yellow (+), or Green(-) / 하얀색 (+)포장: come in 100m/roll Application: 1. 난방 – Gas burners for ovens2. Cooling – Freezers3. Engine protection – Temperatures and surface temperatures4. High temperature control – Iron casting

사양

Item Name	Type K Thermocouple Cable
Conductor Material	+Chromel -Alumel

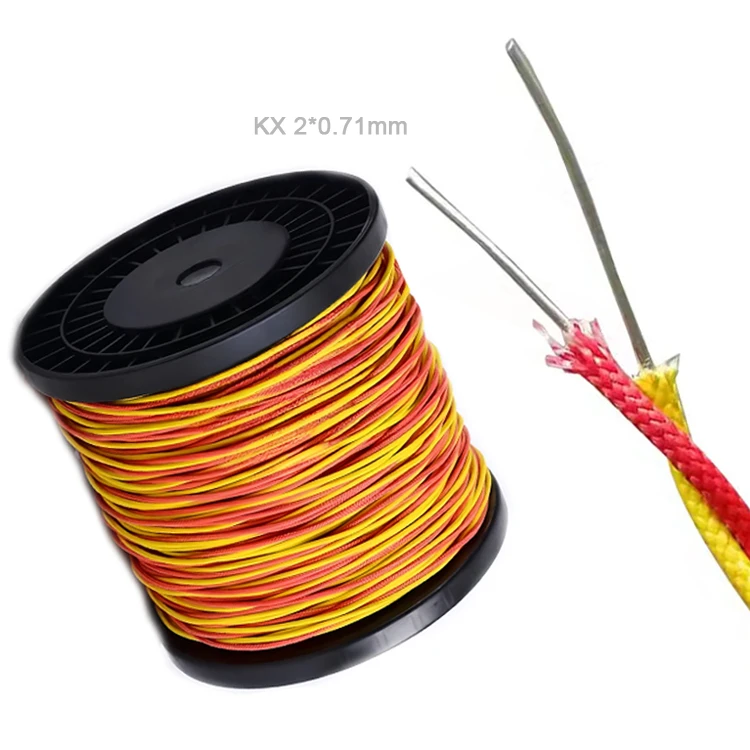

Conductor Dia	2*0.71mm(± 0.02mm)
Insulated material and Thickness	High Temperature Fiberglass (600℃,Max 700℃) 0.25mm
Insulated Diameter	1.2mm(±0.1mm)
Insulated Color	ANSI(+Yellow -Red )
Finished Cable Diameter	1.4mm*2.85mm (±0.2mm)
패키지	100m/ roll
정확성	Class I (티 *0.4%)

재료	PTFE	PFA	PVC	섬유유리	규소	캡틴	석영섬유
최대 온도(°c)	260	260	108	400	200	400	800

Applications* Metallurgy* Chemical industry, petroleum* Power generation* Defense and scientific research* Cables for connection between thermocouples and temperature display instrument.Features1) Continuous use up to 200℃2) Short term use up to 250℃3) Excellent heat, 화학적인, abrasion and moisture resistance4) Provides accurate temperature measure with high temperature stability5) Calibration test report is available

Safety * No personal protective equipment required when used under normal operating conditions.

* Product represents no health risk when used under normal operating conditions

* In case of smoke inhalation during combustion remove casualty to fresh air and seek medical attention.

* In case of ingestion seek medical attention * Good industrial hygiene practices should be followed.

* If skin irritation occurs area should be flushed with cold water

* If glass dust is produced due to rough handling it should be washed off immediately. In case of contact with eyes flush well with plentiful amounts of clean water and seek medical attention
