Adjustable Temperature Electric Spiral Heating Belt Silicone Rubber Heating Tape Thin Pipe Heating Belt Winding Heating element

Adjustable Temperature Electric Spiral Heating Belt Silicone Rubber Heating Tape Thin Pipe Heating Belt Winding Heating element

カテゴリー:

説明

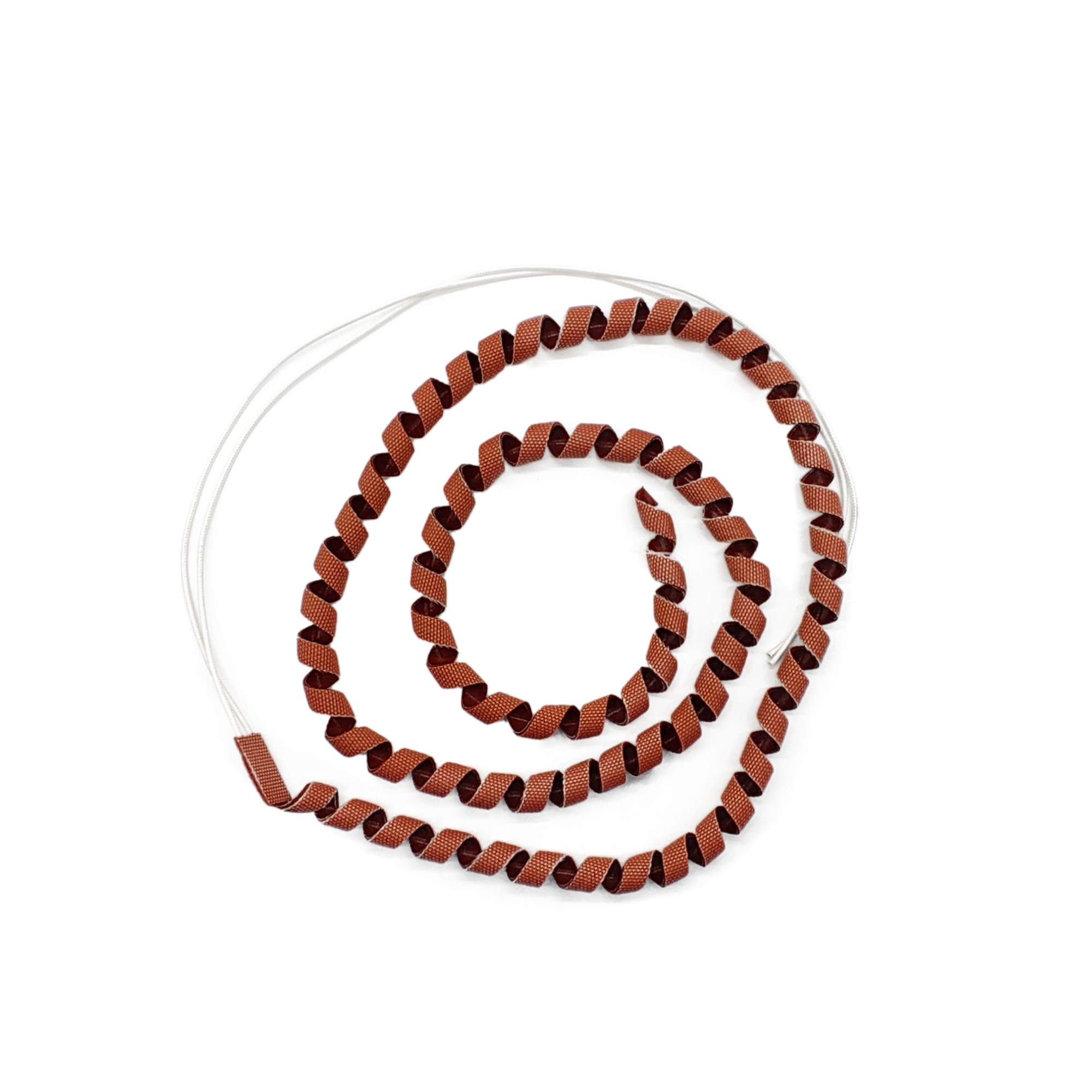

Electric Spiral Heating Belt
Adjustable Temperature Electric Spiral Heating Belt Silicone Rubber Heating Tape Thin Pipe Heating Belt Winding Heating element
製品説明
The spiral heating tape adopts advanced electric heating technology. The heating element inside it rapidly converts electrical energy into thermal energy after being connected to a 220V power supply. Through the elaborately designed spiral structure, the heating tape is tightly wound around the outer wall of the pipeline and can evenly release heat along the length of the pipeline. During this process, heat is transferred to the pipeline in a direct contact manner, effectively replenishing the heat lost by the pipeline in a low-temperature environment, thereby precisely maintaining the temperature of the medium inside the pipeline, ensuring the normal flow of the liquid in the pipeline, and preventing freezing caused by excessively low temperatures. This heating method has a small temperature gradient and a long thermal stability time. It can continuously and stably provide heat to the pipeline and is very suitable for long-term use.
Electric Spiral Heating Belt
Electric Spiral Heating Belt

—- Heating core: High-quality nickel-chromium alloy wire is selected as the heating source. Nickel-chromium alloy features rapid heating, high thermal efficiency and excellent oxidation resistance. —-Insulation layer: The outside is wrapped with multiple layers of alkali-free glass fiber insulation material. Alkali-free glass fiber has excellent temperature resistance and can withstand high temperatures without melting or deforming.

​—- Outerprotective layer: Some models are equipped with a protective outer protective layer, such as made of high-quality PVC orfluoroplastic materials. These materials have the characteristics of being waterproof, moisture-proof and corrosion-resistant.
仕様
Electric Spiral Heating Belt
製品仕様書

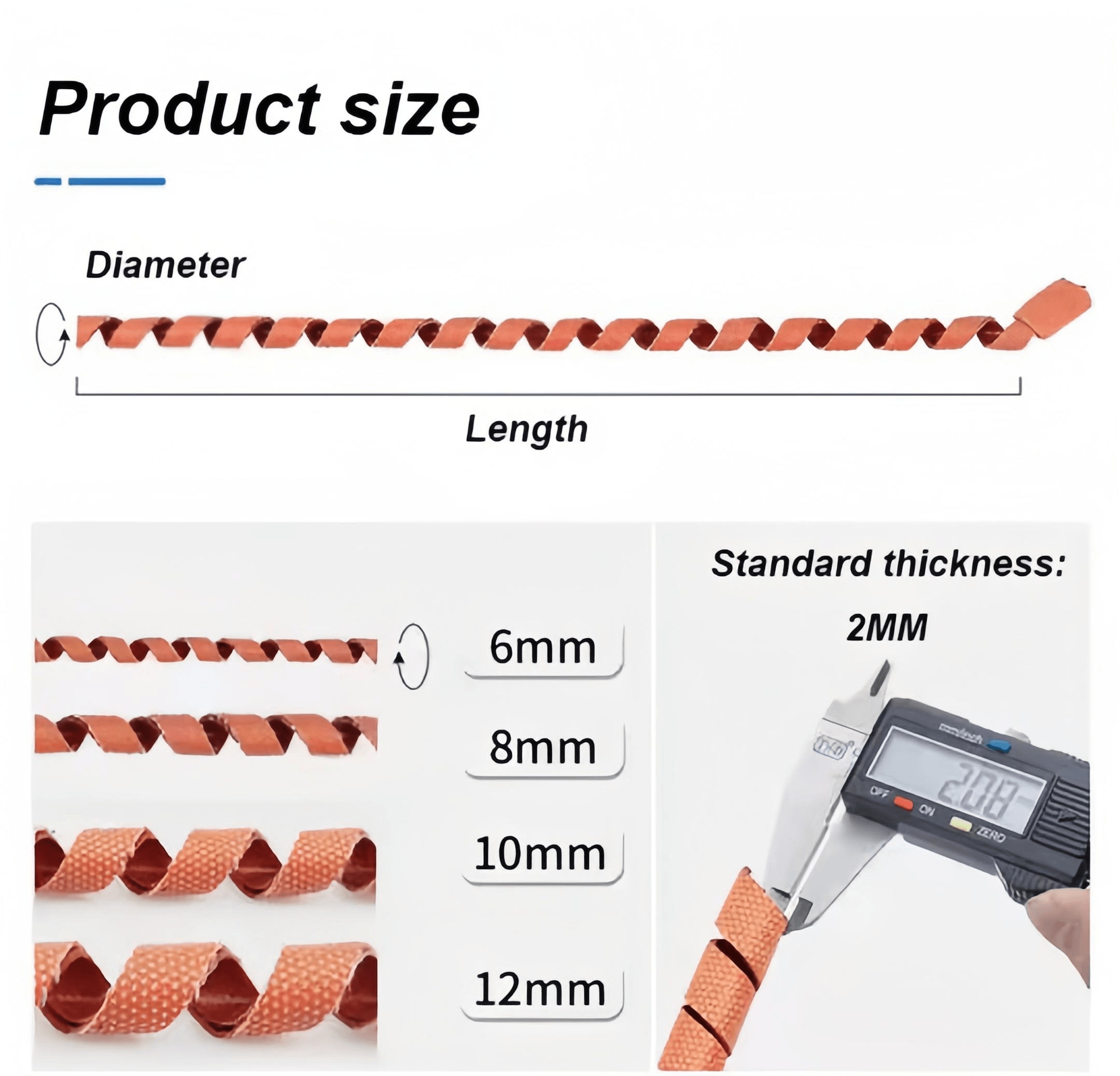

SIze
電圧
力
6*300んん
12V
20W
6*300んん
24V
20W
6*300んん
220V
20W
6*500んん
12V
30W
6*500んん
24V
30W
6*500んん
220V
30W
6*800んん
12V
50W
6*800んん
24V
50w
6*800んん
220V
50W
6*1000んん
12V
60W
6*1000んん
24V
60W
6*1000んん
220V
60w
Electric Spiral Heating Belt
1. 長さ: 68.5in (1740んん), Width: 5in (125んん) ,サイズ: 55-gallons (208L)2: 厚さ :1.5mm-1.8mm3. Electric resistance precision: ±10%( bigger value selected)4. Power density: 0.10~1.50w/cm²5. Mechanical pressure: 100.00kg/cm²6. Minimum bending radius: 3.20んん

Products advantage

1:Heating, insulation, frost and moisture2:Strong Thermal conductivity3:Uniform temperature, safe and durable useing4:Accurate temperature control, good fixing effect of elastic connection5:application : Industrial equipment, pipelines, barrels, tanks, 等.
インストール手順
Electric Spiral Heating Belt
Electric Spiral Heating Belt
パッキング & 配達
Electric Spiral Heating Belt
Electric Spiral Heating Belt
carton box, wooden case
会社概要
Taizhou YuLing electrical appliance co.,ltd is a heating element manufacurer in China,江蘇省.
Yuling is professional in heating industrial more than 40 年,yuling can provide desinging andproducing heating elements.
yuling has received ISO system certification and CE CQC UL ROHS product testing certification. Our range of products is primarily sold in the European and American markets.
We employ stringent quality control measures to ensure the superior quality of our products, and implement impeccable Standard Operating Proceduresto enhance production efficiency, ultimately guaranteeing optimal benefits for our valued customers.
よくある質問

1. 私たちは誰ですか?私たちは江蘇省に拠点を置いています, 中国, 2010年から開始、オセアニアに販売(50.00%),北米(30.00%),南アメリカ(10.00%),南ヨーロッパ(10.00%). 我々は持っています 500 ㎡のオフィスと 8000 工場の㎡. 2. 品質を保証するにはどうすればよいですか?量産前には必ず試作サンプルを作成します;出荷前に必ず最終検査を行う;3.私たちから何を購入できますか?カートリッジヒーター/キャストインヒーター/サーキュレーションヒーター/エンジンブロックヒーター/オープンコイルヒーター, フィン付きヒーター/ストリップヒーター/発熱体4. 他のサプライヤーからではなく当社から購入すべき理由?1.より多い 40 年の経験

2.UL CE RoHS CQC ISO9001:2008
3.R&Dチーム
4.テストレポートを提供する
5.製品設計のサポート5. 私たちが提供できるサービス?受け入れられた配送条件: FOB,CFR,CIF,EXW,DDU,速達便；受け入れられる支払い通貨 : 米ドル, ユーロ,人民元;受け入れられる支払いタイプ: T/T,信用状,D/P D/A,マネーグラム,クレジットカード,ペイパル,ウエスタンユニオン,現金,預託;話される言語:英語,中国語,フランス語
