25mmx19mm Rtd Sensors PT100 Self-Adhesive Polyimide Fast Response Surface Mount Stick on RTD Sensor 260C 3 ワイヤー 4 ワイヤー
25mmx19mm Rtd Sensors PT100 Self-Adhesive Polyimide Fast Response Surface Mount Stick on RTD Sensor 260C 3 ワイヤー 4 ワイヤー
説明

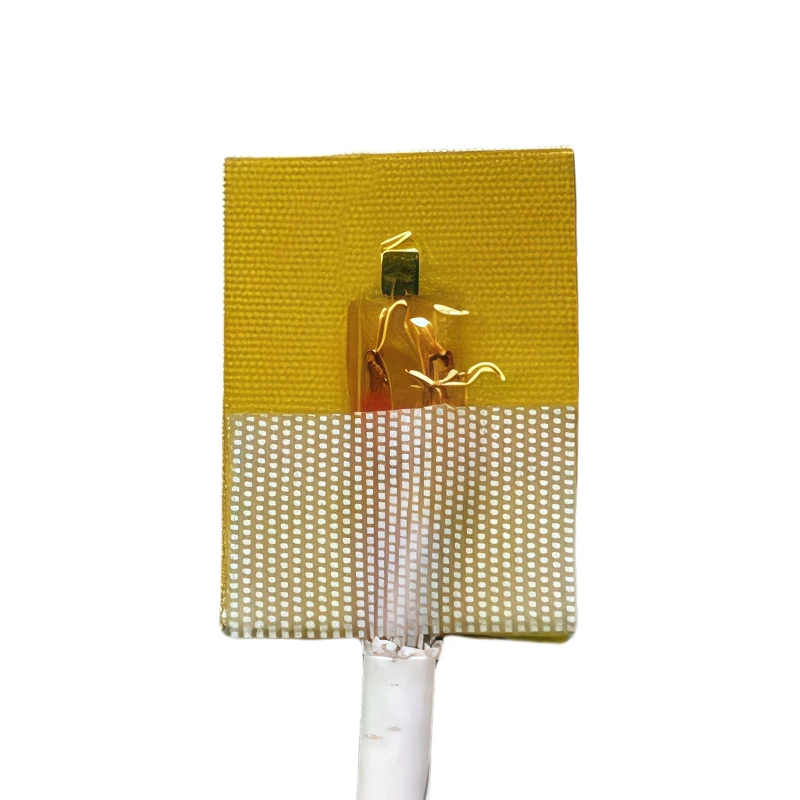

25mmx19mm Rtd Sensors PT100 Self-Adhesive Polyimide Fast Response Surface Mount Stick on RTD Sensor 260C 3 ワイヤー 4 ワイヤー
製品説明
The surface-mount RTD temperature sensor mounts on flat or curved surfaces and provides Class A accuracy for critical temperature monitoring applications. Based on a 2 x 2 x 0.8 mm thin-film platinum RTD and supplied with bare 3-wire leads as a standard configuration (connector optional), it can be customized for use in a wide variety of applications. The sensor can be easily applied with its self adhesive backing, Use the Sensor to monitor chip, heat sink, and environmental temperatures in electronic devices; check piping or ducting temperatures;monitor motor and transformer core heat; test insulation capabilities; and check other applications in which surface and/or gradient temperatures need to be monitored or controlled.
サイズ:25mm*19mm
材料:Polyimide
Element: Pt100(A class, B class, 1/3B class)
ワイヤー :1.4メートル(customized size)+ 3ワイヤー
仕様
商品名 | Stainless steel PT100 RTD Temperature Sensor |
モデル | PT100 (K/E/J/T/CU50 optional） |
Defalut Size | 25*19んん |
正確さ | クラスB / Class A/ Class 2B, PT1000 Class 1/3 B |
Probe Length | 50んん, 100んん, 150んん, 200んん, 250んん, 300んん, 400んん, 500mm optional |
Wire Material | 3 Wire Teflon shield silver plated copper wire （Waterproof Silicone rubber/glass fiber optional） |
Wire Length | 0.5M/1M/2M/3M optional |
Temp range | PT100 -50℃-200℃CU50 -50℃-150℃K 0℃—600℃E 0℃—400℃ |
Terminals | U type Terminals , mini connectors |
Product Advantage:1)High Precision Temperature control probe2)Accurate measurement accuracy, high sensitivity, wide measurement range 0-500℃3)Accurate measurement (imported chip)4)早い反応,anti-interference5)優れた耐熱性
Different end user are avaliable
Other mode are avaliable, feel free to contact us
パッキング & 配達
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
