Name: 0-1800 High Temperature Platinum Thermocouple Temperature Sensor B/S/R/K for Furnace Heating - A Pioneering Force In Electrical Heating Industry
Price: 105.00 USD
Availability: InStock

説明

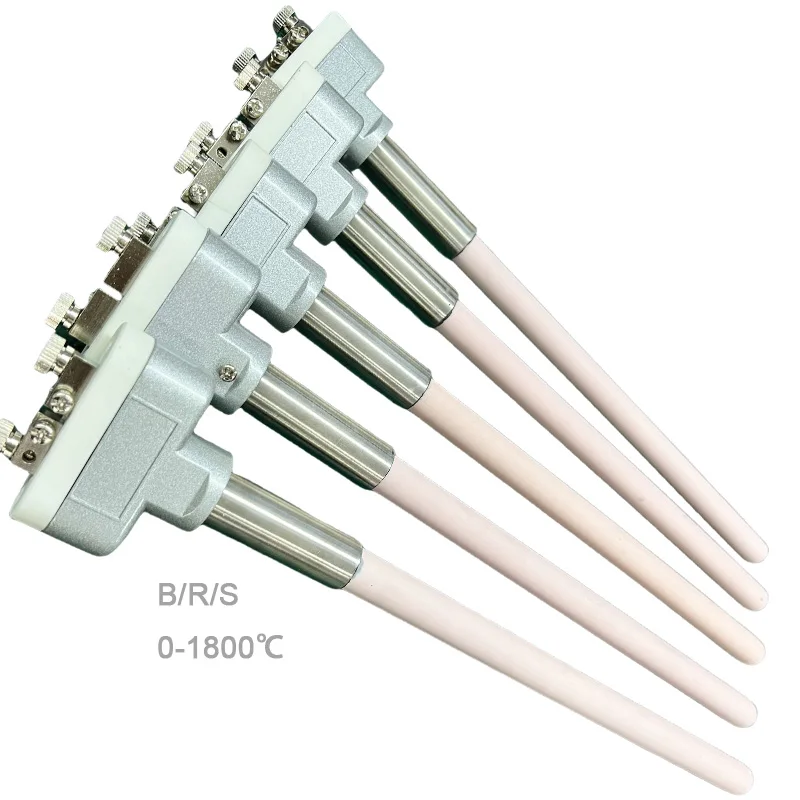

0-1800 High Temperature Platinum Thermocouple Temperature Sensor B/S/R/K for Furnace Heating

製品説明

Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, セラミックス. It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, 等.

仕様

商品名	白金ロジウム熱電対
タイプ	S/R/B
材料	99% 高温コランダムチューブ, またはGH3039高温合金チューブまたはSIC保護チューブ
セラミックチューブ	OD φ8mm

Features1. Easy assembly and convenient for replacement2. Spring thermal element with good shock-proof performance3. Wide measuring range4. High mechanical strength, good pressure-resistant performance

ConductorMaterial	タイプ	卒業	Continuous using temperature	Short-term using temperature
PtRh10-Pt	WRP	S	0-1300C	0-1600C
PtRh30-PtRh6	WRR	B	0-1600C	0-1800C
PtRh13-Pt	WRQ	R	0-1300C	0-1600C
NiCrSi-NiSi	WRM	N	0-1000C	0-1100C
NiCr-NiSi	警告	K	0-900C	0-1000C
NiCr定数	WRE	E	0-600C	0-700C
鉄定数	WRF	J	0-500C	0-600C
ウィズコンスタンタン	WRC	T	0-350C	0-400C
